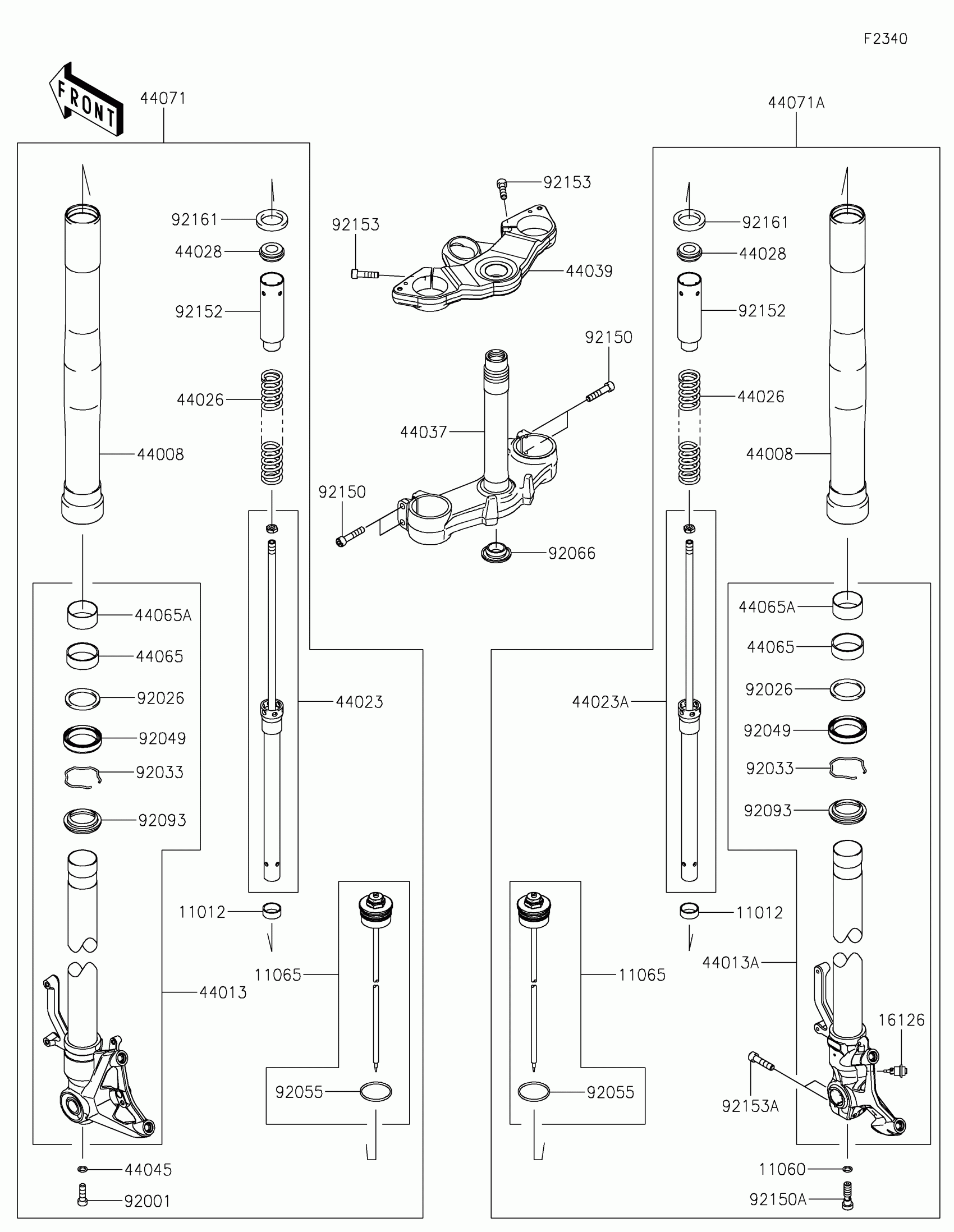

Kawasaki NINJA® 1000SX Front Fork Diagram

#

Description
Price

11012

CAP

11012-1761

$34.90

11060

GASKET,FORK CYLINDER BOLT

11060-1180

$3.69

11065

CAP,FORK BOLT COMP,GRAY

11065-0372-11G

$112.15

16126

VALVE,FORK

16126-0031

$178.97

44008

PIPE-FORK OUTER,GRAY

44008-0053-11G

$471.45

44013

PIPE-FORK INNER,LH

44013-0345

$480.28

44013A

PIPE-FORK INNER,RH

44013-0346

$480.28

44023

CYLINDER-SET-FORK,LH

44023-0142

$444.85

44023A

CYLINDER-SET-FORK,RH

44023-0166

$452.85

44026

SPRING-FRONT FORK

44026-0153

$91.35

44028

GUIDE-FORK SPRING

44028-1083

$9.34

44037

HOLDER-FORK UNDER

44037-0169

$571.24

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0105-18R

$321.19

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

$20.55

44065A

BUSHING-FRONT FORK

44065-0036

$20.83

44071

DAMPER-ASSY,FORK,LH

44071-1395

$990.14

44071A

DAMPER-ASSY,FORK,RH

44071-1396

$990.14

92001

BOLT,FORK CYLINDER

92001-1464

$6.22

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0125

$26.40

92055

RING-O

92055-0131

$5.65

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0035

$25.59

92150

BOLT,SOCKET

92150-1512

Unavailable

92150A

BOLT,FORK CYLINDER

92150-1514

$6.69

92152

COLLAR

92152-0263

$15.20

92153

BOLT,SOCKET,8X30

92153-0500

$10.86

92153A

BOLT,SOCKET

92153-0537

$10.16

92161

DAMPER

92161-0418

$7.68
