Description

Price

11056

BRACKET,FR,LH

11056-0358

$45.08

11056A

BRACKET,FR,RH

11056-0359

$45.08

11056B

BRACKET,HELMET LOCK

11056-2657

$7.59

11057

BRACKET

11057-0428

$7.89

11057A

BRACKET,ABS UNIT

11057-0429

$8.08

11057B

BRACKET,REGULATOR

11057-0430

$24.24

11065

CAP

11065-1335

$12.50

13042

WEIGHT,STEP STAY

13042-5013

$46.57

23062

BRACKET-COMP,ABS

23062-0785

$65.53

32052

BRACKET-TANK

32052-0719

$39.06

32097

CASE-BATTERY

32097-0562

$105.64

35063

STAY,FR,LH,F.S.BLACK

35063-0726-18R

$124.32

35063A

STAY,FR,RH,F.S.BLACK

35063-0905-18R

$143.68

35063B

STAY,RR,RH,F.S.BLACK

35063-0907-18R

$123.90

35063C

STAY,GRIP,LH

35063-1358

$196.23

35063D

STAY,GRIP,RH

35063-1359

$196.23

35063E

STAY,RR,LH,F.S.BLACK

35063-1387-18R

$128.82

39156

PAD,LH

39156-0660

$9.64

39156A

PAD,RH

39156-0661

$9.64

39156B

PAD,TOOL BOTTOM

39156-0752

$4.06

39156C

PAD,STEP STAY,FR,LH

39156-2637

$32.74

39156D

PAD,STEP STAY,FR,RH

39156-2638

$32.74

53004

MAT,BATTERY

53004-0560

$9.09

53044

TRIM

53044-0565

$3.35

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92072

BAND,L=100

92072-071

$9.53

92086

WIRE,HELMET LOCK

92086-0019

$18.96

92092

BUSHING-RUBBER,8.4X20X18

92092-1018-SP

$15.96

92150

BOLT,6X20

92150-1339

$4.39

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92152

COLLAR,6.1X8.1X9

92152-1782

$5.48

92153

BOLT,6X18

92153-0816

$2.15

92153A

BOLT,SOCKET,8X20

92153-1621

$2.15

92153B

BOLT,SOCKET,8X30

92153-1624

$3.90

92154

BOLT,SOCKET,6MM

92154-0800

$6.26

92154A

BOLT,SOCKET,8X30

92154-2313

$3.57

92154B

BOLT,SOCKET,8X20

92154-2314

$2.44

92154C

BOLT,SOCKET,8X60

92154-2649

$7.60

92161

DAMPER,STEP STAY

92161-0942

$5.05

92161A

DAMPER,12.5X21X2

92161-0943

$2.67

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,8X16

132BA0816

$4.32

92161B

DAMPER,12.5X20X4

92161-0944

$3.02

92161C

DAMPER,8.2X16X8.3

92161-1584

$1.71

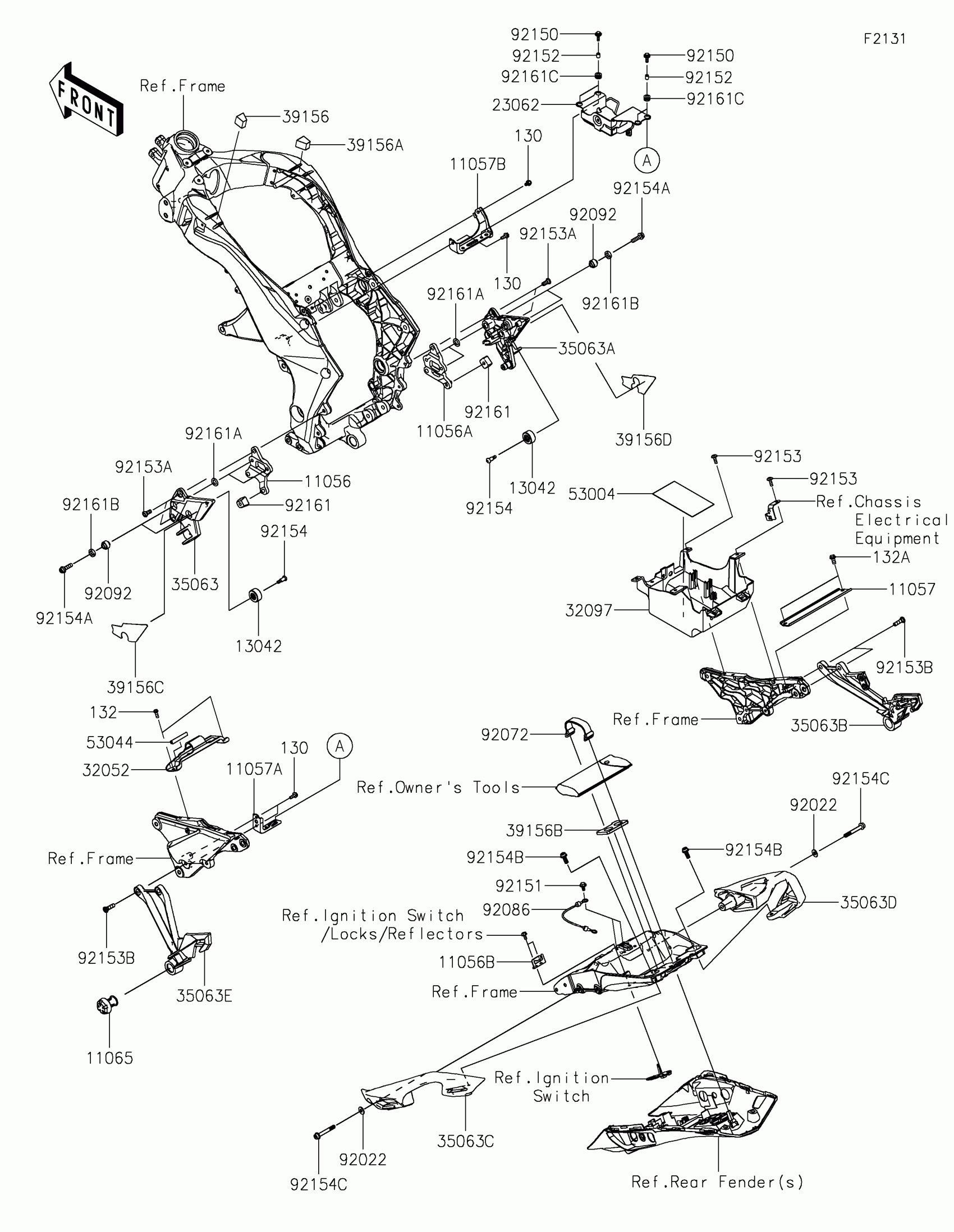

Kawasaki NINJA® 1000SX Frame Fittings Diagram

BRACKET,FR,LH

BRACKET,FR,RH

BRACKET,HELMET LOCK

BRACKET

BRACKET,ABS UNIT

BRACKET,REGULATOR

CAP

WEIGHT,STEP STAY

BRACKET-COMP,ABS

BRACKET-TANK

CASE-BATTERY

STAY,FR,LH,F.S.BLACK

STAY,FR,RH,F.S.BLACK

STAY,RR,RH,F.S.BLACK

STAY,GRIP,LH

STAY,GRIP,RH

STAY,RR,LH,F.S.BLACK

PAD,LH

PAD,RH

PAD,TOOL BOTTOM

PAD,STEP STAY,FR,LH

PAD,STEP STAY,FR,RH

MAT,BATTERY

TRIM

WASHER,8.5X20X1.6,BLACK

BAND,L=100

WIRE,HELMET LOCK

BUSHING-RUBBER,8.4X20X18

BOLT,6X20

BOLT,FLANGED,6X13

COLLAR,6.1X8.1X9

BOLT,6X18

BOLT,SOCKET,8X20

BOLT,SOCKET,8X30

BOLT,SOCKET,6MM

BOLT,SOCKET,8X30

BOLT,SOCKET,8X20

BOLT,SOCKET,8X60

DAMPER,STEP STAY

DAMPER,12.5X21X2

BOLT-FLANGED,6X14

BOLT-FLANGED-SMALL,6X16

BOLT-FLANGED-SMALL,8X16

DAMPER,12.5X20X4

DAMPER,8.2X16X8.3
