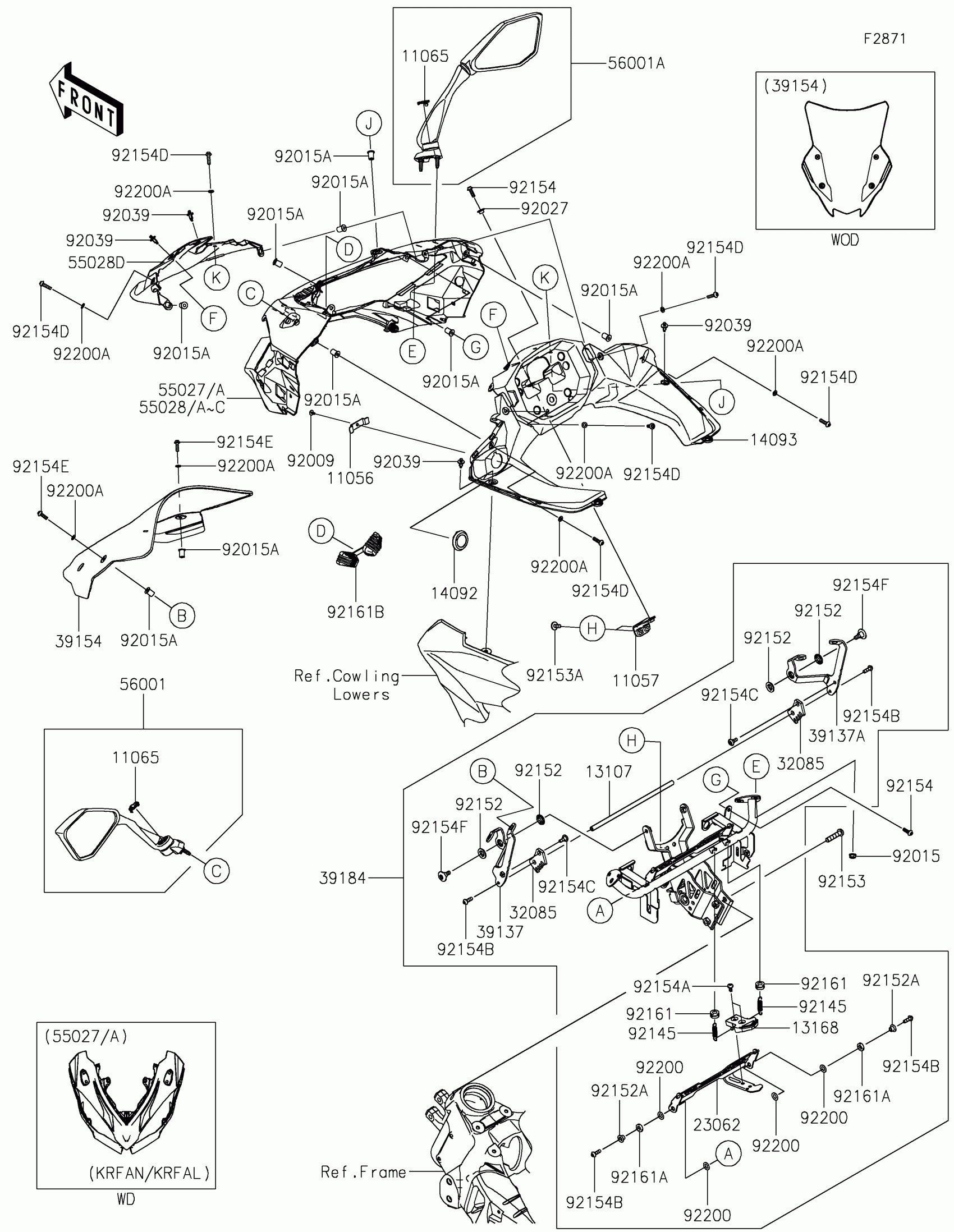

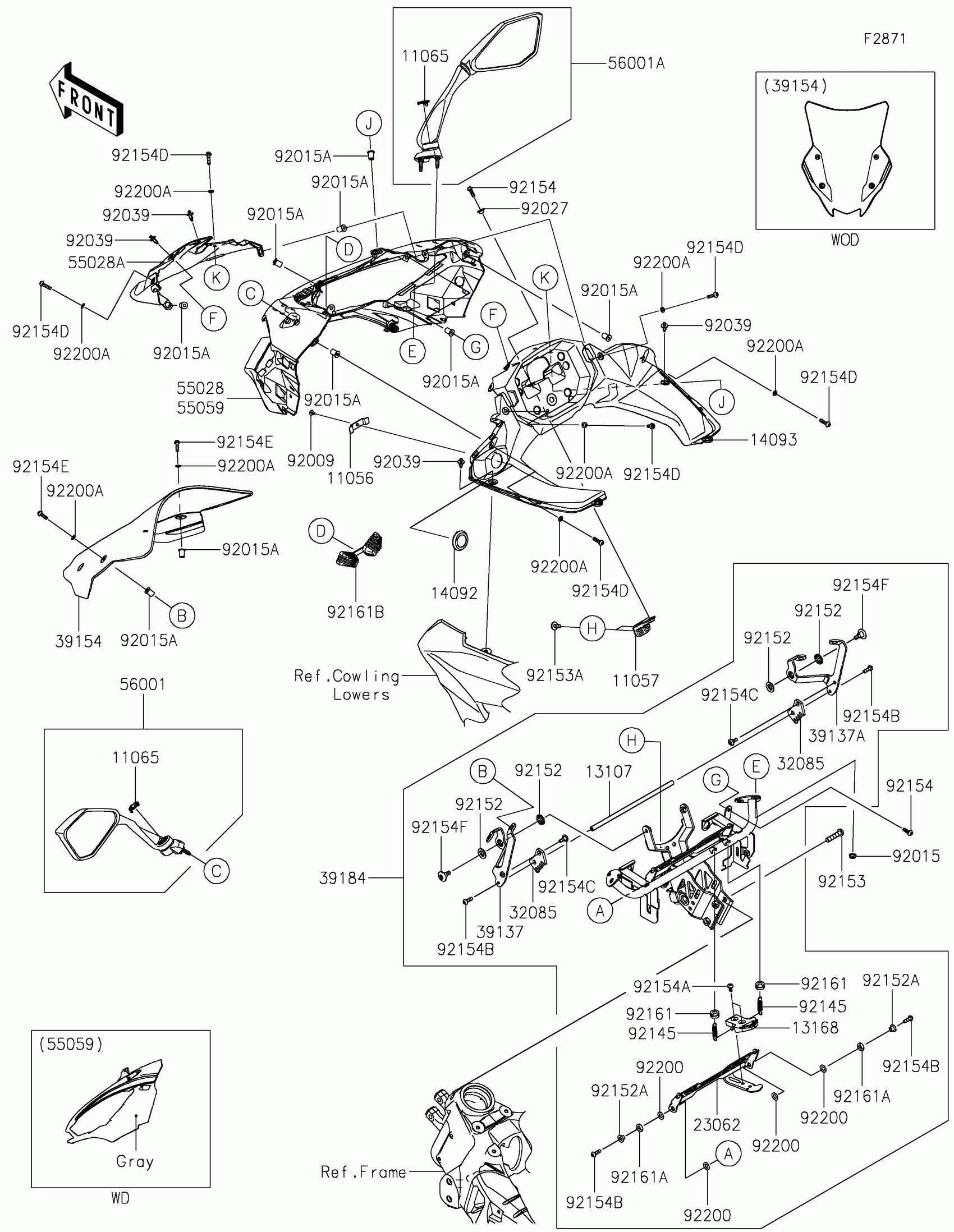

Kawasaki NINJA® 1000SX Cowling Diagram

#

Description
Price

11056

BRACKET

11056-0373

$3.74

11057

BRACKET,METER COVER

11057-0403

$7.68

11065

CAP,MIRROR

11065-0945

$2.30

13107

SHAFT

13107-0241

$66.73

13168

LEVER,ADJUST

13168-0211

$15.61

14092

COVER,DC SOCKET

14092-0214

$6.57

14093

COVER,METER

14093-0965

$149.46

23062

BRACKET-COMP

23062-0136

$54.62

32085

STOPPER

32085-0865

$15.30

39137

STAY-COMP,LH

39137-0670

$44.67

39137A

STAY-COMP,RH

39137-0671

$44.67

39154

WINDSHIELD

39154-0391

$139.72

39184

BRACKET-ASSY,WINDSHIELD

39184-0739

$490.95

55028A

COWLING,FR

55028-0621

$64.49

55059

COWLING,UPP,M.G.GRAY

55059-5145-45W

$477.08

56001

MIRROR-ASSY,LH

56001-0259

$99.27

56001A

MIRROR-ASSY,RH

56001-0260

$99.27

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR

92027-1880

$4.69

92039

RIVET

92039-0068

$2.97

92145

SPRING

92145-0805

$3.32

92152

COLLAR,10X20X3.75

92152-0913

$17.91

92152A

COLLAR,5.6X8X7.8

92152-1506

$1.19

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92153A

BOLT,SOCKET,6X14

92153-1021

$2.67

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,SOCKET,5X16

92154-0287

$2.41

92154C

BOLT,SOCKET,5X14

92154-0427

$3.35

92154D

BOLT,SOCKET,5X20

92154-0919

Unavailable

92154E

BOLT,SOCKET,5X18

92154-1945

$1.71

92154F

BOLT,SOCKET,6X18

92154-2316

$7.84

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER,8.2X15X3

92161-0998

$1.19

92161B

DAMPER

92161-1886

$11.30

92200

WASHER,8.2X15X1

92200-0742

$1.63

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63
