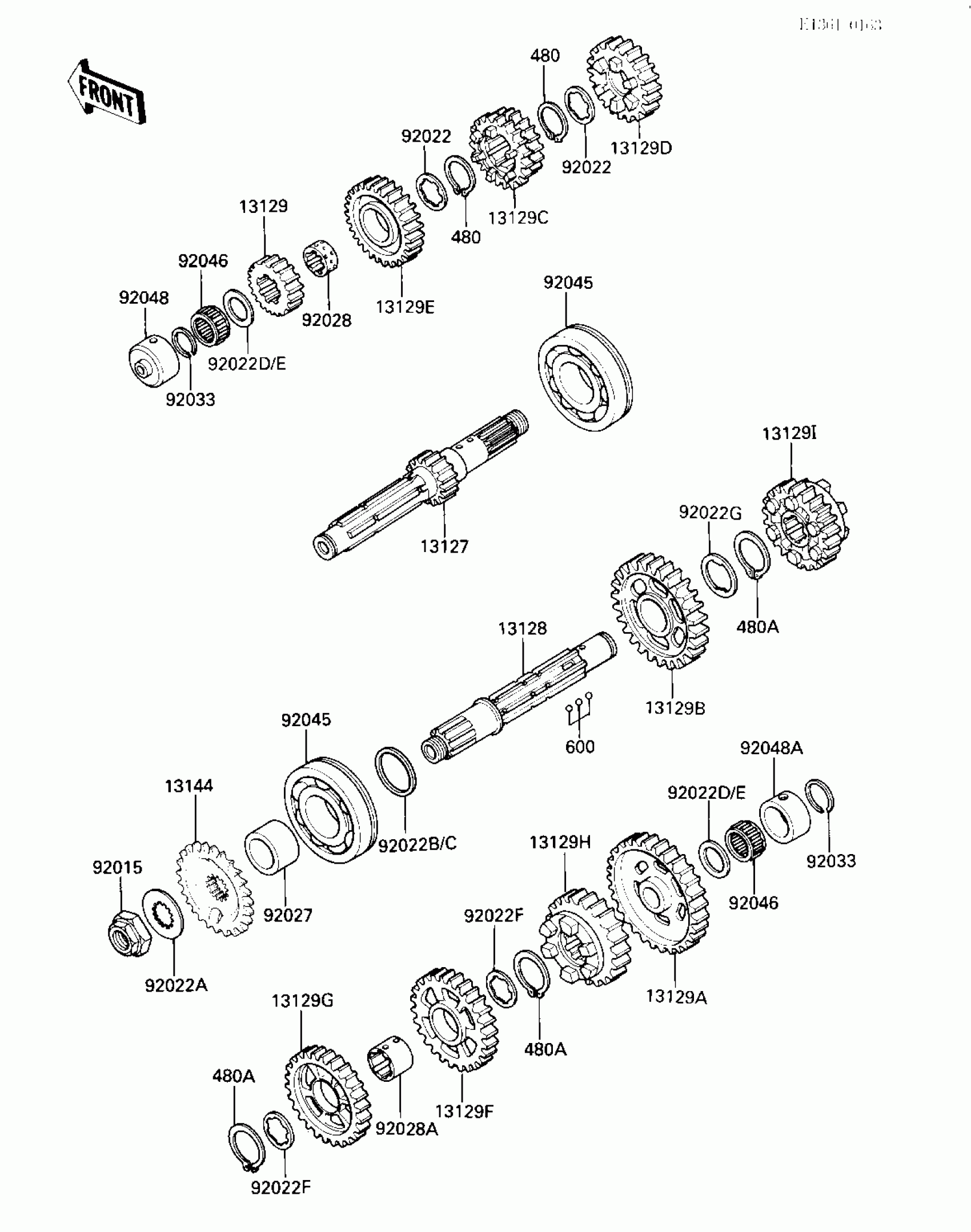

Kawasaki Ninja® 1000R TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1196

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1113

Unavailable

13129

GEAR,INPUT 2ND,19T

13129-1530

Unavailable

13129A

GEAR,OUTPUT LOW,42T

13129-1534

$227.28

13129B

GEAR,OUTPUT 2ND,38T

13129-1535

Unavailable

13129C

GEAR,INPUT 3RD&4TH,24T&22T

13129-1664

$224.53

13129D

GEAR,INPUT 5TH,26T

13129-1665

$190.50

13129E

GEAR,INPUT TOP,28T

13129-1666

Unavailable

13129F

GEAR,OUTPUT 3RD,35T

13129-1669

Unavailable

13129G

GEAR,OUTPUT 4TH,32T

13129-1670

Unavailable

13129H

GEAR,OUTPUT 5TH,30T

13129-1671

Unavailable

13144

SPROCKET-OUTPUT,15T

13144-1123

Unavailable

92015

NUT,20MM

92015-1210

$18.81

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$11.07

92022A

WASHER

92200-1060

$6.07

92022B

WASHER,28.3X34X0.5

92022-1572

Unavailable

92022C

WASHER,28.3X34X0.3

92022-1626

Unavailable

92022D

WASHER,22.3X35X1.6

92022-212

$9.91

92022E

WASHER,22.3X35X1.2

92022-213

Unavailable

92022F

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

92022G

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

92027

COLLAR

92143-1431

$26.90

92028

BUSHING,TOP GEAR

92028-1124

$45.48

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

$45.49

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92045

BEARING-BALL

92045-1186

$64.88

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92048

RACE,INPUT SHAFT

92048-1052

$55.84

92048A

RACE,30X38X15

92048-1053

$28.71

480

UNAVAILABLE IN PRICE BOOK

480J0800

Unavailable

480A

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81
