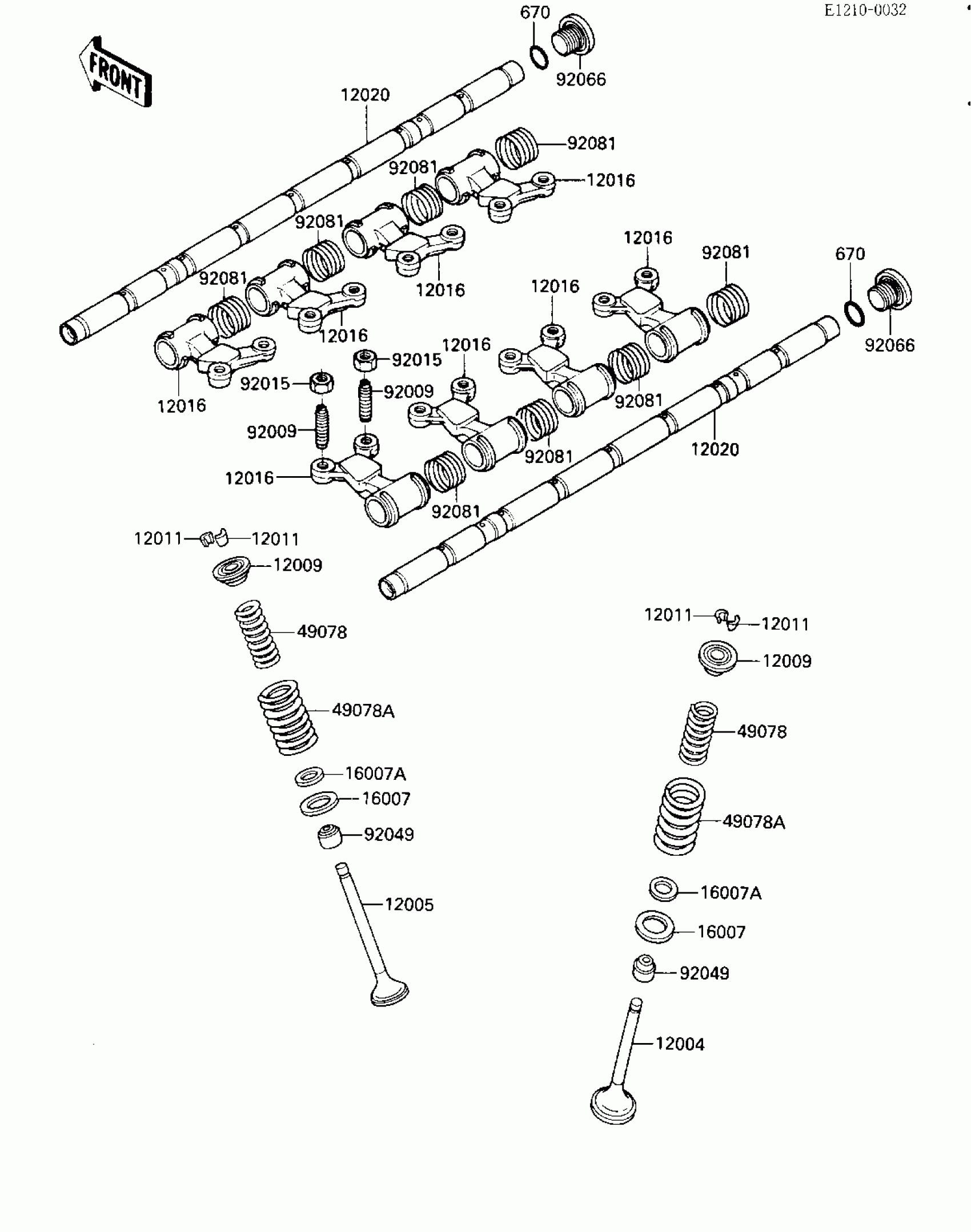

Kawasaki Ninja® 1000R ROCKER ARMS/VALVES Diagram

Description

Price

12004

VALVE-INTAKE

12004-1079

$51.77

12005

VALVE-EXHAUST

12005-1052

$73.78

12009

RETAINER-VALVE SPRING

12009-1054

$10.86

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER

12016-1051

Unavailable

12020

SHAFT-ROCKER,L=343

12020-1051

$91.50

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1144

$6.16

16007A

SEAT-SPRING,12.1X16.2X0.5

16007-1143

$5.54

49078

SPRING-ENGINE VALVE,INNER

49078-1067

$16.56

49078A

SPRING-ENGINE VALVE,O

49078-1069

$17.75

92009

SCREW,7MM

92009-1279

$10.62

92015

NUT,7MM

92015-1325

$5.00

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13

92066

PLUG,14X11.5

92066-1192

$24.61

92081

SPRING,ROCKER ARM

92081-1636

$15.76

670

O RING,15MM

670B2015

$1.42
