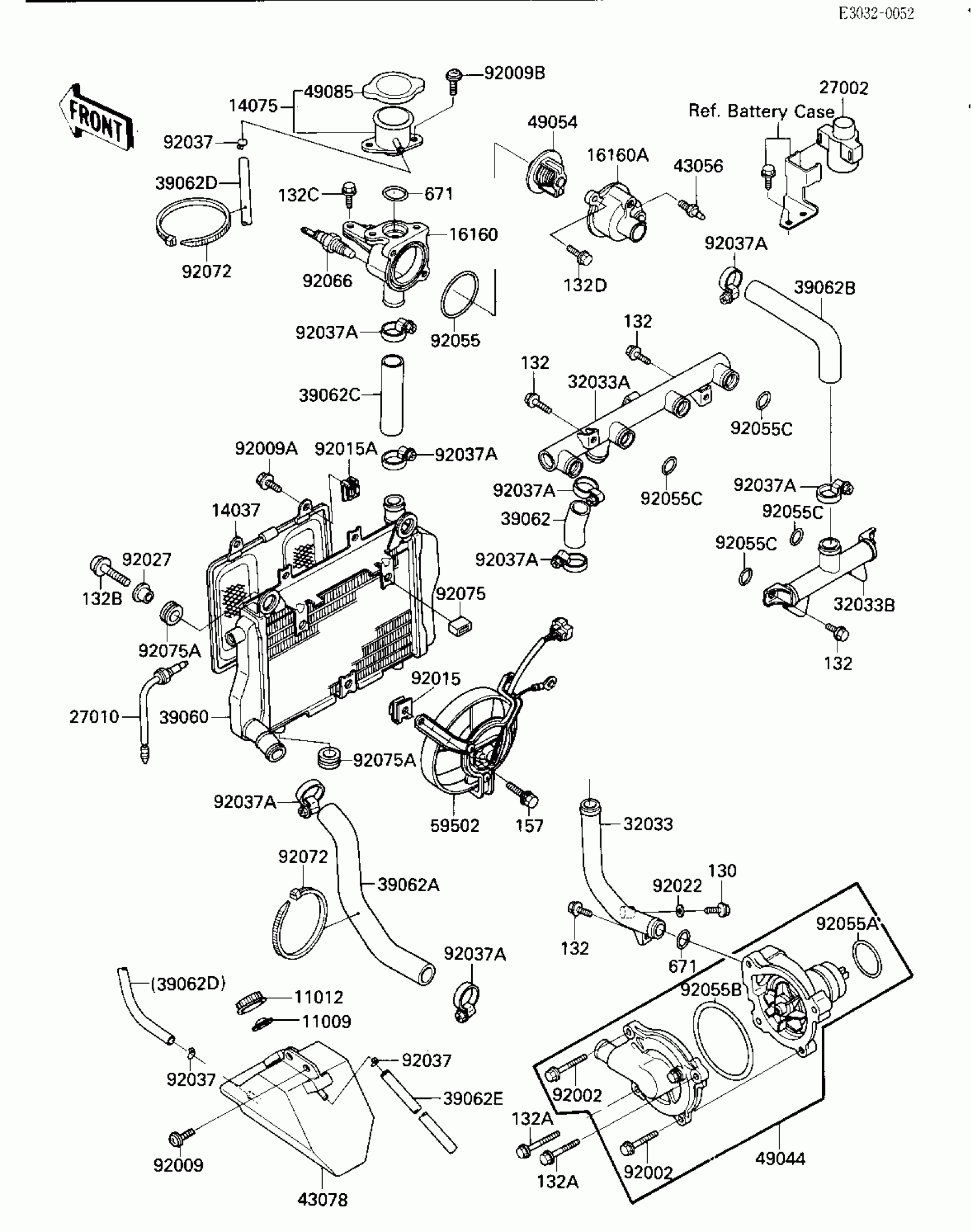

Kawasaki Ninja® 1000R RADIATOR/FAN/WATER PUMP (E/NO. 003102-) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

14037

SCREEN,RADIATOR

14037-1070

$96.85

14075

CAP-ASSY,RADIATOR

14075-1062

$137.73

16160

BODY

16160-1100

$69.80

16160A

BODY

16160-1111

$54.76

27002

RELAY-ASSY

27002-1054

Unavailable

27010

SWITCH,FAN

27010-1180

$134.14

32033

PIPE-WATER

39192-1028

$130.02

32033A

PIPE

32033-1262

$142.80

32033B

PIPE

32033-1846

Unavailable

39060

RADIATOR

39060-1063

Unavailable

39062

HOSE-COOLING

39062-1072

$21.55

39062A

HOSE-COOLING

39062-1117

$73.69

39062B

HOSE-COOLING

39062-1118

$81.75

39062C

HOSE-COOLING

39062-1119

$15.05

39062D

HOSE-COOLING,5.5X10.5

39062-1121

$23.32

39062E

HOSE-COOLING,5.5X10.5X1500

39062-1144

$37.82

43056

BREATHER

43056-003

$20.11

43078

RESERVOIR

43078-1063

$78.95

49044

PUMP-WATER

49044-1058

Unavailable

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1053

$32.91

59502

FAN-ASSY

59502-1056

Unavailable

92002

BOLT,6X22

92002-1392

$4.73

92009

SCREW

92009-1258

$5.59

92009A

SCREW,TAPPING,6MM

92009-1261

$2.14

92009B

SCREW,6X14

92009-1288

$2.99

92015

NUT

92015-1487

$4.80

92015A

NUT,6MM

92015-1582

$5.11

92022

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR,FUEL TANK FITT

92027-1134

$10.28

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,COOLING HOSE

92037-1985

$6.34

92055

RING-O,53.5X2.6

92055-112

$6.63

92055A

RING-O,33.8MM

92055-1266

$20.41

92055B

RING-O,WATER PUMP

92055-1271

$11.07

92055C

RING-O

92055-1282

$5.24

92066

PLUG,SENSOR WATER

92066-1183

$66.41

92072

BAND,L=365

92072-1197

$7.84

92075

DAMPER

92075-1446

$4.69

92075A

DAMPER

92160-1007

$5.52

130

BOLT-FLANGED

130J0610

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

132B

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

132C

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

132D

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

157

BOLT-WSP

157J0616

$1.08

671

O RING,25MM

671B2525

$5.00
