Description

Price

13169

PLATE,CHAIN GUIDE

13169-1748

$15.45

21007

ROTOR,PULSING COIL

21007-1109

$52.38

21119

IGNITER

21119-1164

$732.15

21121

COIL-IGNITION,#1

21121-1137

$201.88

21121A

COIL-IGNITION,#2

21121-1138

$201.88

21160

CAP-ASSY-PLUG

21160-1065

$60.68

59026

COIL-PULSING

59026-1073

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,ROTOR

92200-1173

$9.59

92037

CLAMP,L=200

92037-1576

$8.40

92070A

SPARK PLUG D8EA

D8EA

$3.46

92070C

SPARK PLUG D7EA

D7EA

$3.62

92070D

PLUG-SPARK,DR8ES(NGK)

92070-1019

$9.44

92070F

PLUG-SPARK,D9EA(NGK)

92070-1034

$3.62

92070I

PLUG-SPARK,DR7ES(NGK)

92070-1113

Unavailable

92070J

PLUG-SPARK,DR8ES-L(NGK)

92070-1116

$3.62

92075

DAMPER,IGNITER

92075-1504

$37.12

120

BOLT-SOCKET,8X25

120P0825

$1.92

130

BOLT-FLANGED,5X12

130G0512

$2.19

132

BOLT-FLANGED-SMALL

132G0612

$1.17

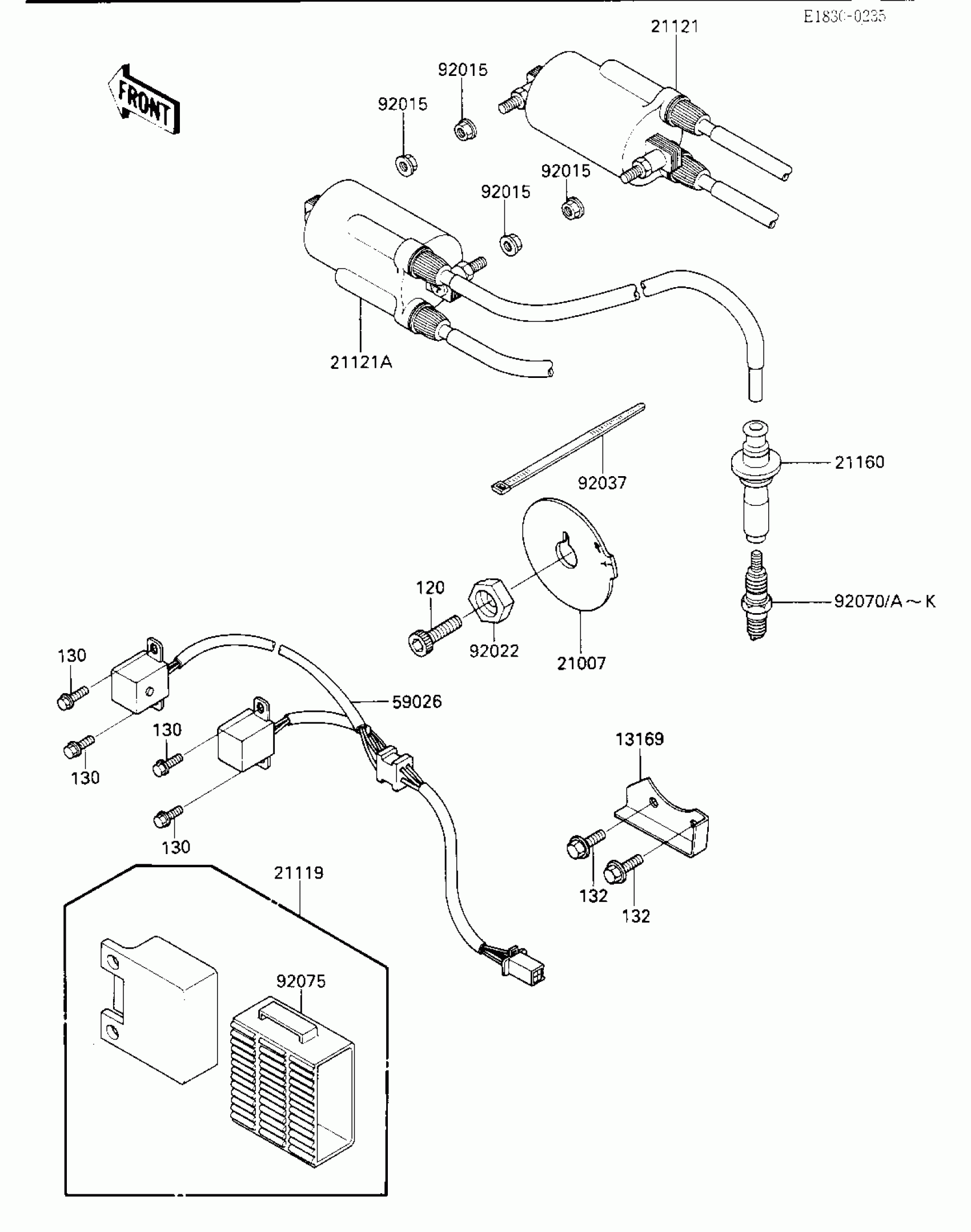

Kawasaki Ninja® 1000R IGNITION Diagram

PLATE,CHAIN GUIDE

ROTOR,PULSING COIL

IGNITER

COIL-IGNITION,#1

COIL-IGNITION,#2

CAP-ASSY-PLUG

COIL-PULSING

NUT,FLANGED,6MM

WASHER,ROTOR

CLAMP,L=200

SPARK PLUG D8EA

SPARK PLUG D7EA

PLUG-SPARK,DR8ES(NGK)

PLUG-SPARK,D9EA(NGK)

PLUG-SPARK,DR7ES(NGK)

PLUG-SPARK,DR8ES-L(NGK)

DAMPER,IGNITER

BOLT-SOCKET,8X25

BOLT-FLANGED,5X12

BOLT-FLANGED-SMALL
