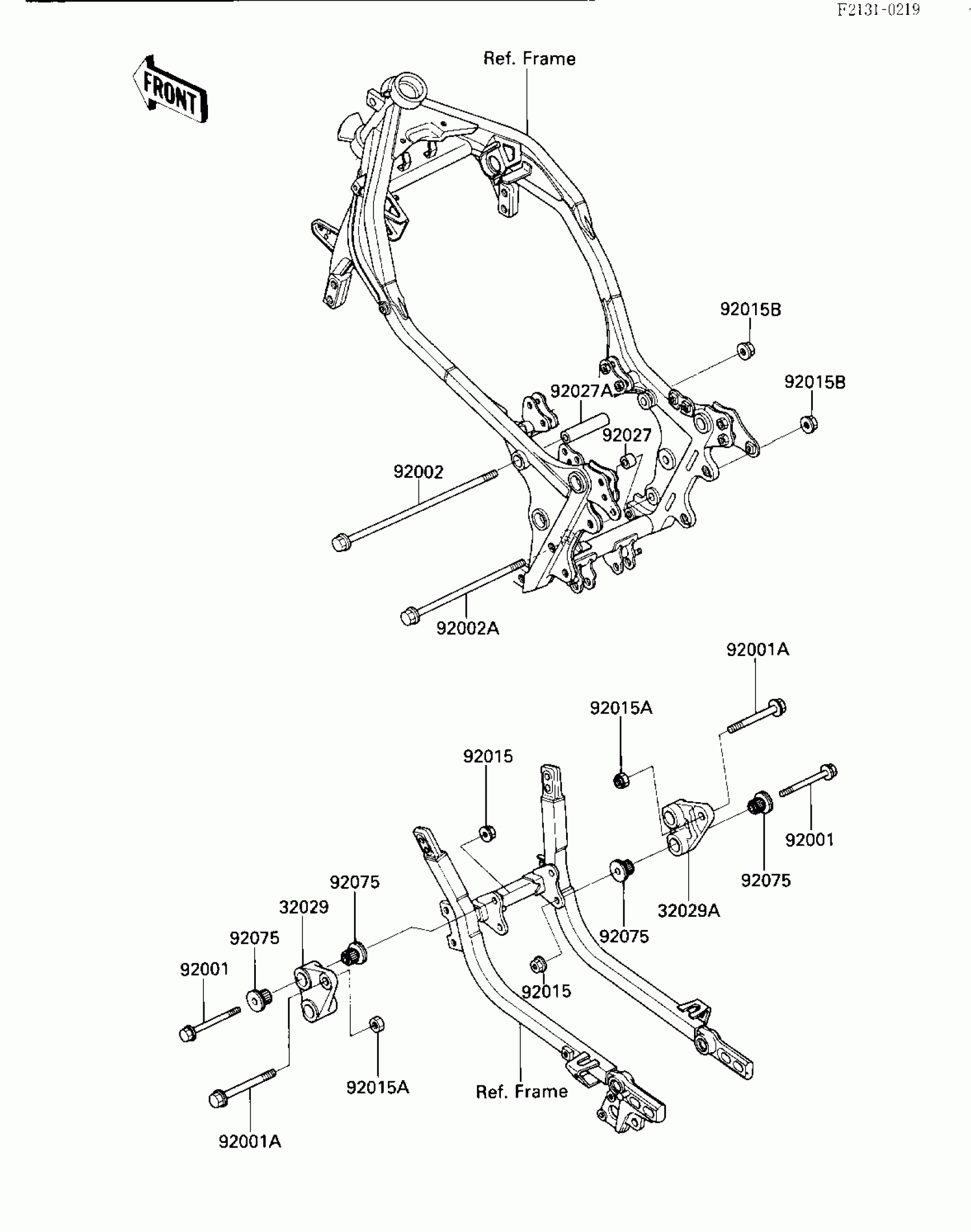

Kawasaki Ninja® 1000R FRAME FITTINGS Diagram

Description

Price

32029

BRACKET-ENGINE,FR,LH

32029-1396

$52.00

32029A

BRACKET-ENGINE,FR,RH

32029-1397

$59.42

92001

BOLT,FLANGED,8X60

92001-1581

$5.14

92001A

BOLT,FLANGED,10X60

92001-1599

$8.52

92002

BOLT,FLANGED,10X295

92002-1519

$17.63

92002A

BOLT,FLANGED,10X230

92002-1520

Unavailable

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT,10MM

92015-1429

$6.88

92015B

NUT,FLANGED,10MM

92015-1502

$10.28

92027

COLLAR,10.5X23X20

92027-1893

Unavailable

92027A

COLLAR,10.5X23X70

92027-1894

$21.09

92075

DAMPER,ENGINE MOUNT

92075-1721

Unavailable
