1987 Kawasaki Ninja® 1000R Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

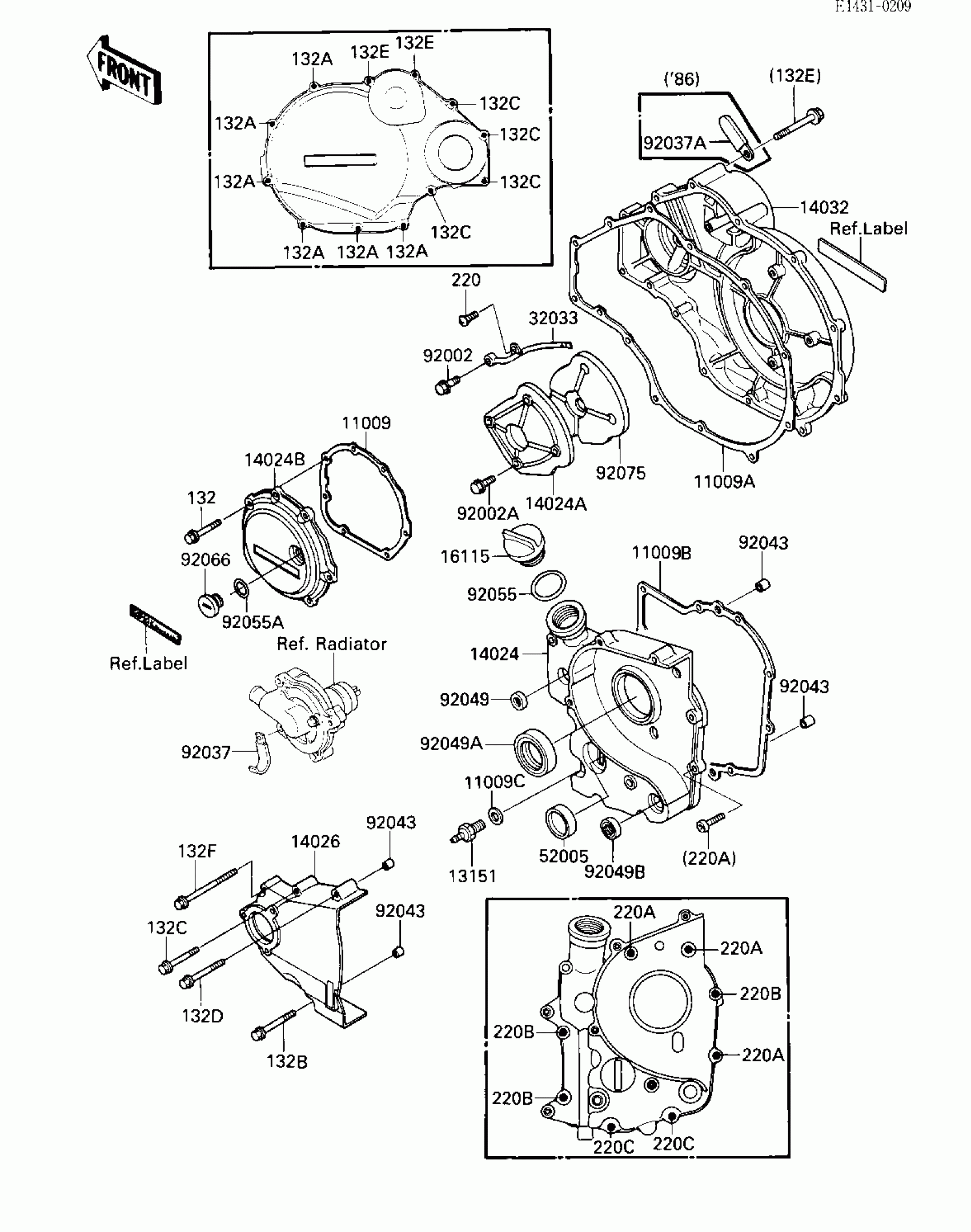

1987 Kawasaki Ninja® 1000R Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,COVER,LH

11009-1863

1
Out of stock

11009A

GASKET,CLUTCH COVER

11009-1860

1
Out of stock

11009B

GASKET,TRANSMISSION COVER

11009-1982

1
Out of stock

11009C

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

14024

COVER,TRANSMISSION

14024-1716

1
Out of stock

14024A

COVER,SOUND ARRESTER

14025-1740

1
Out of stock

14024B

COVER,PULSING

14024-1721

1
Out of stock

14026

COVER-CHAIN

14026-1121

1
Out of stock

14032

COVER-CLUTCH

14032-1194

1

$398.19

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

32033

PIPE,CLUTCH COVER

32033-1204

1

$31.22

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

92002

BOLT,BANJO,8X20

92001-1855

1

$8.44

In stock

92002A

BOLT,6X10

92002-1541

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92049B

SEAL-OIL,TB13205

92049-1186

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,COVER

92066-1163

1

$11.67

In stock

92075

1

$138.78

In stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X55

132J0655

1
Out of stock

132F

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220A

1

$4.61

In stock

220B

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

220C

1

$1.19

In stock
