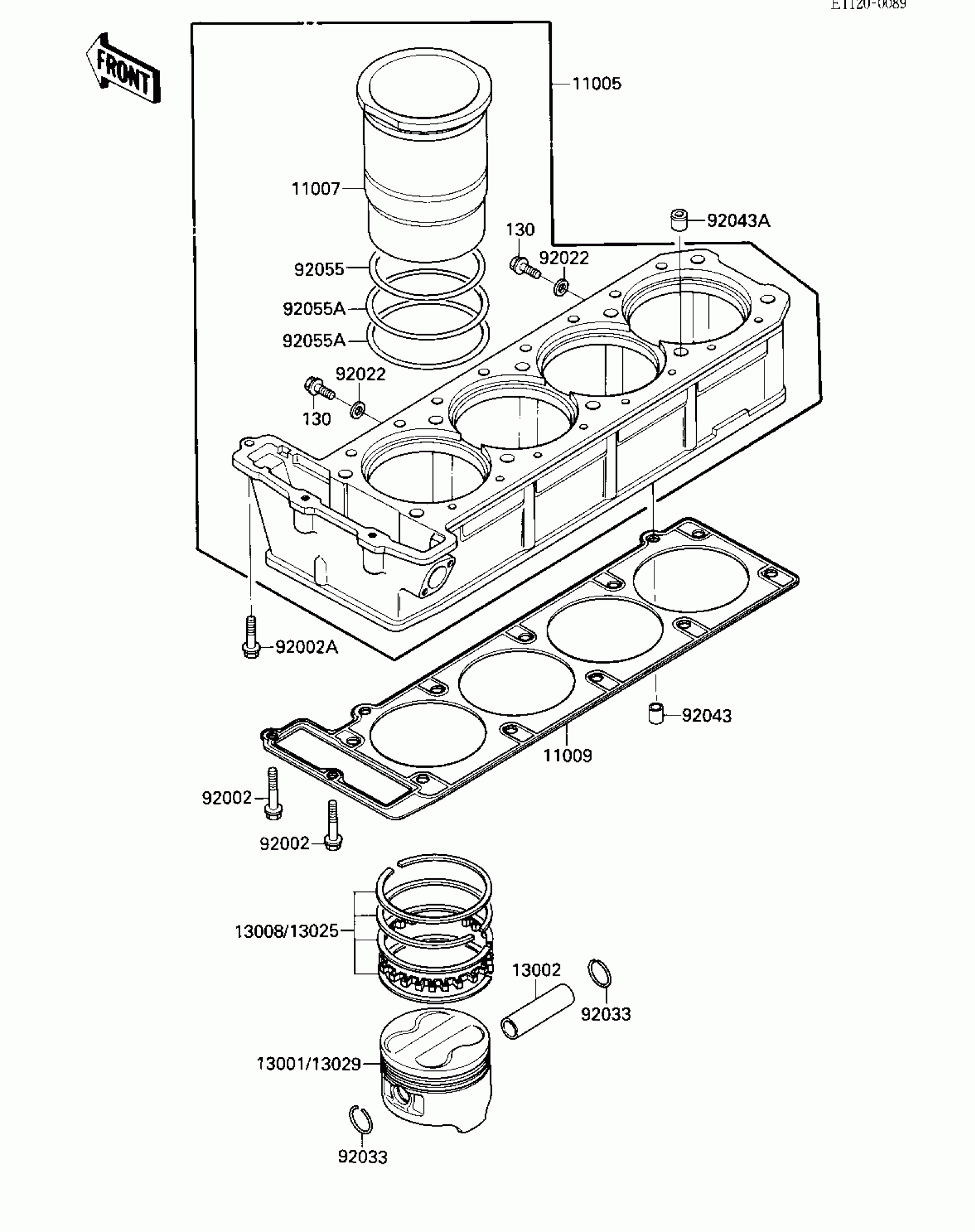

Kawasaki Ninja® 1000R CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1430

$1,588.01

11007

LINER-CYLINDER

11007-1076

$145.44

11009

GASKET,CYLINDER BASE

11009-1505

Unavailable

13001

PISTON-ENGINE,STD

13001-1197

$117.37

13002

PIN-PISTON

13002-1058

$28.34

13008

RING-SET-PISTON,STD

13008-1066

$72.04

13025

RING-SET-PISTON L,O/S 0.50

13025-1065

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1132

$117.37

92002

BOLT,6X38

92001-1899

$4.39

92002A

BOLT,FLANGED,M6X30

92002-1138

$4.34

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,78MM

92055-1229

$20.98

92055A

RING-O,80.6X2.4

92055-1247

$13.07

130

BOLT-FLANGED,6X10

130C0610

$3.84
