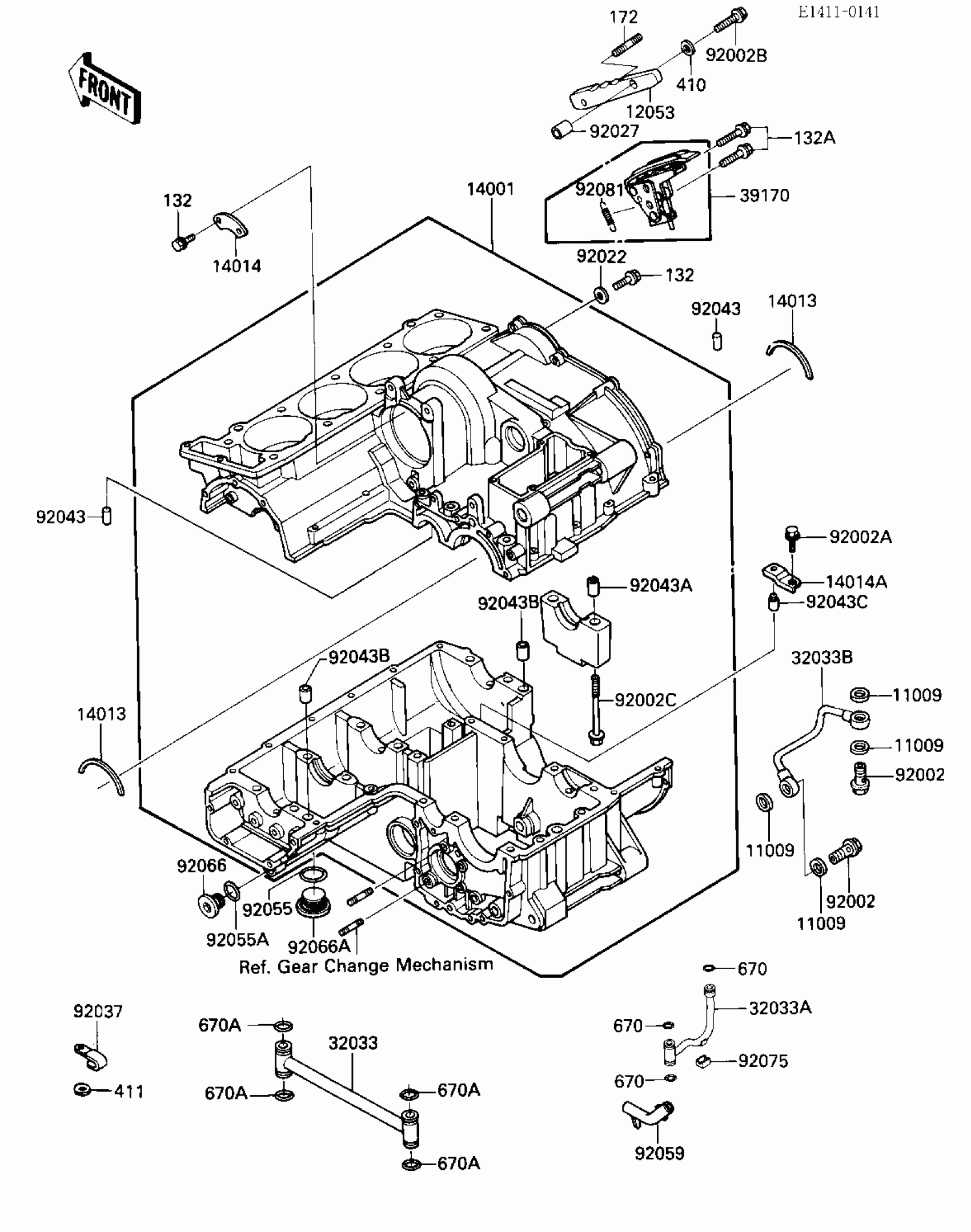

Kawasaki Ninja® 1000R CRANKCASE Diagram

#

Description
Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.85

12053

GUIDE-CHAIN

12053-1138

Unavailable

14001

SET-CRANKCASE

14001-5307

Unavailable

14013

RING-POSITION,T=1.98

14013-1005

$4.96

14014

PLATE-POSITION

14014-1056

$14.10

14014A

PLATE-POSITION,BALANCER PIN

14014-1067

$16.72

32033

PIPE,MAIN GALLARY

32033-1201

$51.24

32033A

PIPE

32033-1202

$38.38

32033B

PIPE

32033-1961

$56.16

39170

TENSIONER-COMP

39170-1053

$218.08

92002

BOLT,BANJO,12X23

92001-1871

$17.13

92002A

BOLT,6X12

92002-1563

$3.32

92002B

BOLT,6X25

92002-1609

$4.73

92002C

BOLT,8X80

92002-1649

$6.69

92022

WASHER,6X19.5X2

92022-1517

$2.33

92027

COLLAR,6.2X8.1X15

92027-1079

$3.96

92037

CLAMP,L=45

92037-1539

$5.00

92043

PIN,DOWEL,6X16

92042-016

$5.00

92043A

PIN,DOWEL,12X14

92042-031

$6.57

92043B

PIN,DOWEL,10X14

92043-1037

$0.74

92043C

PIN,BALANCER

92043-1281

$9.59

92055

RING-O,25.7X2.4

92055-1136

$5.00

92055A

RING-O,20X2

92055-1146

$8.58

92059

TUBE

92059-1508

Unavailable

92066

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

$11.50

92066A

PLUG,25X8

92066-1161

$10.56

92075

DAMPER,PIPE

92075-1785

$5.05

92081

SPRING

92081-1668

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

172

BOLT-STUD,6X16

172G0616

$1.28

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN

411F0600

$1.18

670

O RING,9MM

670D1509

$4.69

670A

O RING,16MM

670D2016

$1.70
