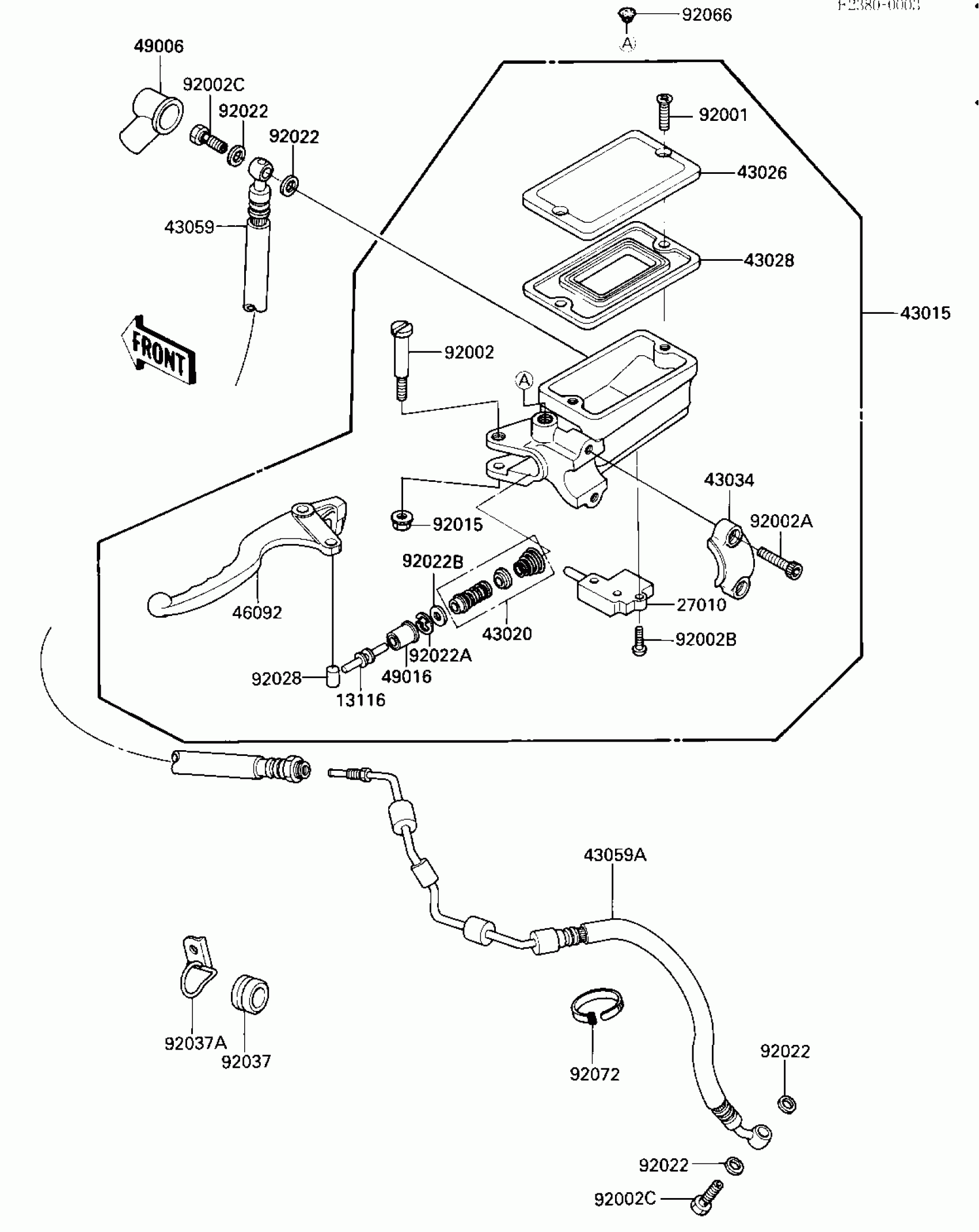

Kawasaki Ninja® 1000R CLUTCH MASTER CYLINDER Diagram

#

Description
Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

27010

SWITCH,CLUTCH

27010-1171

$36.01

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1307

$421.08

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE,FR

43026-1052

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

$35.87

43059

HOSE-BRAKE,CLUTCH

43059-1303

$41.27

43059A

HOSE-BRAKE,CLUTCH

43059-1304

$148.52

46092

LEVER-GRIP,CLUTCH

46092-1130

$25.98

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002B

SCREW,4X16

92002-1325

$7.99

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

CIRCLIP

92022-1605

$5.00

92022B

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP

92037-1717

$13.12

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92072

BAND,L=365

92072-1197

$7.84
