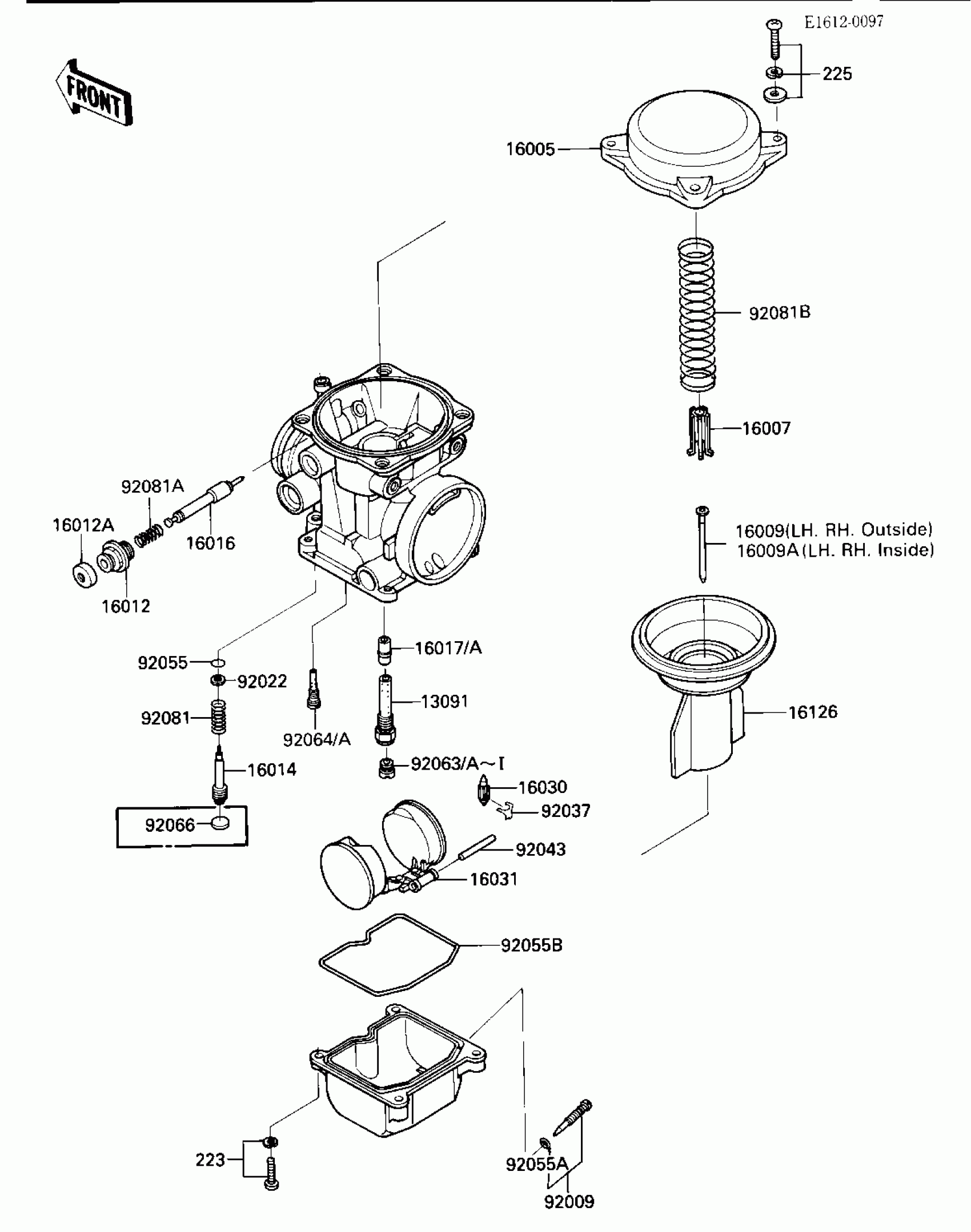

Kawasaki Ninja® 1000R CARBURETOR PARTS Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1425

$29.68

16005

TOP-CHAMBER,MIXING

16005-1054

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N36D

16009-1292

Unavailable

16009A

NEEDLE-JET,N36D

16009-1293

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER,STARTER

16016-1061

$43.41

16017

JET-NEEDLE

16017-1265

Unavailable

16017A

JET-NEEDLE,#6

16017-1266

$50.52

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1052

$74.31

16126

VALVE,VACUUM

16126-1170

$200.34

92009

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

92022

WASHER,PLAIN

92022-1003

$4.31

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92043

PIN,FLOAT

92043-1148

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O

92055-1053

$4.69

92055B

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#140

92063-1013

$14.10

92063A

JET-MAIN,#135

92063-1014

$14.10

92063B

JET-MAIN,#135

92063-1014

$14.10

92063C

JET-MAIN,#138

92063-1015

$14.10

92063D

JET-MAIN,#138

92063-1015

$14.10

92063E

JET-MAIN,#142

92063-1016

$14.10

92063F

JET-MAIN,#128

92063-1074

$14.10

92063G

JET-MAIN,#130

92063-1075

$14.10

92063H

JET-MAIN,#132

92063-1076

$14.10

92063I

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#35

92064-1101

$17.03

92064A

JET-PILOT,#32

92064-1117

$19.96

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081B

SPRING,VACUUM VALVE

92081-1983

Unavailable

223

SCREW-PAN-WS-CROS,4X16

223C0416

$4.12

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01
