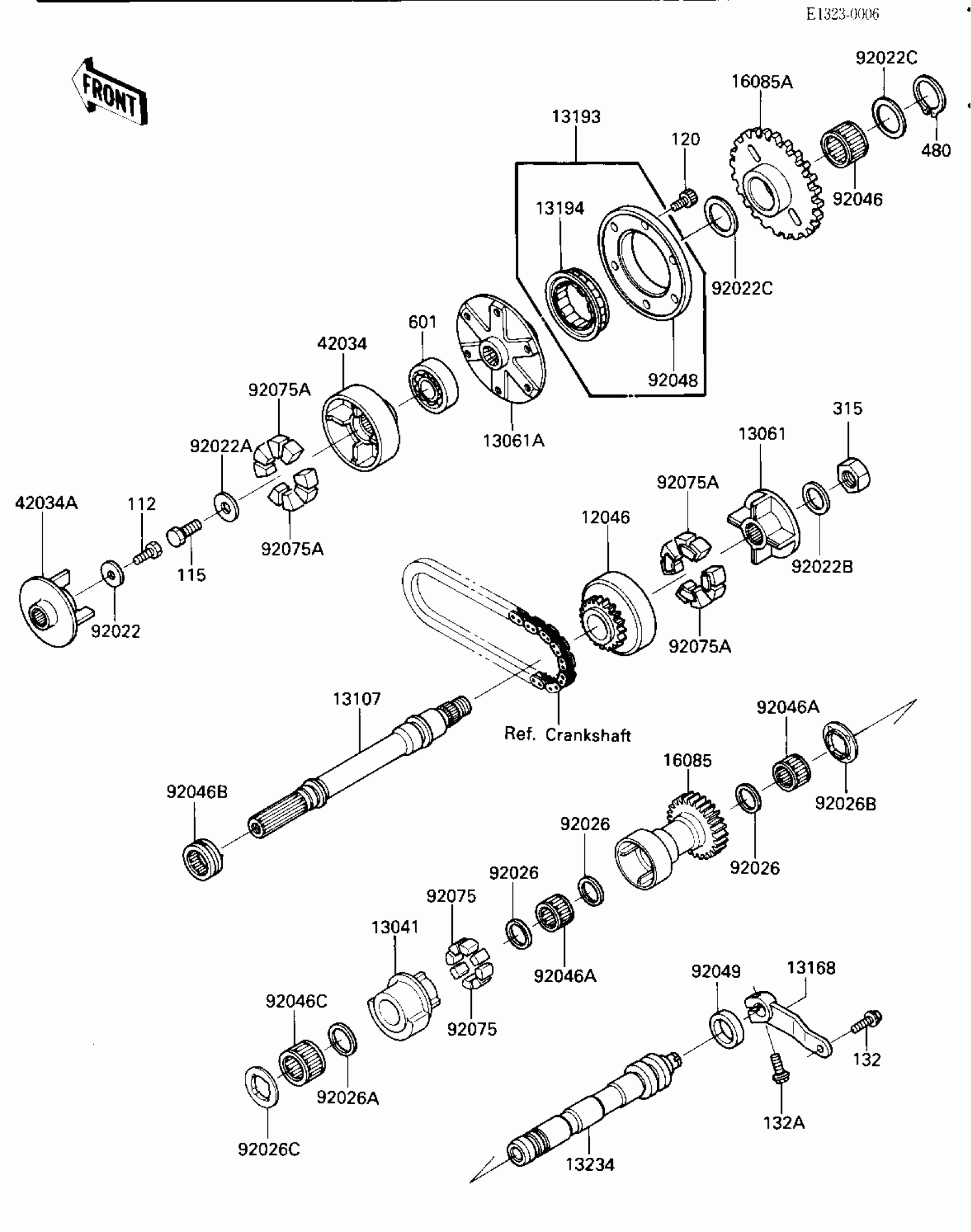

Kawasaki Ninja® 1000R BALANCER/STARTER CLUTCH (E/NO.015993-) Diagram

#

Description
Price

12046

SPROCKET,GENERATOR

12046-1068

Unavailable

13041

BALANCER

13041-1064

$156.42

13061

BOSS,SPROCKET

13061-1111

Unavailable

13061A

BOSS,COUPLING

13061-1191

Unavailable

13107

SHAFT

13107-1108

$204.72

13168

LEVER,BALANCER

13168-1236

$32.58

13194

CLUTCH-ONEWAY

13194-1067

Unavailable

13234

SHAFT-COMP,BALANCER

13234-1052

Unavailable

16085

GEAR,BALANCER

16085-1139

$150.81

16085A

GEAR,ONEWAY CLUTCH

16085-1173

$118.87

42034

COUPLING

42034-1055

$83.37

42034A

COUPLING

42034-1056

$75.76

92022

WASHER,6X19.5X2

92022-1517

$2.33

92022A

WASHER,8X22X3

92022-1518

$4.43

92022B

WASHER,16X26X2

92022-1519

$5.57

92022C

WASHER,25.3X32X0.5

92022-225

$5.52

92026

SPACER,21.3X24.3X1.5

92026-1213

$6.45

92026A

SPACER,21.3X26X1

92026-1223

$7.60

92026B

SPACER

92026-1265

$40.86

92026C

SPACER

92026-1271

$40.86

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92046A

BEARING-NEEDLE,K21X25X17V2

92046-1105

$21.80

92046B

BEARING-NEEDLE,RNA4903

92046-1109

$46.27

92046C

BEARING-NEEDLE

92046-1155

$28.94

92048

RACE,ONEWAY CLUTCH

92048-1065

$78.73

92049

SEAL-OIL,S192705

92049-1174

$8.43

92075

DAMPER,BALANCER

92075-1709

$5.59

92075A

DAMPER,COUPLING

92075-1790

$9.59

112

BOLT-UPSET,6X16

112G0616

$1.10

115

BOLT,8X20

115G0820

$5.14

120

BOLT-SOCKET,6X12

120P0612

$1.60

132

BOLT-FLANGED-SMALL,6X16

132J0616

$2.33

132A

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

315

NUT-HEX-FINE

315G1600

$4.37

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

601

BEARING-BALL,#6203

601A6203

$14.12
