Description

Price

41068

AXLE,RR

41068-1354

$116.29

41073

WHEEL-ASSY,RR,G.BLACK

41073-0186-18F

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-0028

$237.91

42036

SLEEVE,RR HUB,L=23

42036-1251

$26.21

42041

SPROCKET-HUB,41T

42041-0095

$82.99

92004

STUD,10X19

92004-0028

$8.92

92022

WASHER,23X32X2.3

92022-1618

$6.22

92027

COLLAR,RR AXLE,L=28

92027-1810

$32.00

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,RR AXLE

92033-1156

$4.96

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92049A

SEAL-OIL

92049-1287

$13.08

92057

CHAIN,DRIVE,EK525ZX-112L

92057-0203

$382.45

92058

JOINT-CHAIN,DRIVE

92058-0027

$14.17

92152

COLLAR,RR AXLE,LH,L=18

92152-0118

$7.87

92152A

COLLAR,RR AXLE,RH,20X28X14.5

92152-0876

$25.16

92152B

COLLAR,RR HUB,20.2X28X144.5

92152-0892

$30.10

92161

DAMPER,SHOCK,RR HUB

92161-0342

$26.13

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

601

BEARING-BALL

601B6205UU

$29.62

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48

671

O RING,60MM

671B2560

$6.91

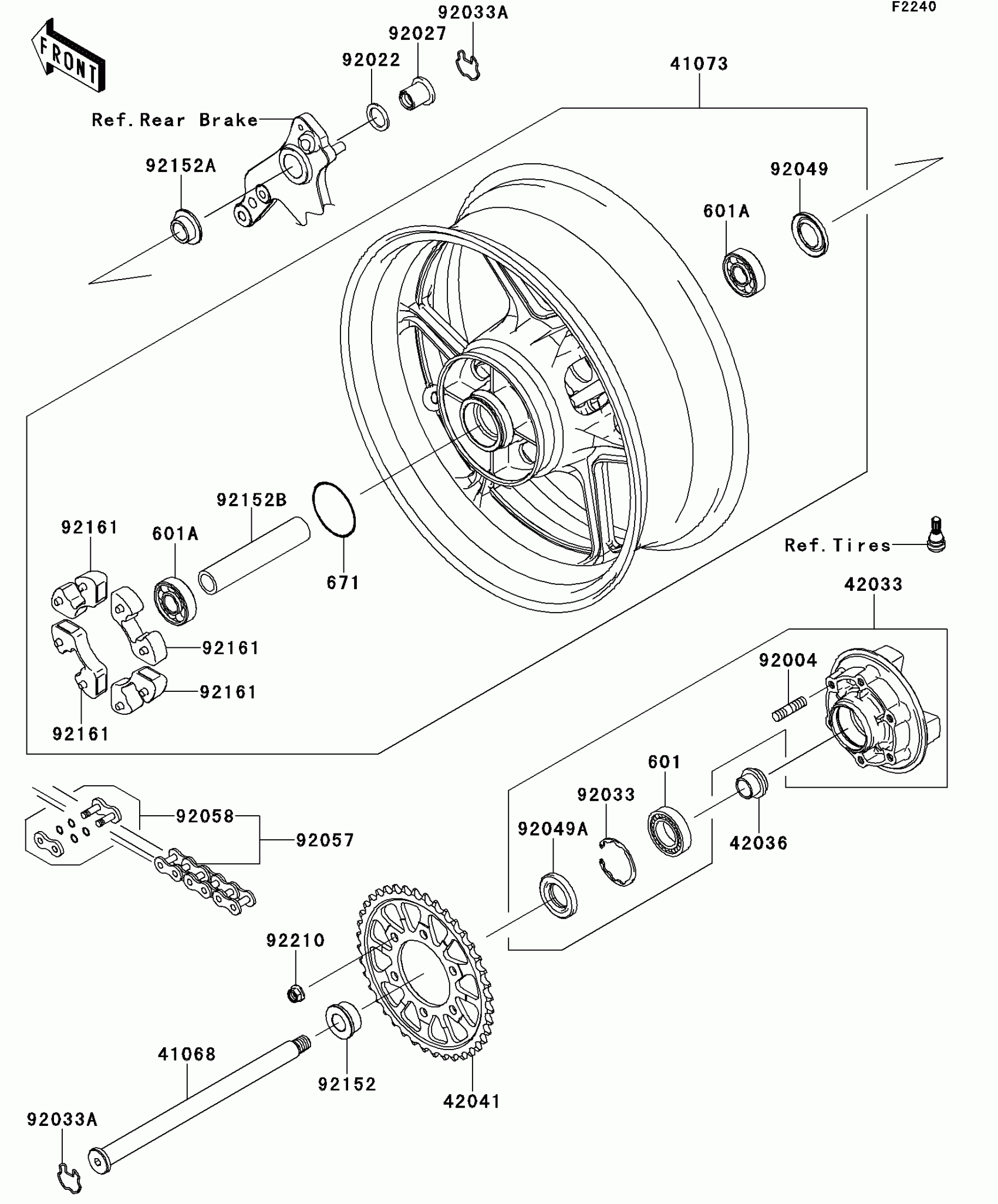

Kawasaki NINJA® 1000 Rear Wheel/Chain Diagram
