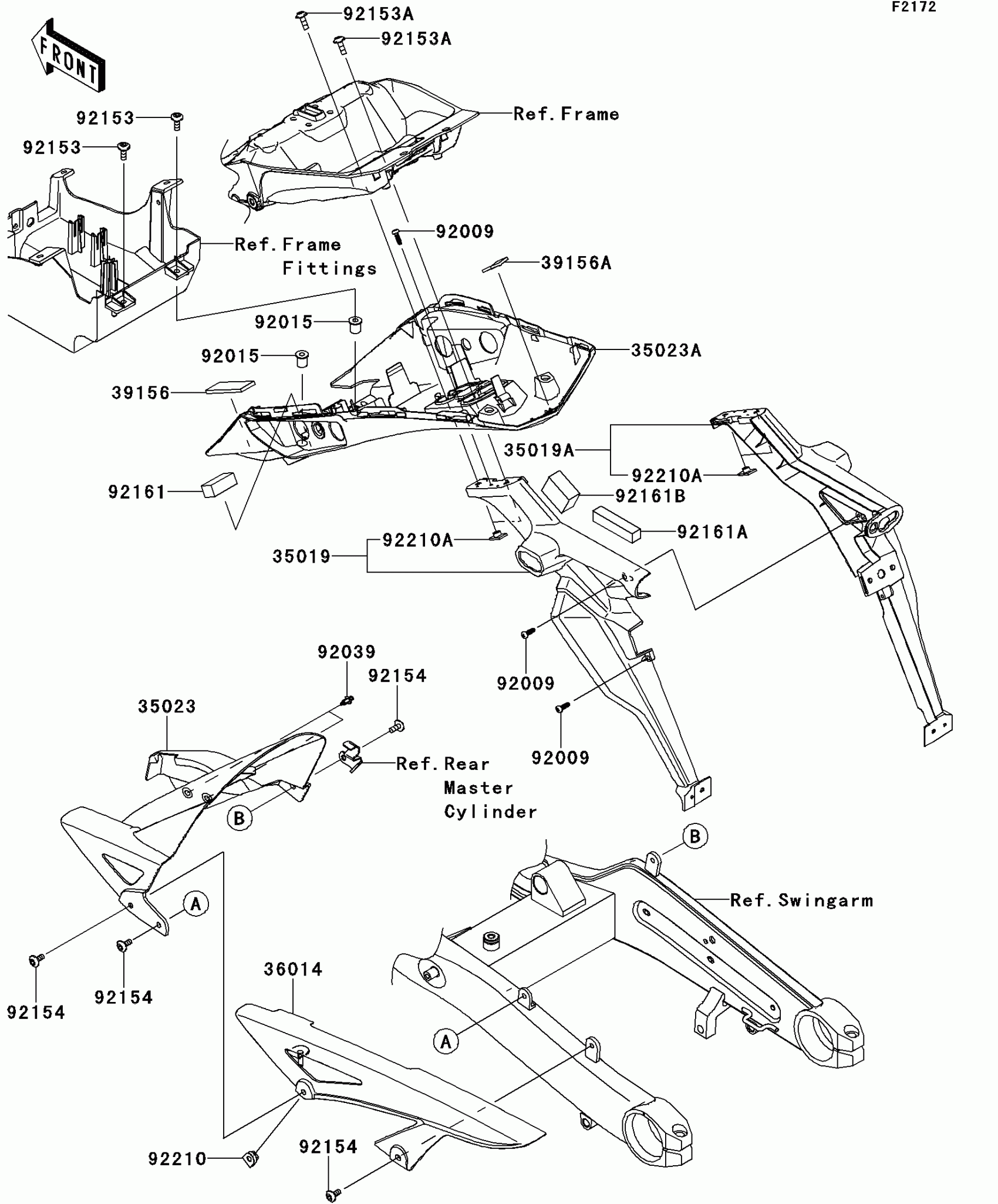

Kawasaki NINJA® 1000 Rear Fender(s) Diagram

Description

Price

35019

FLAP,LH

35019-0558

$36.78

35019A

FLAP,RH

35019-0559

$36.78

35023

FENDER-REAR,INNER

35023-0170

$47.94

35023A

FENDER-REAR

35023-0190

Unavailable

36014

CASE-CHAIN

36014-0029

$37.51

39156

PAD,25X70X4

39156-0748

$3.32

39156A

PAD,20X30X3

39156-0749

$2.64

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT

92015-1700

$8.58

92039

RIVET

92039-0060

$3.39

92153

BOLT,6X18

92153-0816

$2.15

92153A

BOLT,SOCKET,6X18

92153-1675

$2.15

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92161

DAMPER,FR SEAT

92161-0889

$3.69

92161A

DAMPER,70X15X15

92161-0891

$4.01

92161B

DAMPER

92161-3752

$5.64

92210

NUT,6MM

92210-0277

$4.92

92210A

NUT,PLATE,6MM

92210-1352

$2.41
