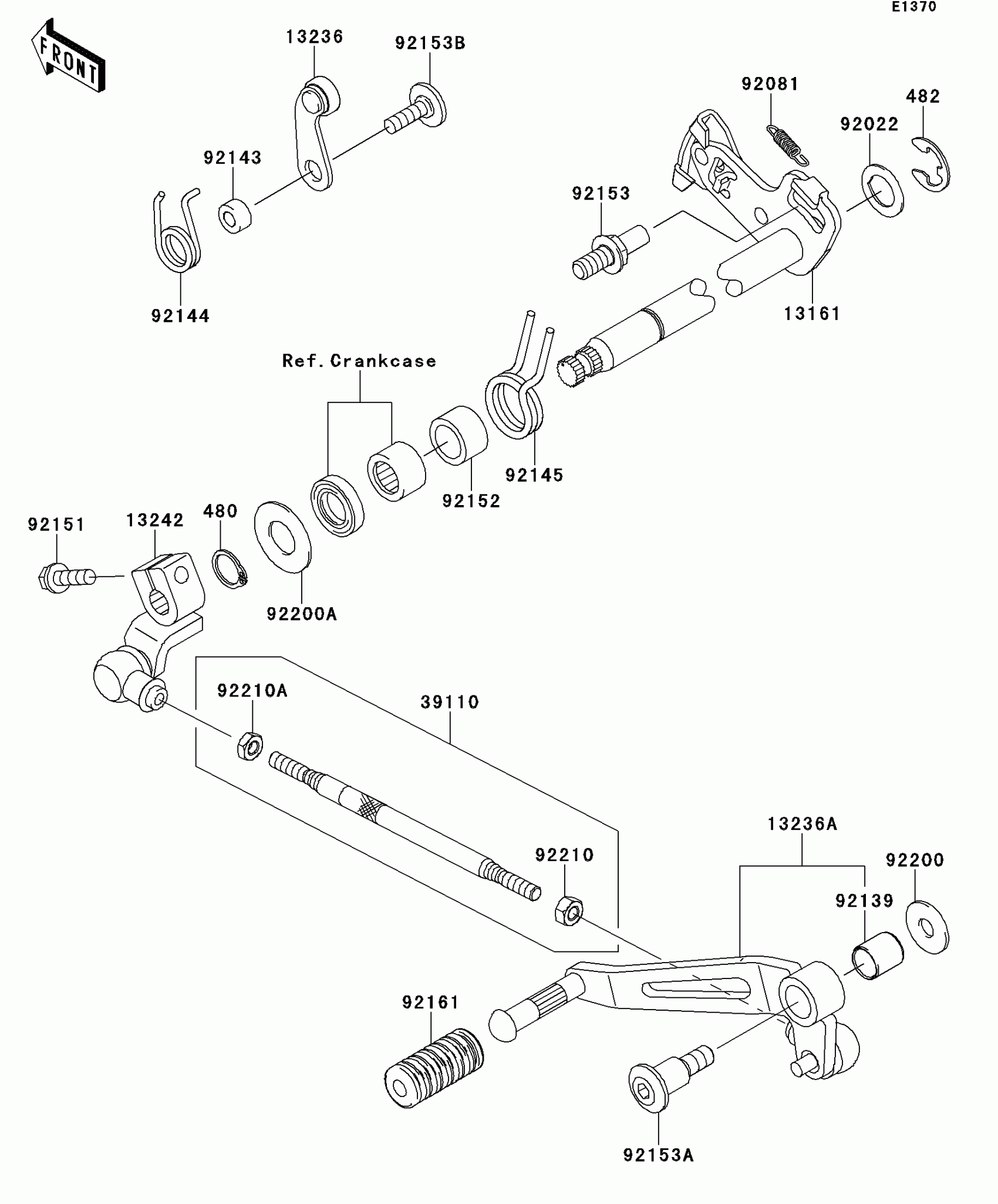

Kawasaki NINJA® 1000 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0557

Unavailable

13236

LEVER-COMP

13236-0068

$12.25

13236A

LEVER-COMP,CHANGE PEDAL

13236-0185

Unavailable

13242

LEVER-ASSY-CHANGE

13242-0059

$52.04

39110

ROD-ASSY-TIE

39110-0033

$19.46

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92081

SPRING,PAWL RETURN

92081-1708

$5.66

92139

BUSHING

92139-0023

$2.80

92143

COLLAR

92143-1595

$9.22

92144

SPRING,GEAR POSITION

92144-1523

$8.56

92145

SPRING

92145-1122

$9.37

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92152

COLLAR,14.2X19.9X12.0

92152-1383

$3.19

92153

BOLT,RETURN SPRING

92153-0421

$8.81

92153A

BOLT,SOCKET,8X16.7

92153-0446

$7.70

92153B

BOLT,6X20

92153-1505

$7.61

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.65

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92200A

WASHER

92200-0265

$1.85

92210

NUT,6MM

92210-1100

$1.68

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.20

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53
