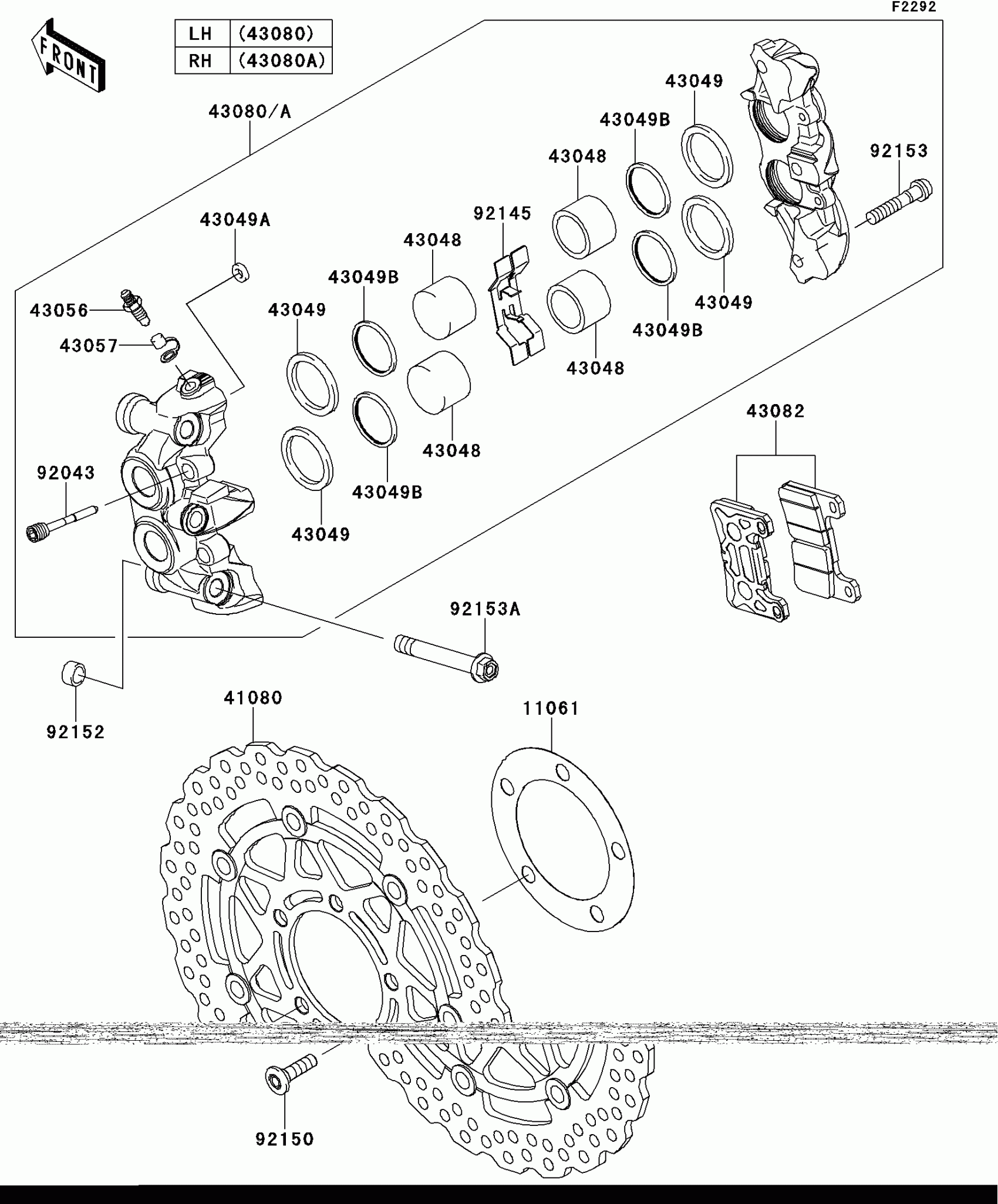

Kawasaki NINJA® 1000 Front Brake Diagram

Description

Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

41080

DISC,FR,HOUSING BLK+DISC SIL

41080-0565-5C

$341.60

43048

PISTON-CALIPER

43048-0013

$68.90

43049

PACKING,PISTON

43049-0012

$13.43

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049B

PACKING

43049-1068

$9.82

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0098-DJ

$403.72

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0099-DJ

$403.72

43082

PAD-ASSY-BRAKE

43082-0113

$86.96

92043

PIN,PAD

92043-1709

$8.36

92145

SPRING,PAD

92145-0580

$18.84

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92152

COLLAR,DOWEL PIN

92152-0679

$7.60

92153

BOLT,SOCKET,8X40

92153-0360

$6.18

92153A

BOLT,FLANGED,10X73

92153-1890

$10.05
