Description

Price

11056

BRACKET

11056-0787

$3.87

11056A

BRACKET

11056-0788

$6.88

11056B

BRACKET

11056-1091

$13.99

11061

GASKET,GENERATOR COVER

11061-0403

$17.63

11061A

GASKET,CLUTCH COVER

11061-0404

$23.78

13272

PLATE

13272-0859

$15.62

14026

COVER-CHAIN

14026-0080

$168.26

14031

COVER-GENERATOR

14031-0131

$244.00

14032

COVER-CLUTCH

14032-0140

Unavailable

14092

COVER,OUTER

14092-0032

$15.47

14092A

COVER,PULSER

14092-0175

$59.30

16115

CAP-OIL FILLER

16115-1053

$12.20

21176

SENSOR,SPEED

21176-0045

$131.52

52005

GAUGE

52005-1120

$22.80

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,PULSER COVER

92055-0199

$9.58

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

92151

BOLT,6X35

92151-1135

$4.18

92151A

BOLT,FLANGED,5X12

92151-1305

$1.59

92151B

BOLT,6X30

92151-1873

$4.67

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP

92171-0708

$4.09

130

BOLT-FLANGED,6X14

130BA0614

$1.20

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,20MM

670B2020

$1.22

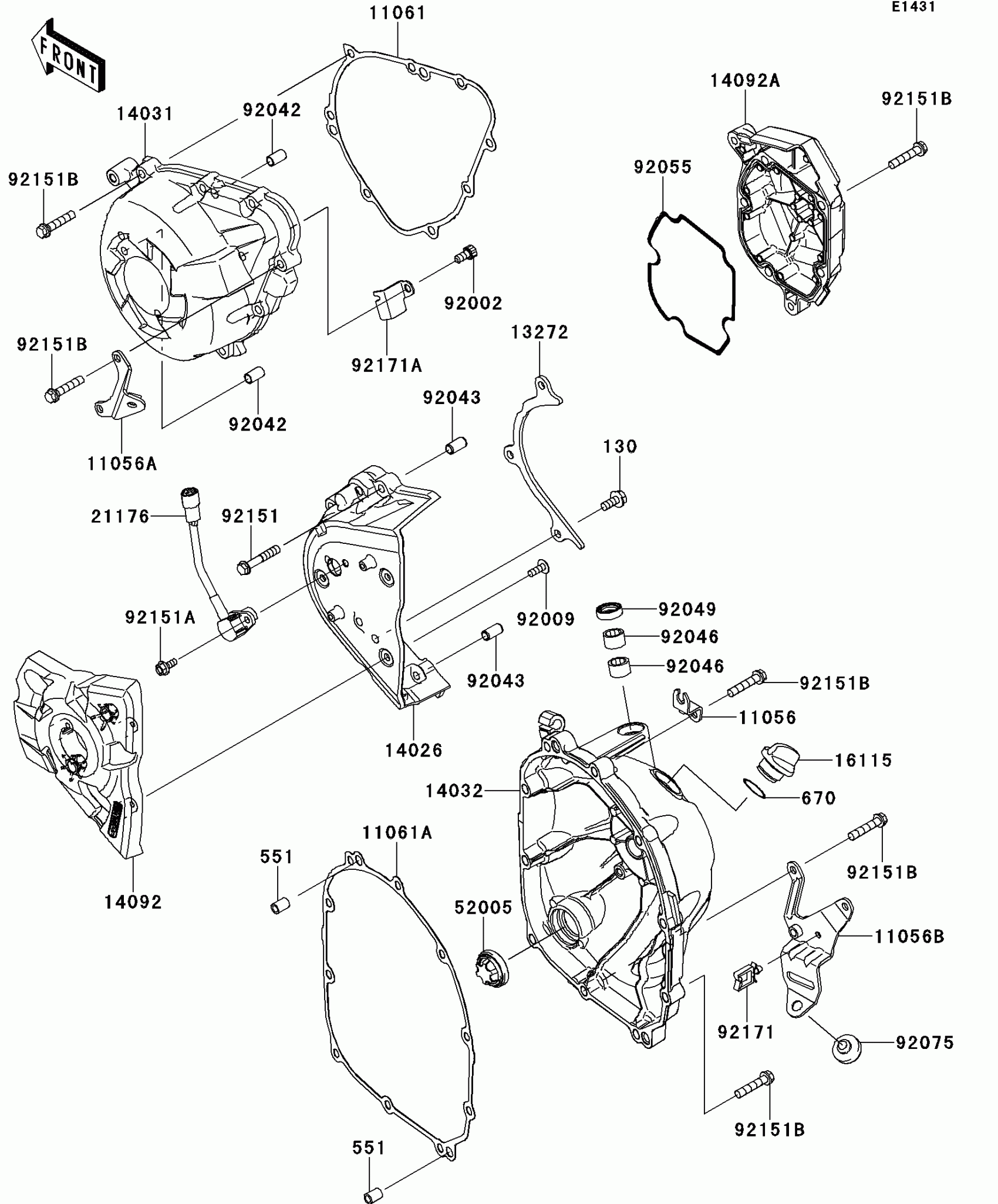

Kawasaki NINJA® 1000 Engine Cover(s) Diagram

BRACKET

BRACKET

BRACKET

GASKET,GENERATOR COVER

GASKET,CLUTCH COVER

PLATE

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

COVER,OUTER

COVER,PULSER

CAP-OIL FILLER

SENSOR,SPEED

GAUGE

BOLT,SOCKET,6X12

SCREW,TAPPING,5X14

PIN,DOWEL,6.3X8X14

PIN,6.2X8X14

BEARING-NEEDLE,HK1210FM

SEAL-OIL,CLUTCH RELEASE

RING-O,PULSER COVER

DAMPER RUBB MAIN STND

BOLT,6X35

BOLT,FLANGED,5X12

BOLT,6X30

CLAMP

CLAMP

BOLT-FLANGED,6X14

PIN-DOWEL,8X14

O RING,20MM
