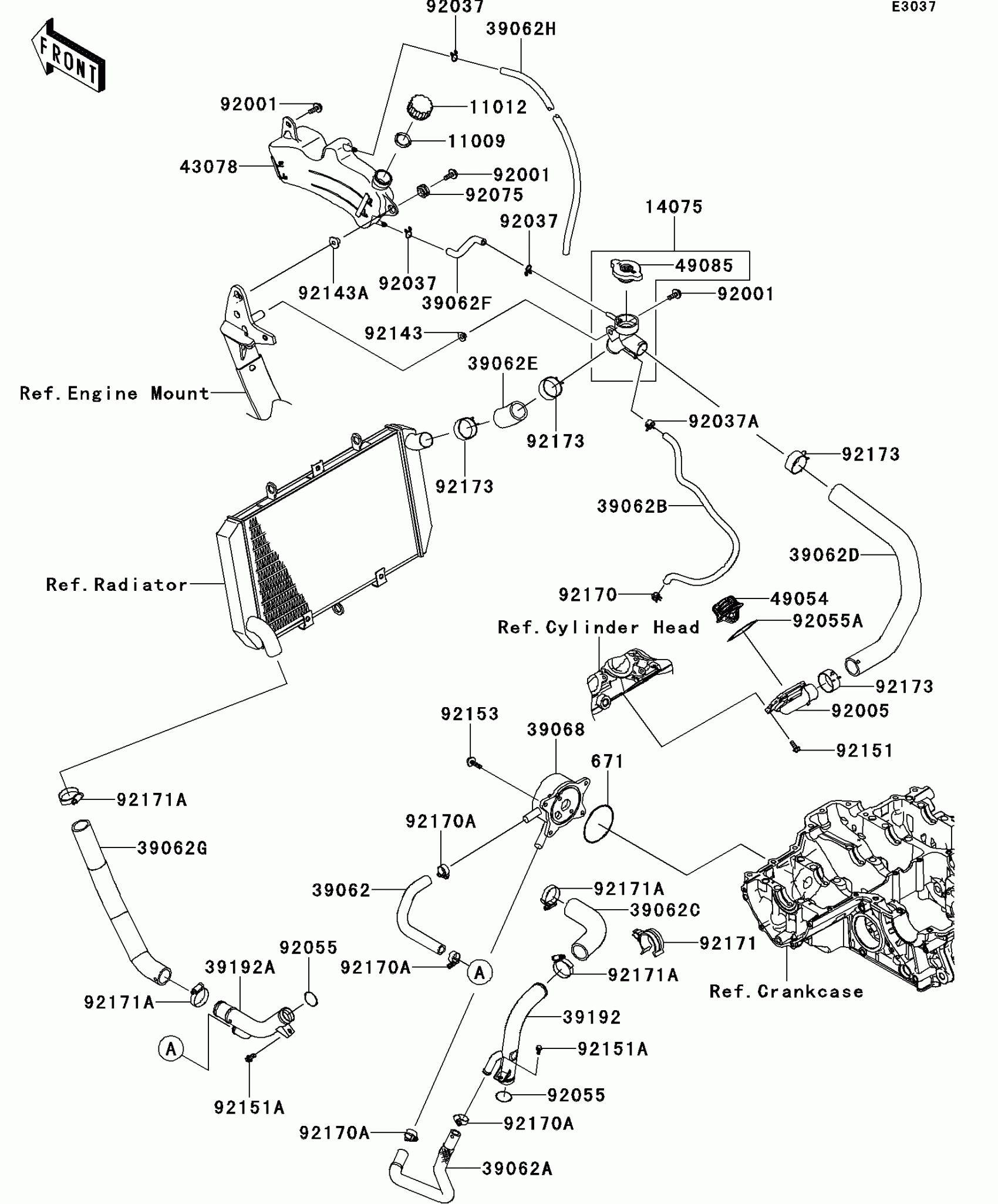

Kawasaki NINJA® 1000 ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

14075

CAP-ASSY

14075-0011

Unavailable

39062

HOSE-COOLING,PIPE-OIL COOLER

39062-0308

$9.50

39062A

HOSE-COOLING,PIPE-OIL COOLER

39062-0309

$34.79

39062B

HOSE-COOLING,AIR BLEED

39062-0310

$10.09

39062C

HOSE-COOLING,PIPE-CYLINDER

39062-0312

$16.69

39062D

HOSE-COOLING,CAP-THERMO

39062-0313

$57.76

39062E

HOSE-COOLING,CAP-RAD.

39062-0314

$7.52

39062F

HOSE-COOLING,RETURN

39062-0342

$10.09

39062G

HOSE-COOLING,RAD.-PIPE

39062-0344

$49.00

39062H

HOSE-COOLING,5.5X10.5X950

39062-1069

Unavailable

39068

COOLER-ASSY-OIL

39068-0010

$637.61

39192

PIPE-WATER

39192-0116

$43.93

39192A

PIPE-WATER

39192-0136

$45.18

43078

RESERVOIR

43078-0069

$41.47

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92001

BOLT,6X18

92001-1342

Unavailable

92005

FITTING,THERMO CAP

92005-0076

$79.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,20.8X2.4

92055-0114

$3.90

92055A

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92075

DAMPER

92075-1634

$4.69

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1962

$6.22

92151

BOLT,5X14

92151-1764

$2.41

92151A

BOLT,6X12

92151-1997

$1.54

92153

BOLT,6X22

92153-0725

$2.15

92170

CLAMP

92170-1493

$5.00

92170A

CLAMP

92170-3729

Unavailable

92171

CLAMP

92171-0130

$6.48

92171A

CLAMP

92171-0179

$8.20

92173

CLAMP

92173-0072

$7.24

671

O RING,65MM

671B2565

$8.86
