Description

Price

13127

SHAFT-TRANSMISSION INPUT

13127-0073

$299.16

13128

SHAFT-TRANSMISSION OUTPUT

13128-0054

$238.67

13144

SPROCKET-OUTPUT,15T

13144-0070

$46.80

13262

GEAR,INPUT 2ND,20T

13262-0753

$75.67

13262A

GEAR,INPUT 3RD&4TH,15T&18T

13262-0754

$217.68

13262B

GEAR,INPUT 5TH,21T

13262-0755

$160.35

13262C

GEAR,INPUT TOP,22T

13262-0756

$160.78

13262D

GEAR,OUTPUT LOW,39T

13262-0757

$146.26

13262E

GEAR,OUTPUT 5TH,26T

13262-0761

$203.69

13262F

GEAR,OUTPUT 2ND,39T

13262-0778

$130.45

13262G

GEAR,OUTPUT 3RD,24T

13262-0779

$132.44

13262H

GEAR,OUTPUT 4TH,25T

13262-0780

$128.47

13262I

GEAR,OUTPUT TOP,25T

13262-0810

$203.69

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92028

BUSHING,OUTPUT,2ND

92028-1739

$25.59

92028A

BUSHING,INPUT TOP GEAR

92028-1915

$25.83

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$105.03

92046

BEARING-NEEDLE,K20X24X13

92046-1219

$13.37

92046A

BEARING-NEEDLE,PK20X27X17X3

92046-1303

$21.01

92048

RACE

92048-0016

$32.49

92139

BUSHING,25X28X17.8

92139-0280

$34.79

92139A

BUSHING,OUTPUT,3RD&4TH

92139-0281

$43.03

92152

COLLAR,SPROCKET

92152-0812

$28.86

92200

WASHER,28.1X34.0X1.6

92200-0228

$27.48

92200A

WASHER,25.2X34.2X1.5

92200-0520

$7.24

92200B

WASHER,25.2X32X1

92200-0521

$8.08

92200C

WASHER

92200-1065

$6.63

92200D

WASHER,25.2X31.0X1.5

92200-1239

$7.84

92200E

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200F

WASHER,20.5X31X1.5

92200-1375

$4.69

92200G

WASHER,25.8X40.5X1.5

92200-1522

$4.83

92200H

WASHER,25.2X37.0X1.0

92200-1523

$6.36

92210

NUT,20MM

92210-0323

$46.79

600

BALL-STEEL,5/32

600A0500

$0.81

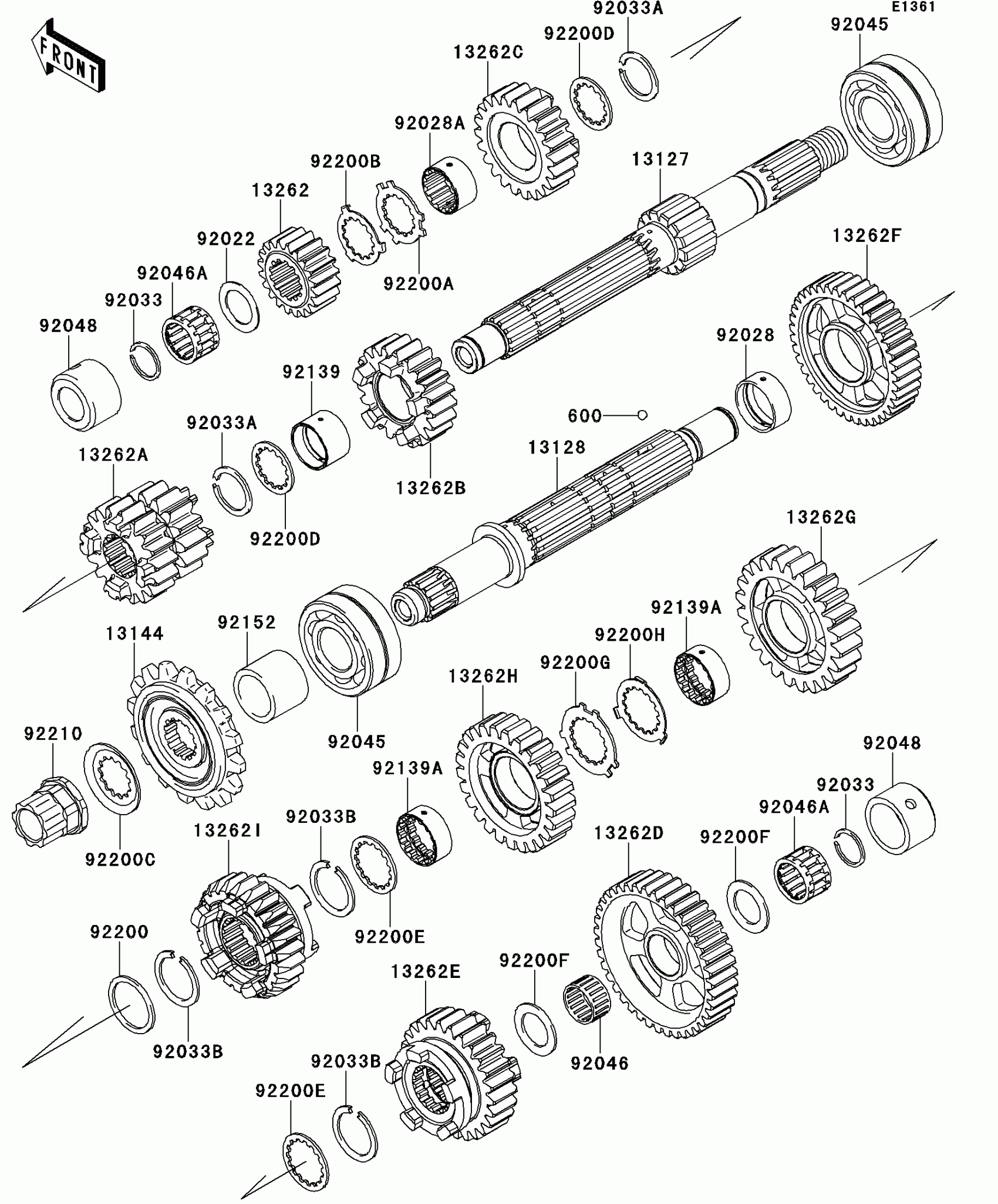

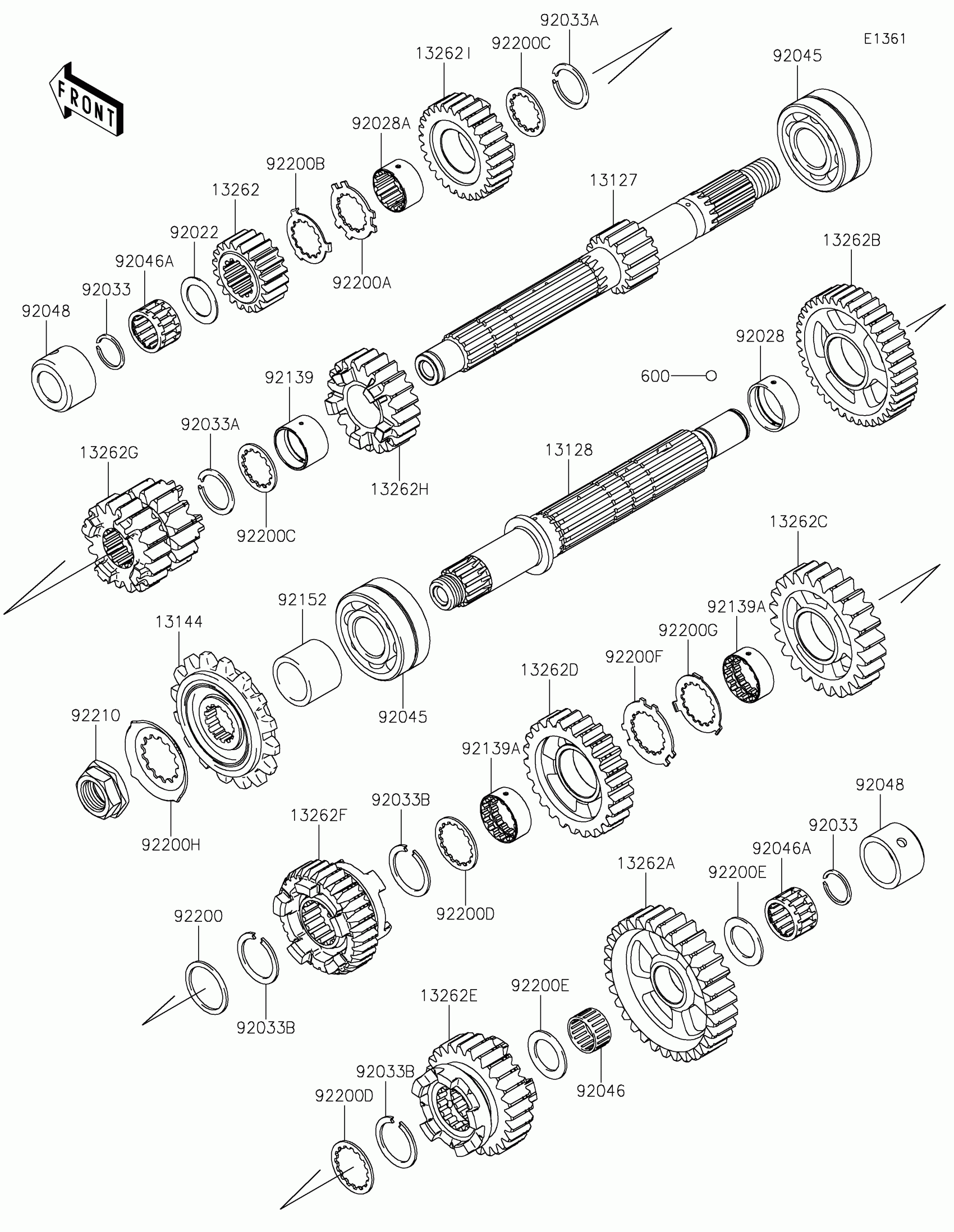

Kawasaki NINJA® 1000 ABS Transmission Diagram
