Throttle

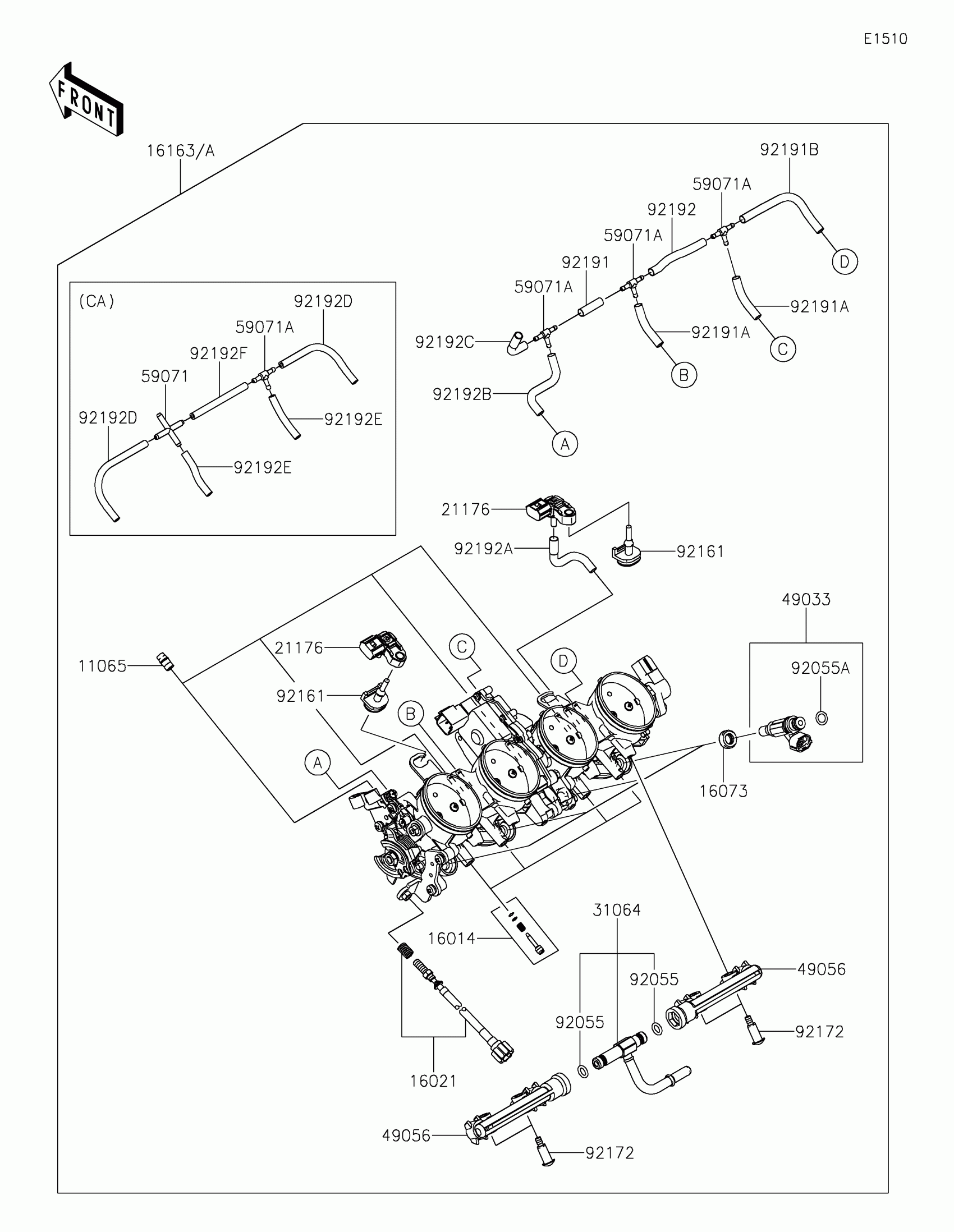

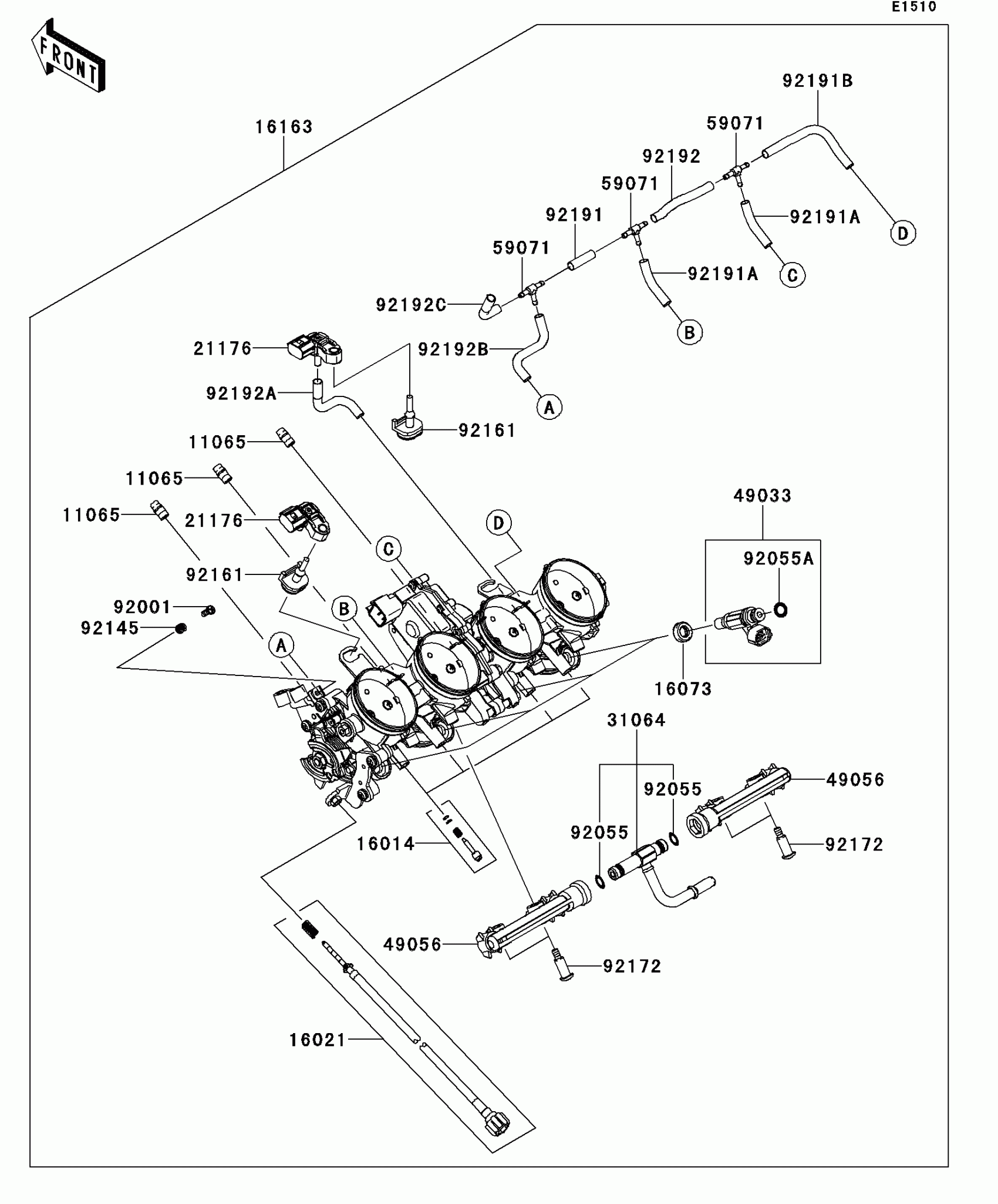

Kawasaki NINJA® 1000 ABS Throttle Diagram
#
Description
Price
11065
CAP
11065-0018
$6.12
16014
SCREW-PILOT AIR
16014-0002
$25.16
16021
SCREW-THROTTLE STOP
16021-0026
$64.16
16073
INSULATOR
16073-3707
$6.18
16163
THROTTLE-ASSY
16163-0904
$1,933.68
16163A
THROTTLE-ASSY
16163-0905
$1,933.68
21176
SENSOR,PRESSURE
21176-0111
$222.28
31064
PIPE-COMP,FUEL
31064-0199
$85.93
49033
NOZZLE-INJECTION
49033-0012
$132.64
49056
PIPE-INJECTION
49056-0014
$103.61
59071
JOINT,4WAY
59071-0014
$14.58
59071A
JOINT,3WAY,T
59071-3752
$10.19
59071A
JOINT,3WAY,T
59071-3752
$10.19
92055
RING-O
92055-0064
$7.65
92055A
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92161
DAMPER
92161-0673
$5.54
92172
SCREW,PIPE INJECTION
92172-0064
$2.80
92191
TUBE,3X7X25
92191-0020
$2.39
92191A
TUBE,3X7X40
92191-0022
$3.23
92191B
TUBE,3X7X100
92191-0023
$4.14
92192
TUBE,3X7X72
92192-0739
$8.37
92192A
TUBE,THROBO RH-SENSOR
92192-0840
$9.96
92192B
TUBE,THROBO LH-JOINT
92192-0841
$9.96
92192C
TUBE,SENSOR-JOINT
92192-0842
$9.96
92192D
TUBE,3X6X100
92192-1258
$21.29
92192E
TUBE,3X6X40
92192-1259
$9.64
92192F
TUBE,3X6X70
92192-1260
$21.29
