Description

Price

33001

ARM-COMP-SWING,F.S.BLACK

33001-0673-18R

$1,024.29

33032

SHAFT-SWING ARM

33032-0044

$104.53

42036

SLEEVE,20.1X28X226

42036-0069

$71.68

42036A

SLEEVE,REAR AXLE,LH,SILVER

42036-1153-KX

$104.88

42036B

SLEEVE,REAR AXLE,RH,SILVER

42036-1265-KX

$104.88

55020

GUARD,CHAIN

55020-0903

$74.82

92015

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92151

BOLT,SOCKET,10X40

92151-1899

$5.00

92152

COLLAR,SWING ARM,L=47

92152-0154

$37.14

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

$8.97

92154

BOLT-UPSET-WP,6X12

92154-2324

$3.96

92171

CLAMP

92171-0907

$10.30

92200

WASHER,10.5X18X2.0

92200-0531

$3.52

92210

NUT,30MM

92210-0134

$28.51

92210A

NUT,FLANGED,20MM

92210-0320

$11.93

92210B

NUT,POP,6MM,L=15

92210-1397

$5.48

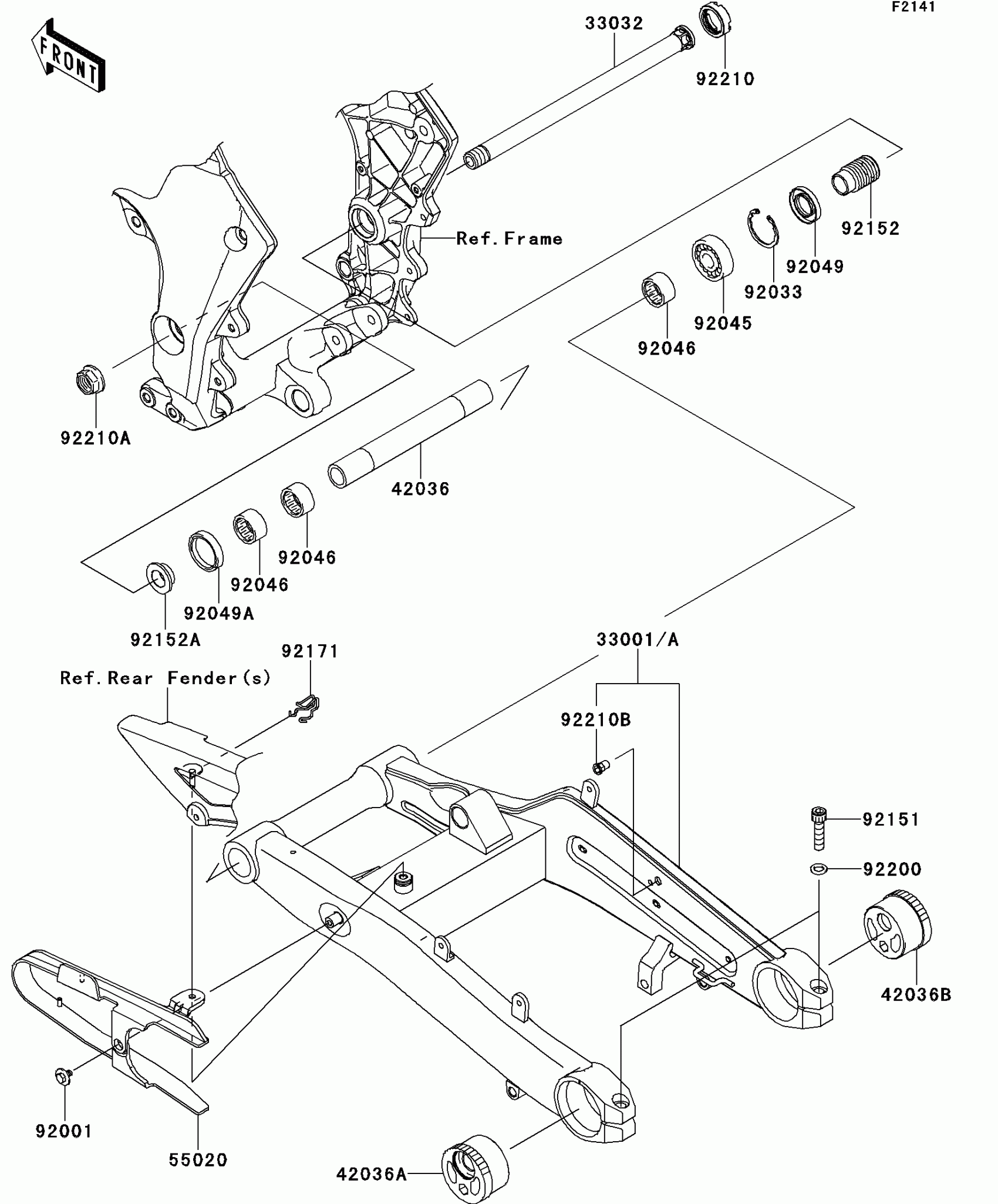

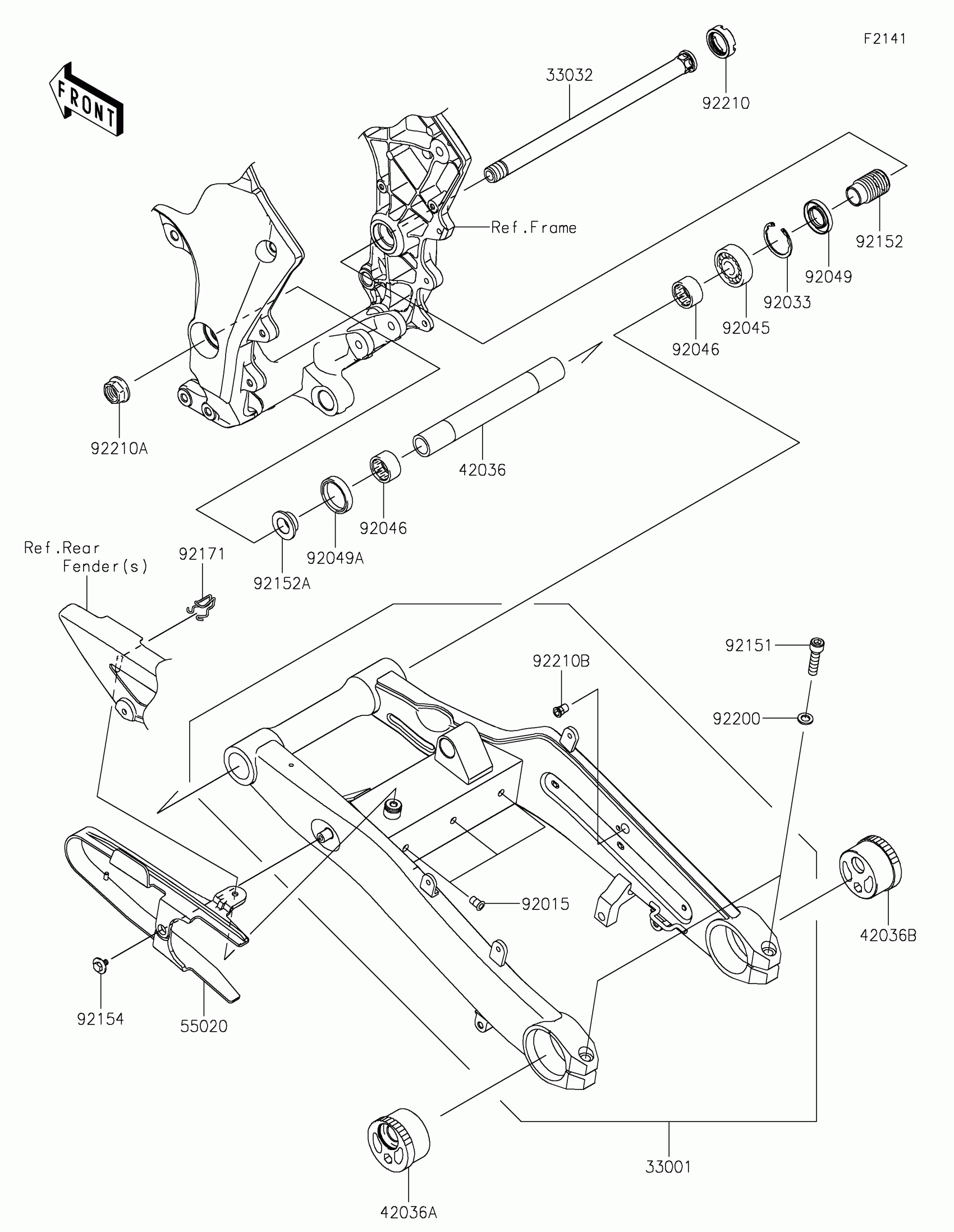

Kawasaki NINJA® 1000 ABS Swingarm Diagram
