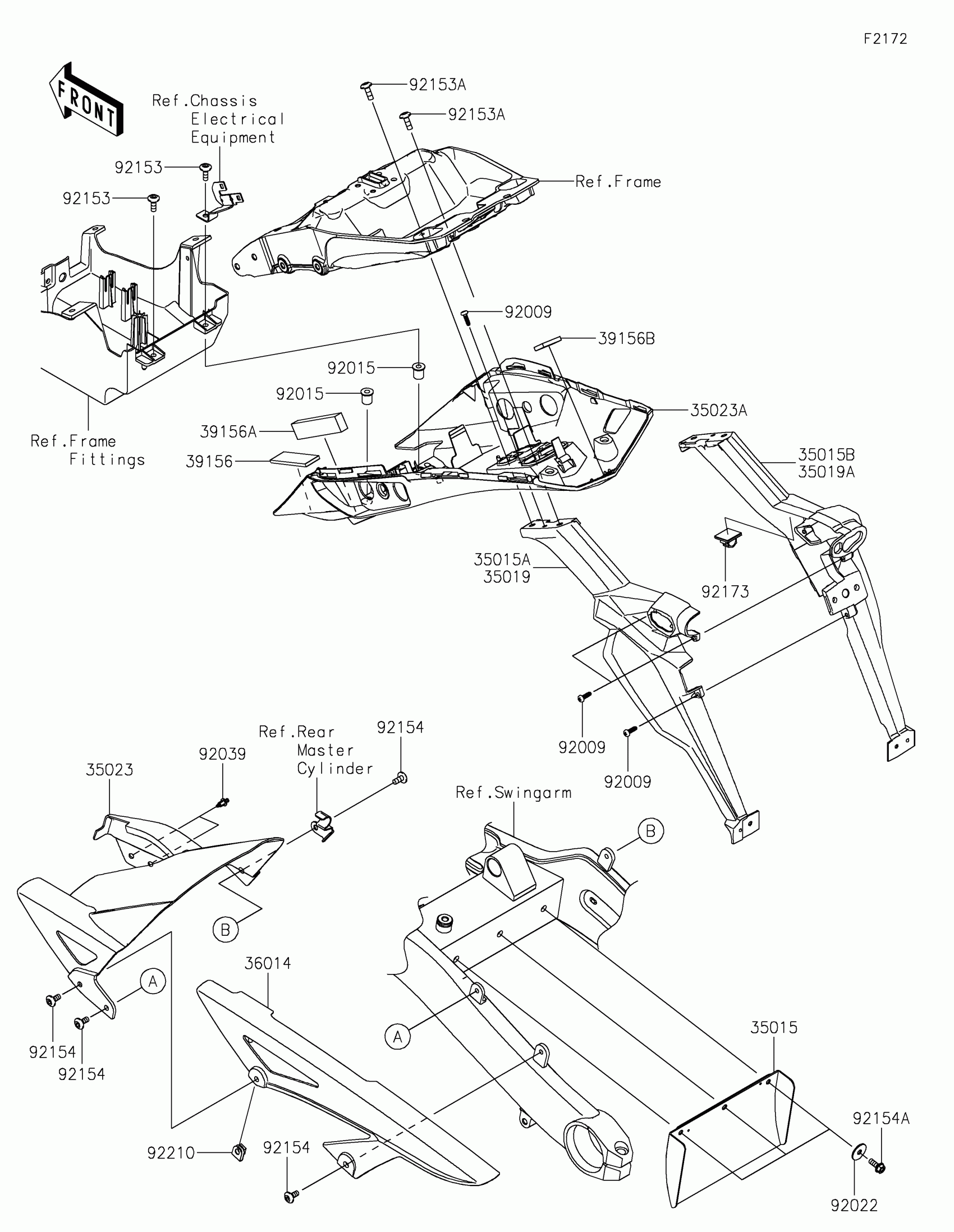

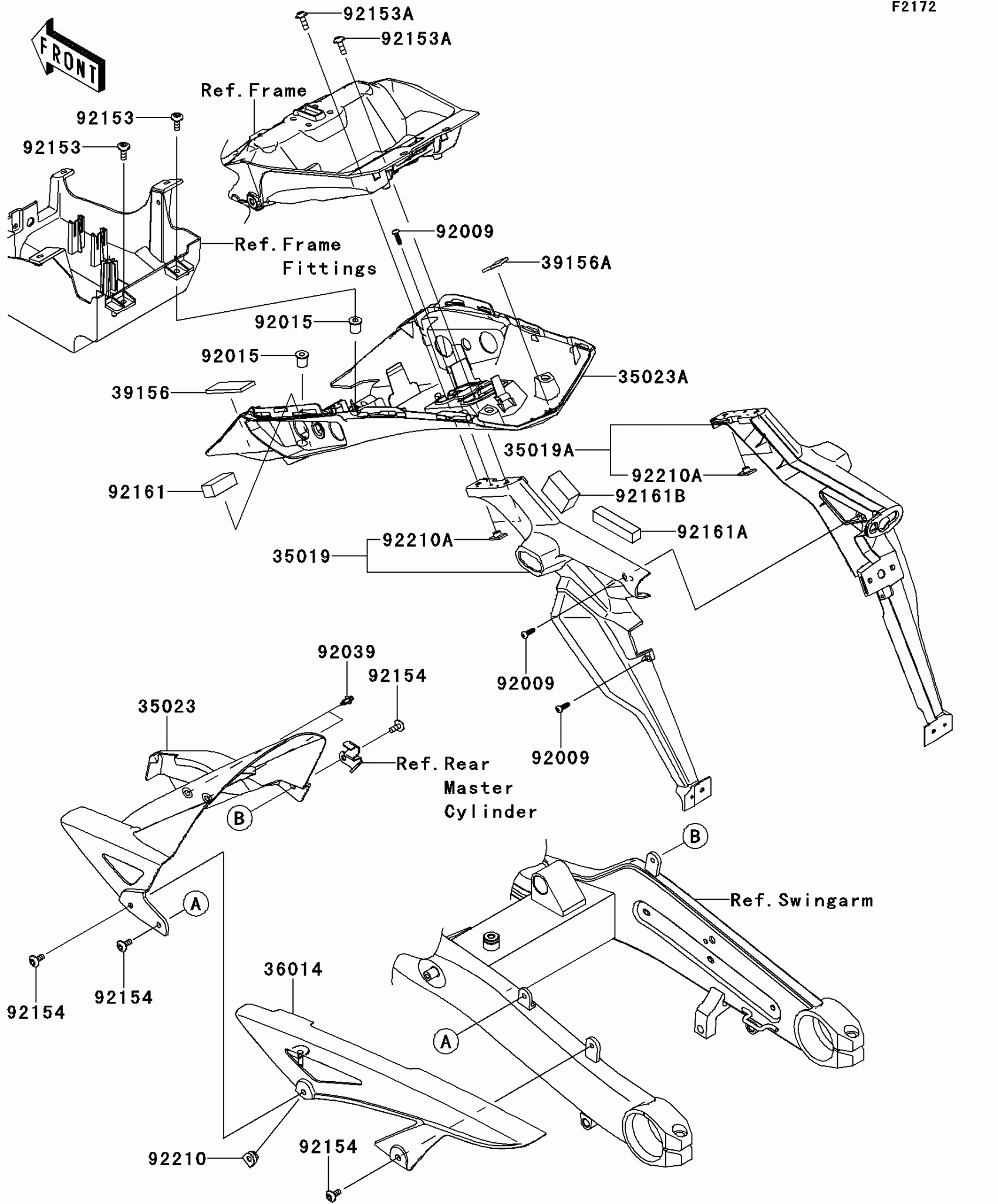

Kawasaki NINJA® 1000 ABS Rear Fender(s) Diagram

Description

Price

35015

FLAP-COMP

35015-0032

$67.70

35019

FLAP,LH

35019-0643

$32.12

35019A

FLAP,RH

35019-0644

$35.12

35023

FENDER-REAR,INNER

35023-0424

$49.32

35023A

FENDER-REAR

35023-0426

$119.30

36014

CASE-CHAIN

36014-0029

$37.51

39156

PAD,25X70X4

39156-0748

$3.32

39156A

PAD,12X95X22

39156-1821

$3.26

39156B

PAD,20X30X5

39156-2178

$1.52

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT

92015-1700

$8.58

92022

WASHER,7X24X1.6

92022-1160

$3.92

92039

RIVET

92039-0060

$3.39

92153

BOLT,6X18

92153-0816

$2.15

92153A

BOLT,SOCKET,6X18

92153-1675

$2.15

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,FLANGED,6X16

92154-0899

$2.32

92173

CLAMP,DRAIN

92173-1055

$6.34

92210

NUT,6MM

92210-0277

$4.92
