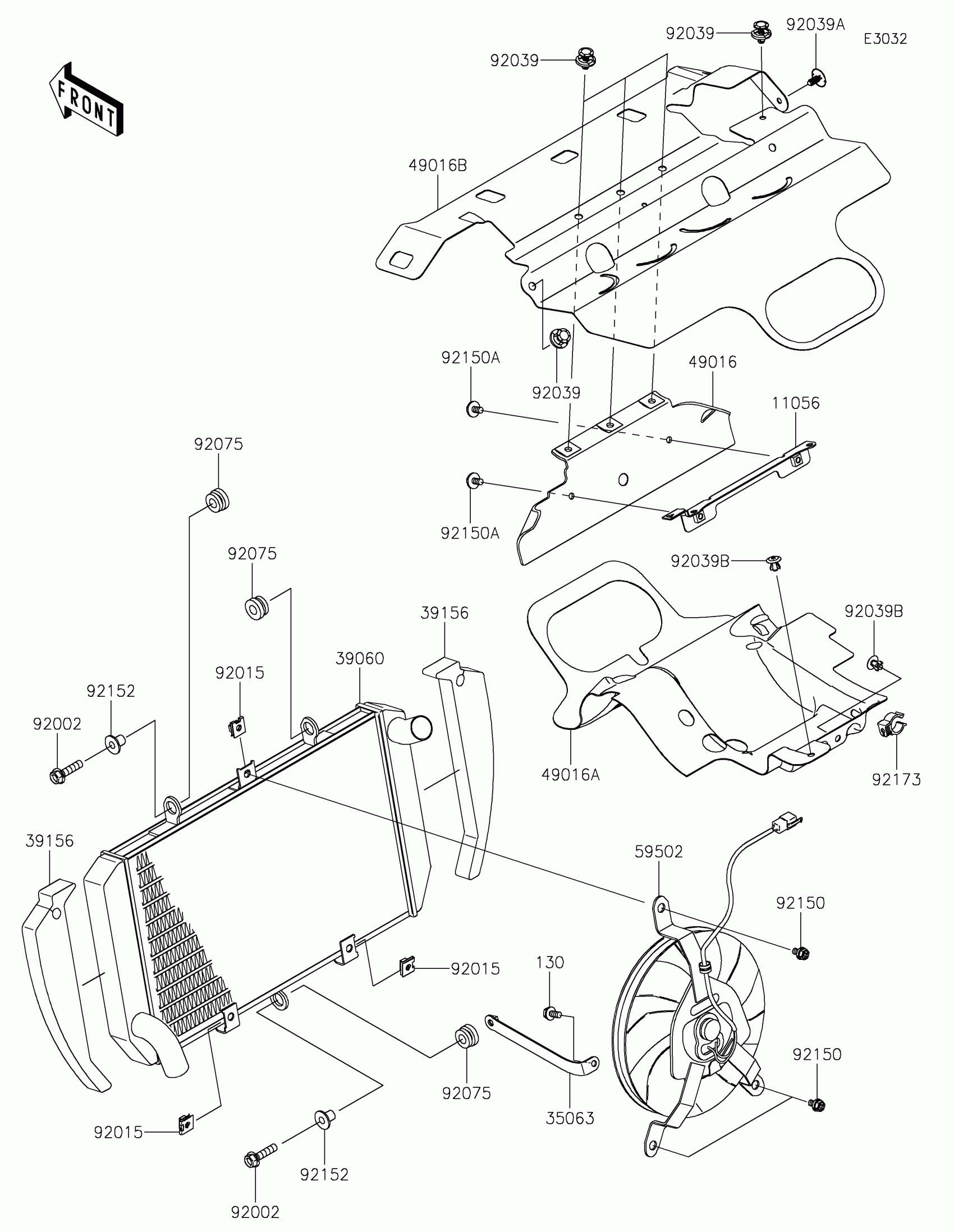

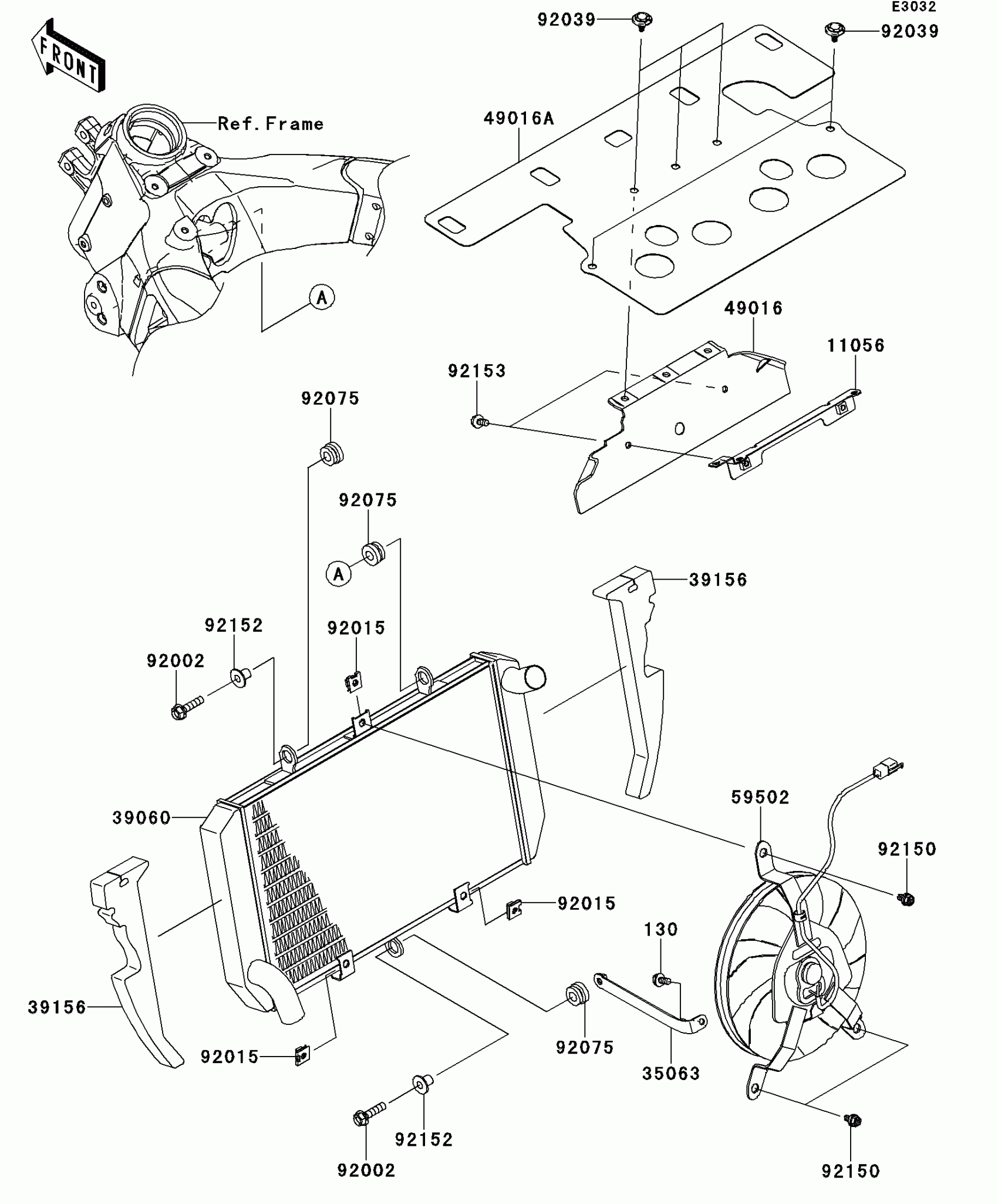

Kawasaki NINJA® 1000 ABS Radiator Diagram

Description

Price

11056

BRACKET

11056-0230

$10.60

130

BOLT-FLANGED,6X16

130CC0616

$1.94

35063

STAY

35063-0761

$6.77

39060

RADIATOR

39060-0081

$828.85

39156

PAD

39156-2140

$11.42

49016

COVER-SEAL

49016-0082

$12.65

49016A

COVER-SEAL

49016-0615

$46.04

49016B

COVER-SEAL

49016-0644

$66.59

59502

FAN-ASSY

59502-0612

$792.87

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92015

NUT

92015-1487

$4.80

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0027

$3.90

92039B

RIVET

92039-0730

$2.49

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92150A

BOLT,6X12

92150-1891

$3.92

92152

COLLAR

92152-0667

$7.37

92173

CLAMP

92173-1240

$2.49
