Description

Price

11061

GASKET

11061-0107

$2.58

13107

SHAFT

13107-0214

$29.63

13216

GEAR-COMP,OIL PUMP,41T

13216-0020

$119.90

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0064

$49.61

16142A

COVER-PUMP

16142-0703

$122.35

16154

ROTOR-PUMP

16154-0057

$75.22

16160

BODY

16160-0702

$121.25

32033

PIPE,OIL FILTER

32033-1535

$12.96

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-0026

$31.76

59256

IMPELLER

59256-0555

$42.34

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,OIL FILTER

92055-1503

$9.51

92055A

RING-O,WATER PUMP COVER

92055-1571

$14.17

92055B

RING-O,59.6X2.4

92055-3018

$6.22

92161

DAMPER

92161-0070

$4.49

92173

CLAMP

92173-0923

$3.94

92200

WASHER

92200-0410

$2.97

92200A

WASHER

92200-1009

$5.07

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X60

132BC0660

$2.97

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

551

PIN-DOWEL,4X8

551A0408

$0.78

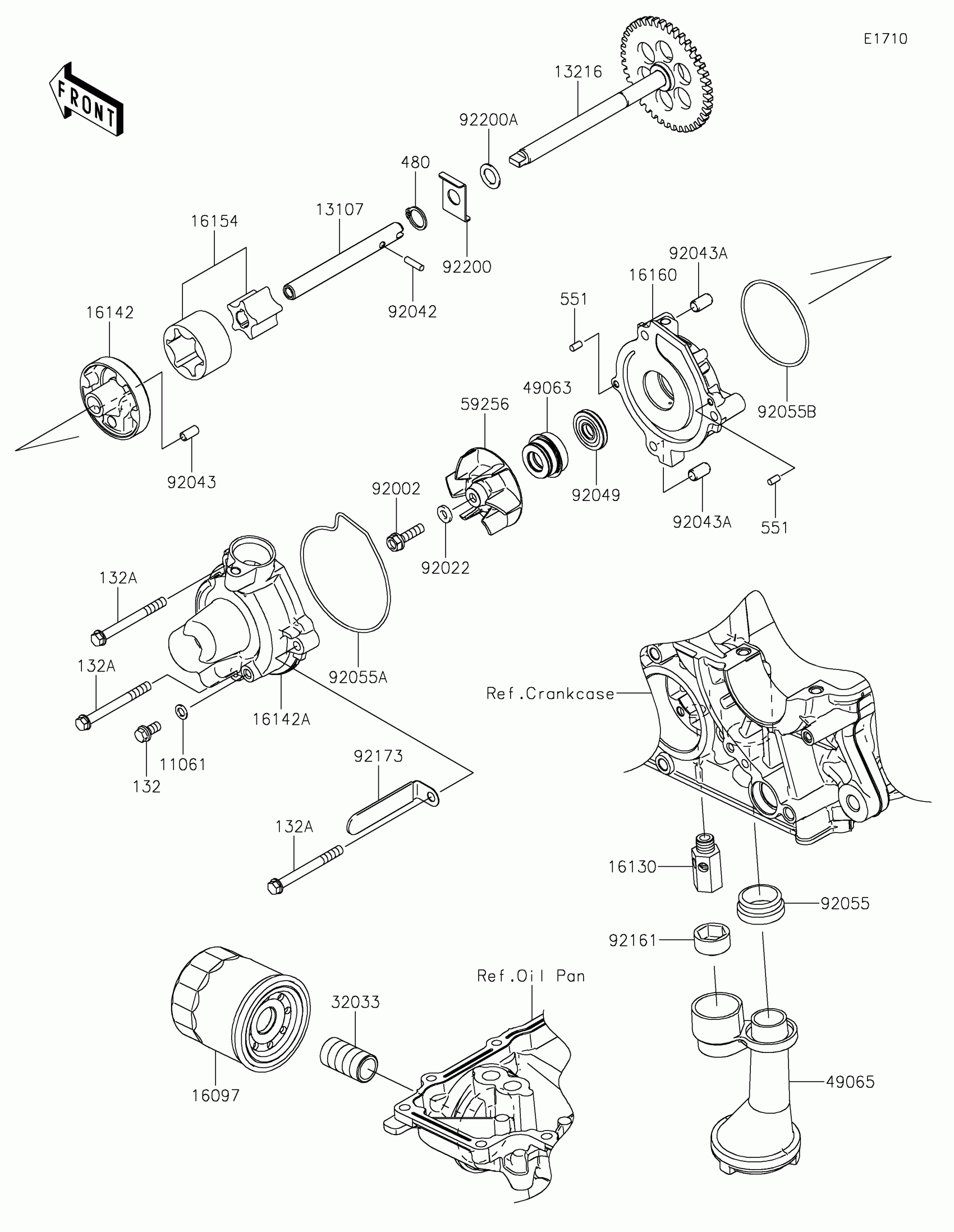

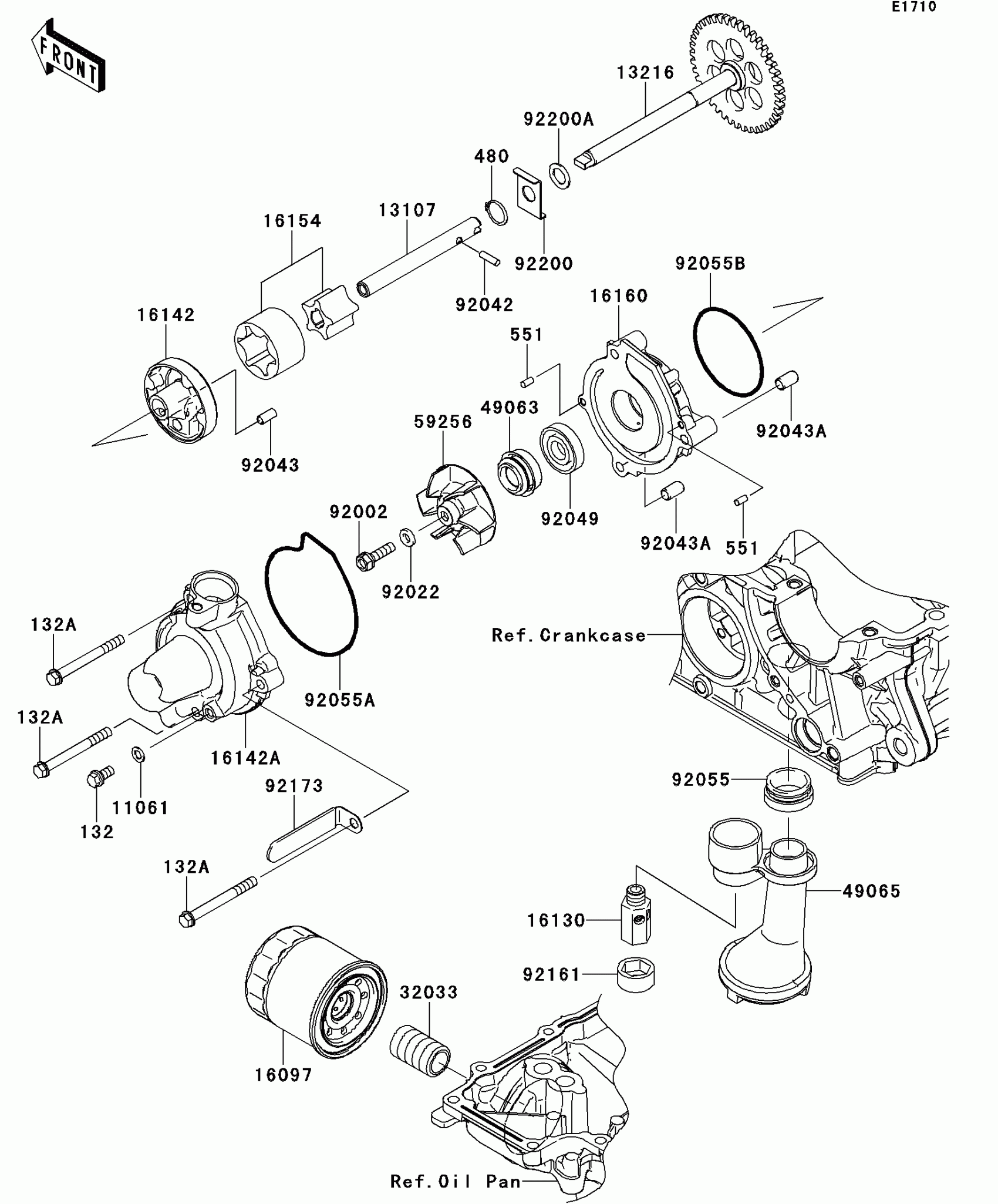

Kawasaki NINJA® 1000 ABS Oil Pump/Oil Filter Diagram

GASKET

SHAFT

GEAR-COMP,OIL PUMP,41T

FILTER-ASSY-OIL

VALVE-ASSY-RELIEF

COVER-PUMP

COVER-PUMP

ROTOR-PUMP

BODY

PIPE,OIL FILTER

SEAL-MECHANICAL

FILTER-OIL

IMPELLER

BOLT,6X22

WASHER OIL PUMP BANJO

PIN,DOWEL,4X13.8

PIN,4.2X6X12

PIN,6.2X8X14

SEAL-OIL,SC 11 28.55 5

RING-O,OIL FILTER

RING-O,WATER PUMP COVER

RING-O,59.6X2.4

DAMPER

CLAMP

WASHER

WASHER

BOLT-FLANGED-SMALL,6X12

BOLT-FLANGED-SMALL,6X60

CIRCLIP-TYPE-C,11MM

PIN-DOWEL,4X8
