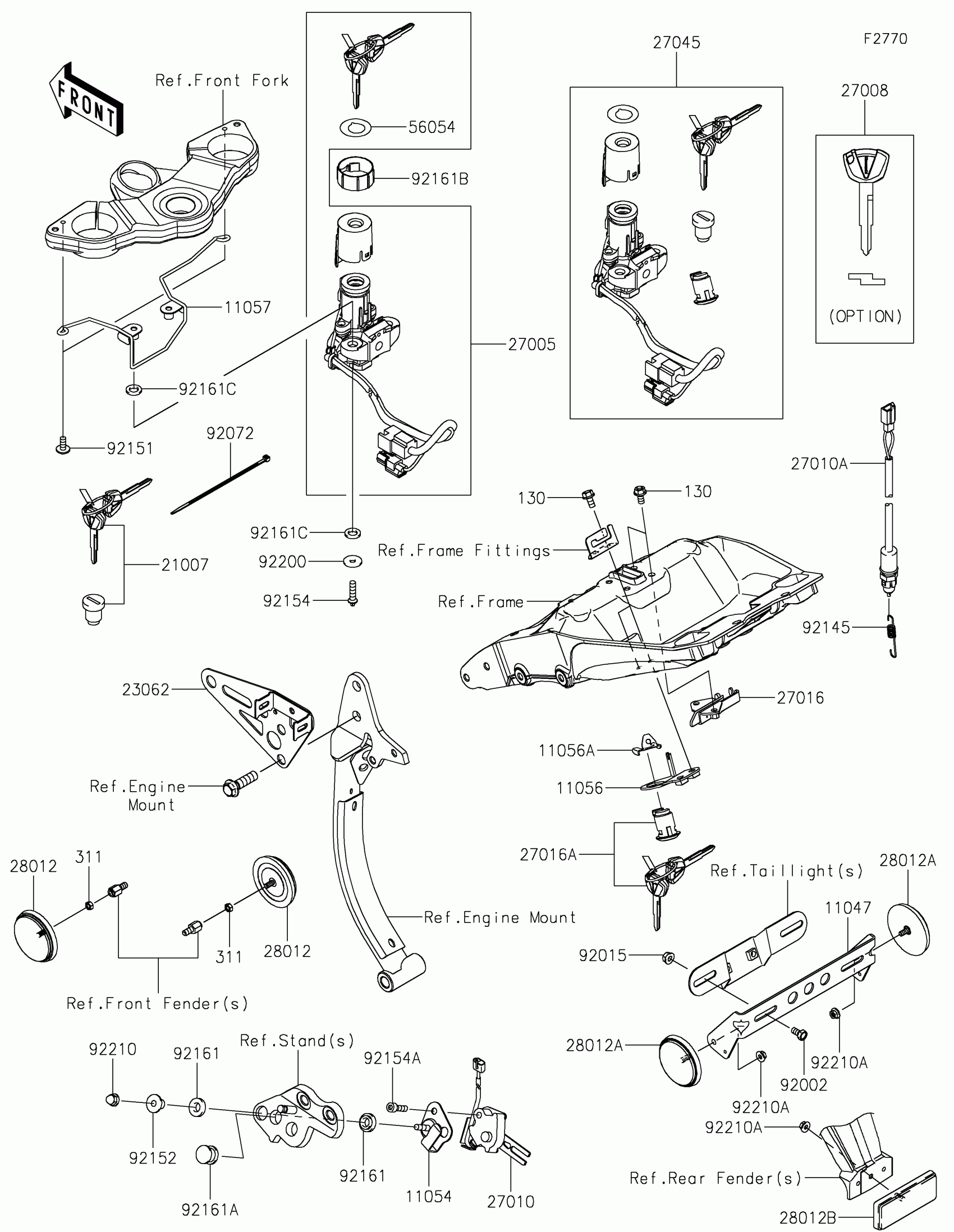

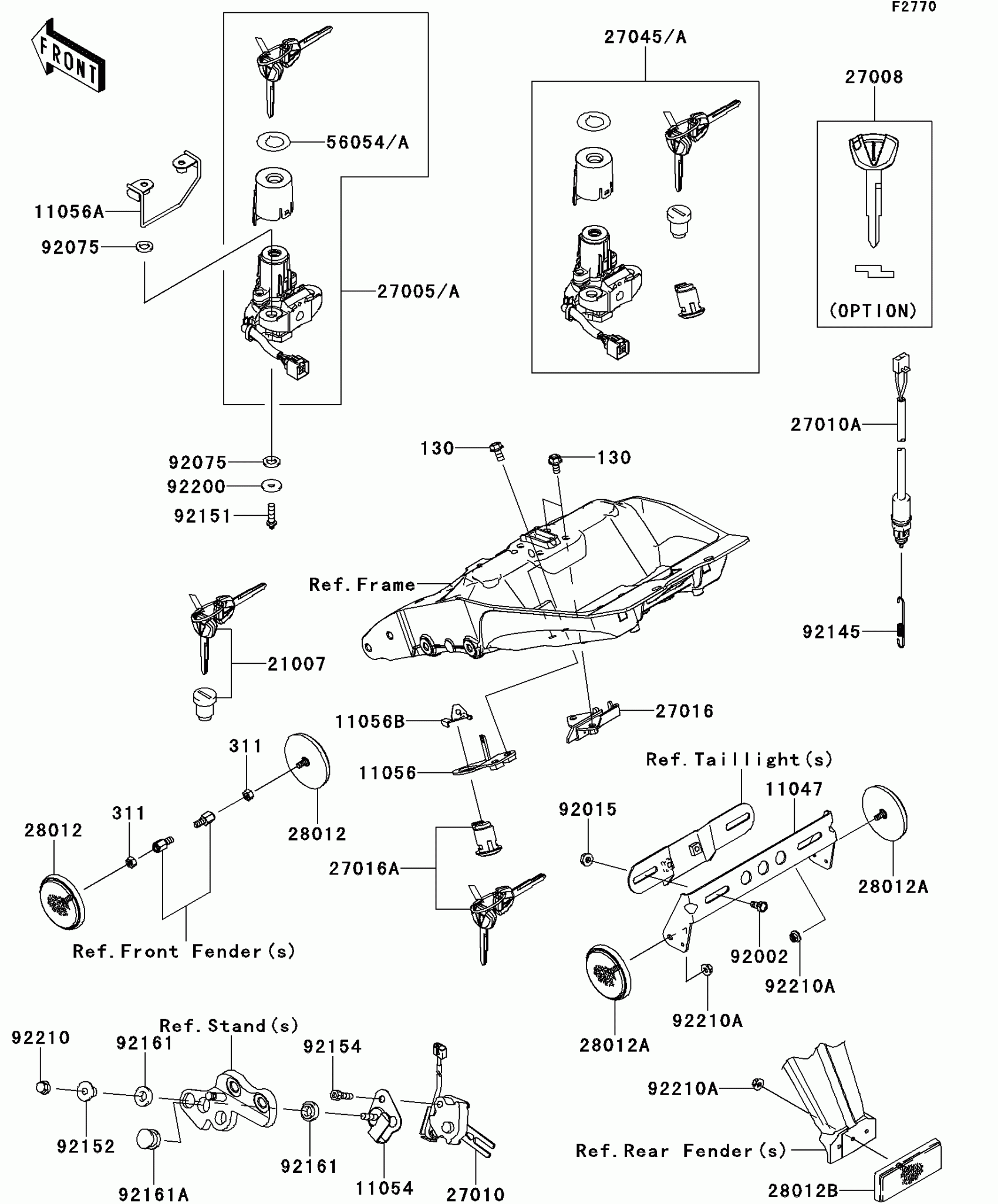

Kawasaki NINJA® 1000 ABS Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11047

BRACKET,REFLECTOR

11047-1470

$29.08

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$11.28

11056

BRACKET,KEY CYLINDER

11056-0264

$7.71

11056A

BRACKET

11056-1084

$13.49

11057

BRACKET,IG. SWITCH

11057-0420

$56.91

130

BOLT-FLANGED,6X12

130BA0612

$1.72

21007

ROTOR,LOCK,TANK CAP

21007-5068

$88.32

23062

BRACKET-COMP,REGULATOR

23062-0902

$13.85

27005

SWITCH-ASSY-IGNITION

27005-0568

$174.88

27008

KEY-LOCK,BLANK

27008-0069

$24.19

27010

SWITCH,SIDE STAND

27010-0112

$71.04

27010A

SWITCH,STOP

27010-0749

$35.01

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5368

$90.40

27045

SWITCH-ASSY

27045-5492

$548.39

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

311

NUT-HEX,5MM

311AB0500

$0.43

56054

MARK,IGNITION SWITCH

56054-0969

$10.90

92002

BOLT,6X12

92002-1132

$1.49

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,L=148

92072-3768

$3.92

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

$3.96

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-1074

$6.22

92154

BOLT,TORX,6X24

92154-1129

$4.10

92154A

BOLT,SOCKET,6X22

92154-1898

$2.12

92161

DAMPER

92161-0117

$2.90

92161A

DAMPER

92161-0118

$2.90

92161B

DAMPER

92161-1506

$6.63

92161C

DAMPER,10X17X3

92161-1507

$3.02

92200

WASHER,6X20X1.6

92200-0212

$3.35

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,FLANGED,5MM

92210-0007

$2.70
