Handlebar

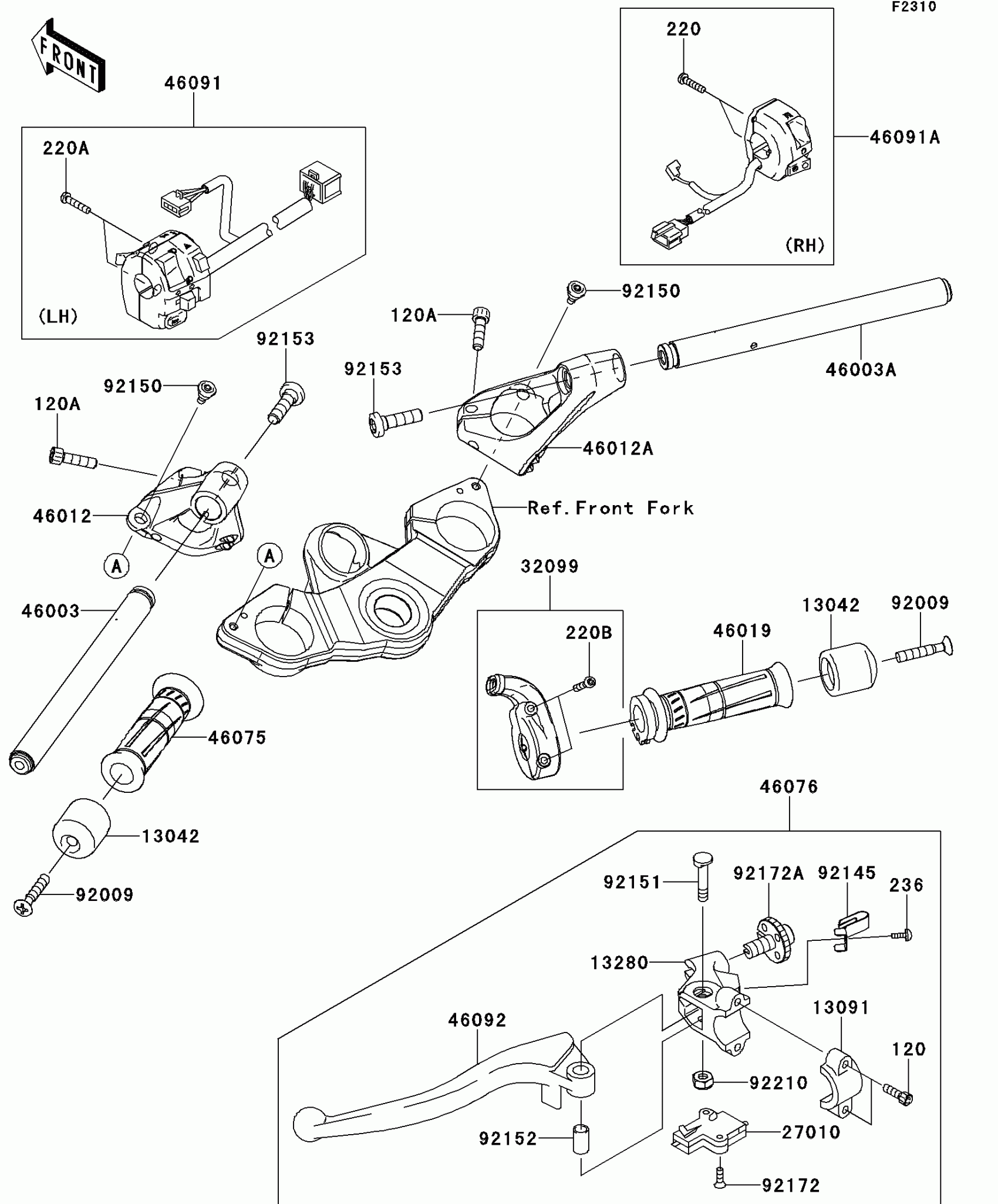

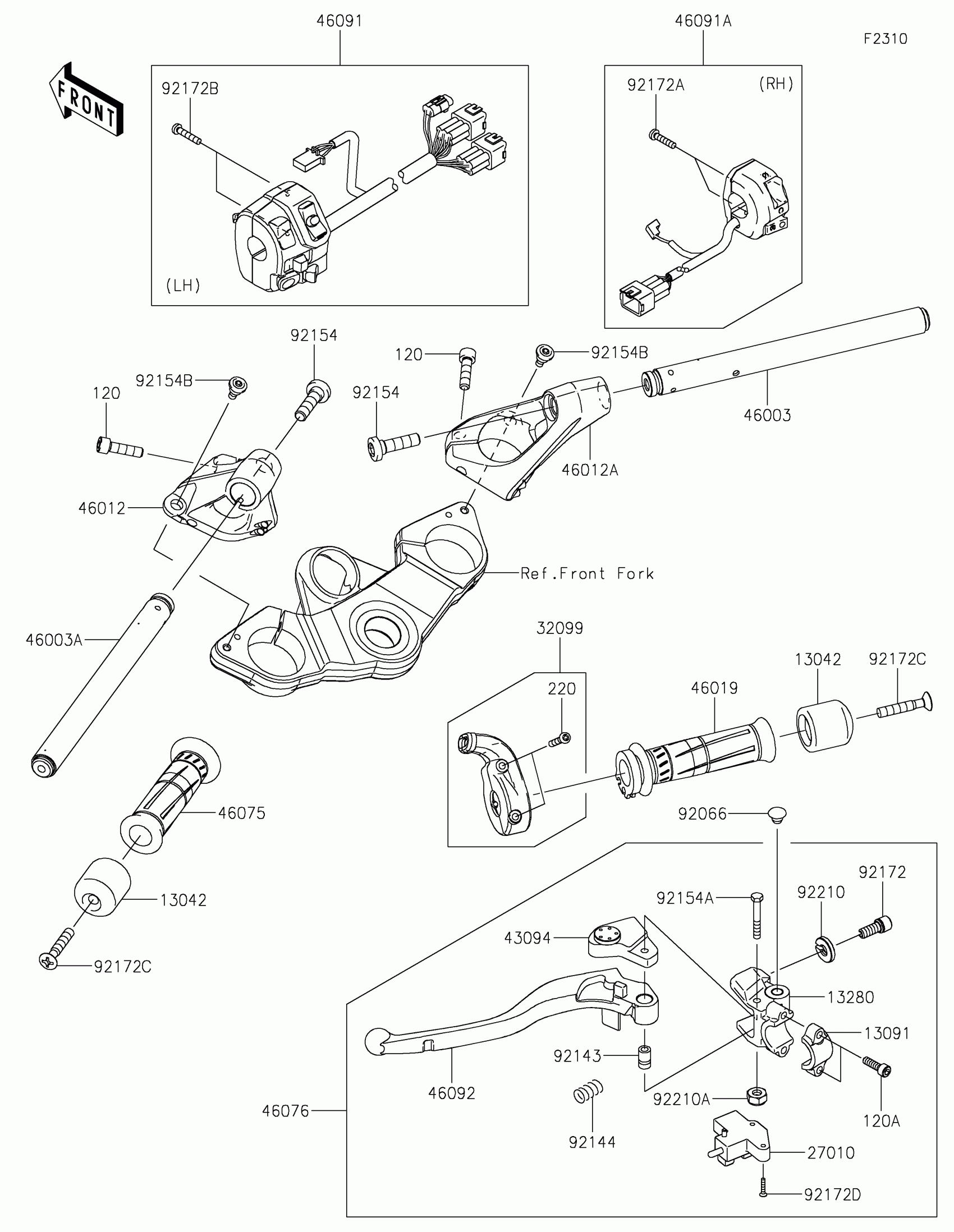

Kawasaki NINJA® 1000 ABS Handlebar Diagram
#
Description
Price
120
BOLT-SOCKET,8X30
120CA0830
$2.80
120A
BOLT-SOCKET,6X20
120CC0620
$1.78
13042
WEIGHT
13042-0710
$32.03
13091
HOLDER,CLUTCH LEVER
13091-1624
$35.87
13280
HOLDER,CLUTCH LEVER
13280-0248
$51.40
220
SCREW-PAN-CROS,5X35
220AB0535
$2.06
27010
SWITCH,CLUTCH
27010-0854
$32.97
32099
CASE,THROTTLE
32099-0049
$28.34
43094
ADJUSTER
43094-0008
$36.12
46003
HANDLE,RH
46003-0611
$75.66
46003A
HANDLE,LH
46003-0674
$75.66
46012
HOLDER-HANDLE,LH,F.S.BLACK
46012-0090-18R
$121.50
46012A
HOLDER-HANDLE,RH,F.S.BLACK
46012-0091-18R
$121.50
46019
GRIP-ASSY,THROTTLE
46019-0020
$42.73
46075
GRIP,LH
46075-0068
$18.92
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0121
$104.62
46091
HOUSING-ASSY-CONTROL,LH
46091-0348
$304.27
46091A
HOUSING-ASSY-CONTROL,RH
46091-0362
$150.02
46092
LEVER-GRIP
46092-0568
$19.70
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92154
BOLT,SOCKET,10X37
92154-2106
$7.75
92154A
BOLT
92154-2318
$7.89
92154B
BOLT,SOCKET,6X16.5
92154-2325
$3.57
92172
SCREW
92172-1138
$6.63
92172A
SCREW-PAN-CROS,5X22
92172-1139
$8.98
92172B
SCREW-PAN-CROS,5X25
92172-1140
$9.23
92172C
SCREW-PAN-CROS,8X45
92172-1141
$3.47
92172D
SCREW,3X16
92172-1185
$2.15
92210
NUT
92210-1519
$10.37
92210A
NUT,LOCK,6MM
92210-1544
$3.57
