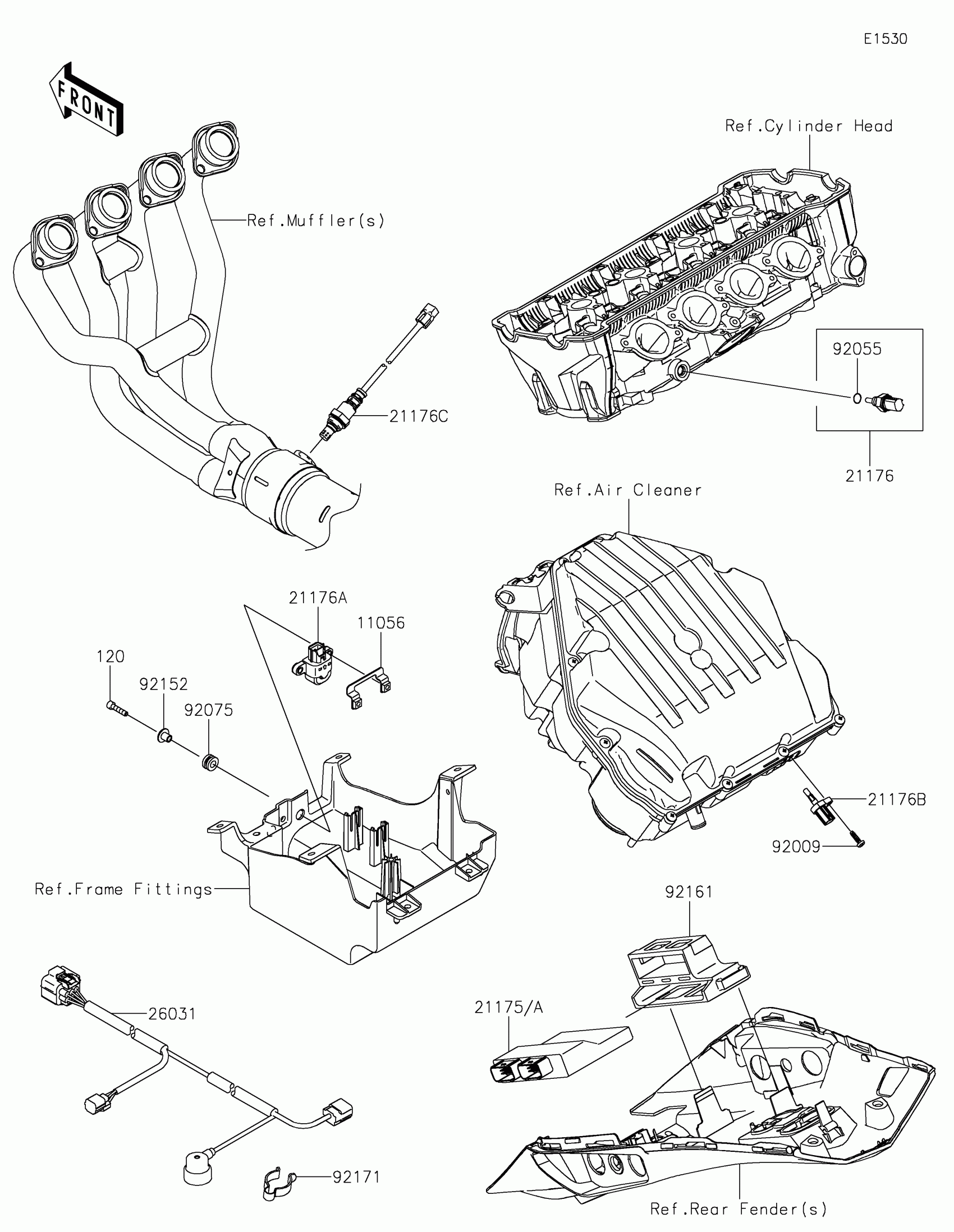

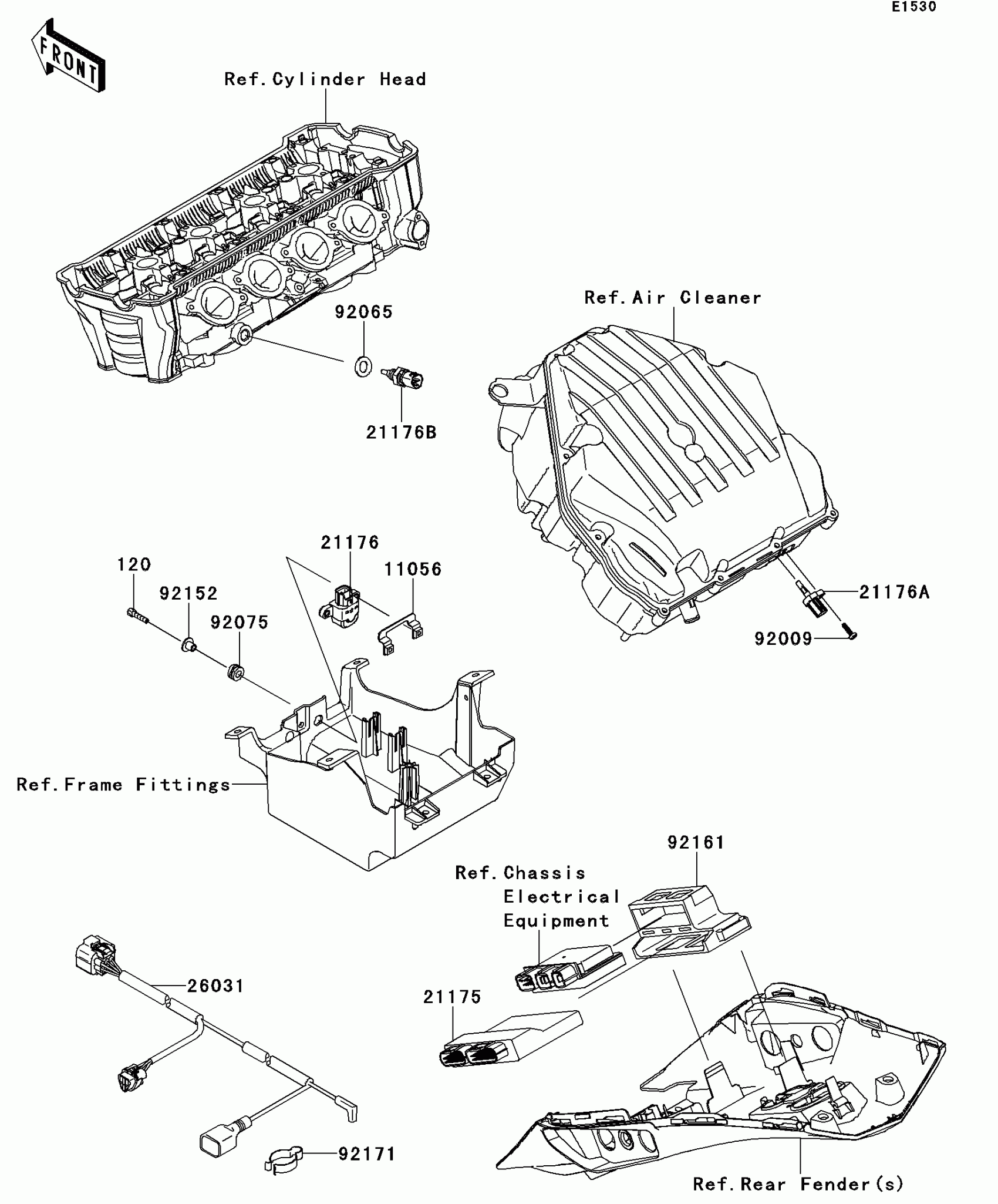

Kawasaki NINJA® 1000 ABS Fuel Injection Diagram

Description

Price

11056

BRACKET

11056-0124

$7.24

120

BOLT-SOCKET,5X25

120CA0525

$4.71

21175

CONTROL UNIT-ELECTRONIC

21175-1248

$1,246.31

21175A

CONTROL UNIT-ELECTRONIC

21175-1249

$1,246.31

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,OXYGEN

21176-0132

$232.92

26031

HARNESS,SUB

26031-2160

$60.51

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92161

DAMPER

92161-0356

$25.46

92171

CLAMP,CABLE

92171-1283

$10.92
