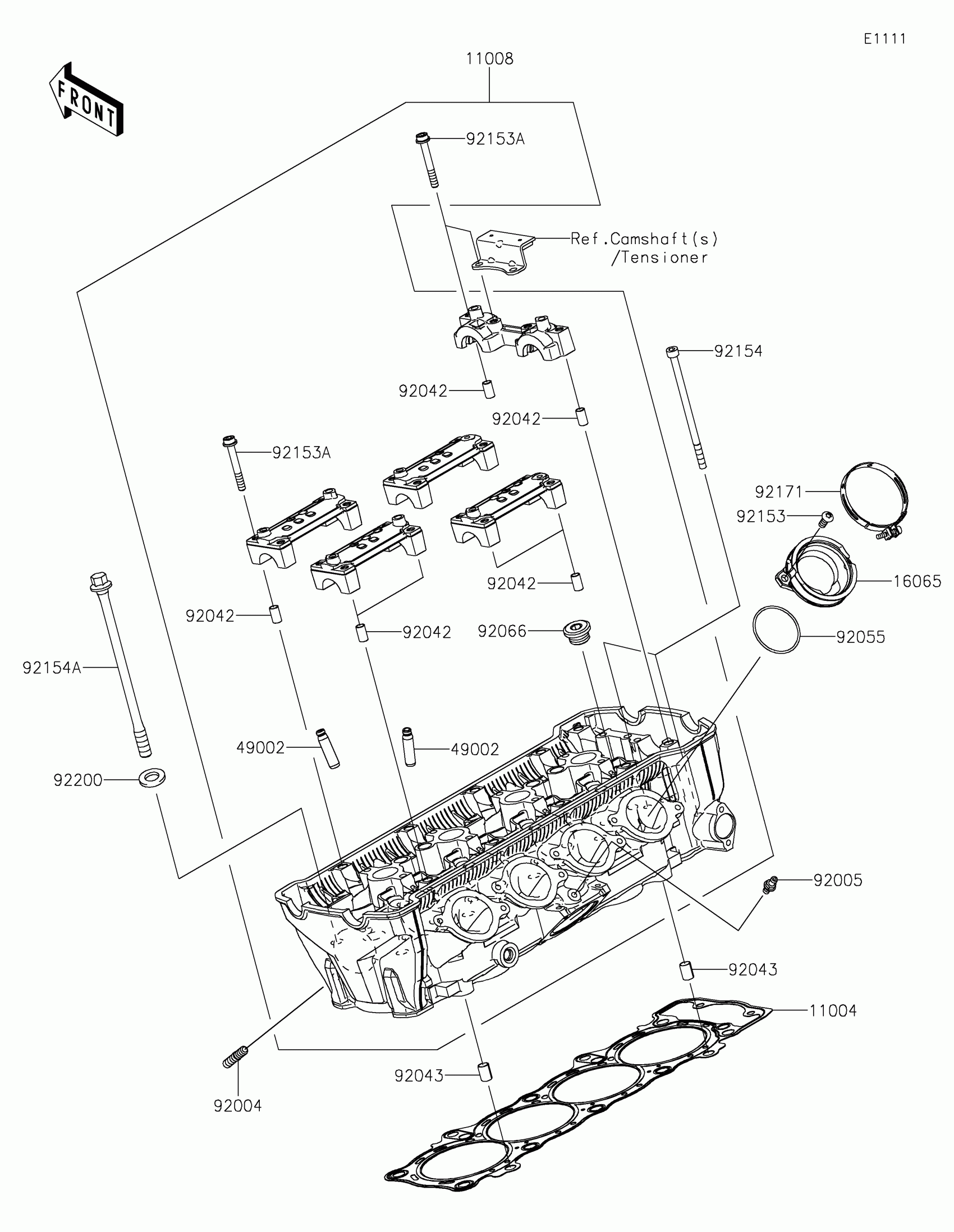

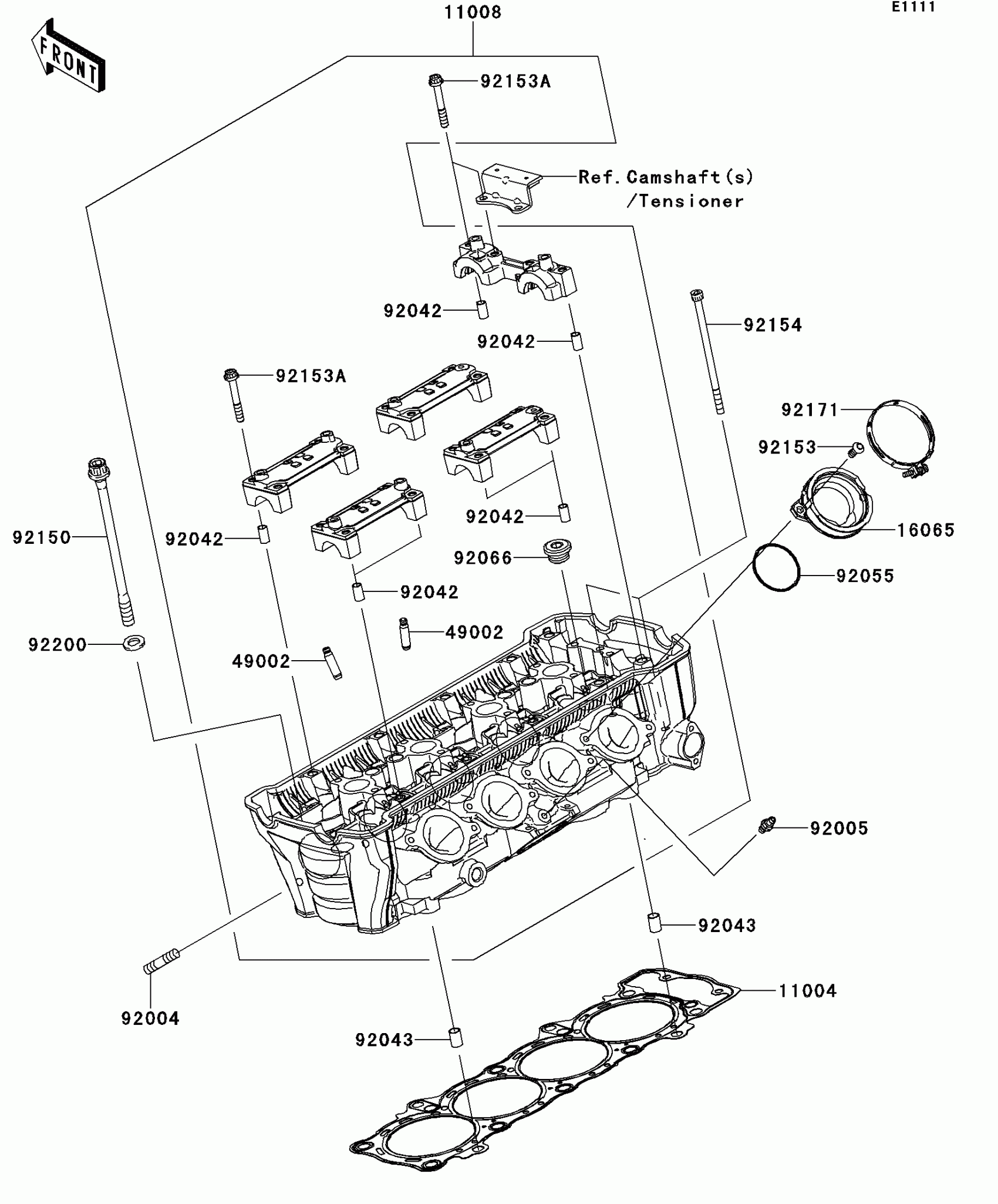

Find the part on the Cylinder Head diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0084

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0171

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0067

1
Out of stock

49002

GUIDE-VALVE

49002-0009

1
Out of stock

92004

STUD,8X18

92004-0049

1
Out of stock

92005

FITTING

92005-1273

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,42X1.9

92055-1536

1
Out of stock

92066

PLUG,18X10

92066-0016

1
Out of stock

92150

BOLT,10X165

92150-1368

1
Out of stock

92153

BOLT,TORX,6X14

92153-0406

1
Out of stock

92153A

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,SOCKET,6X115

92154-0205

1
Out of stock

92171

CLAMP,60MM

92171-0729

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0114

1
Out of stock
