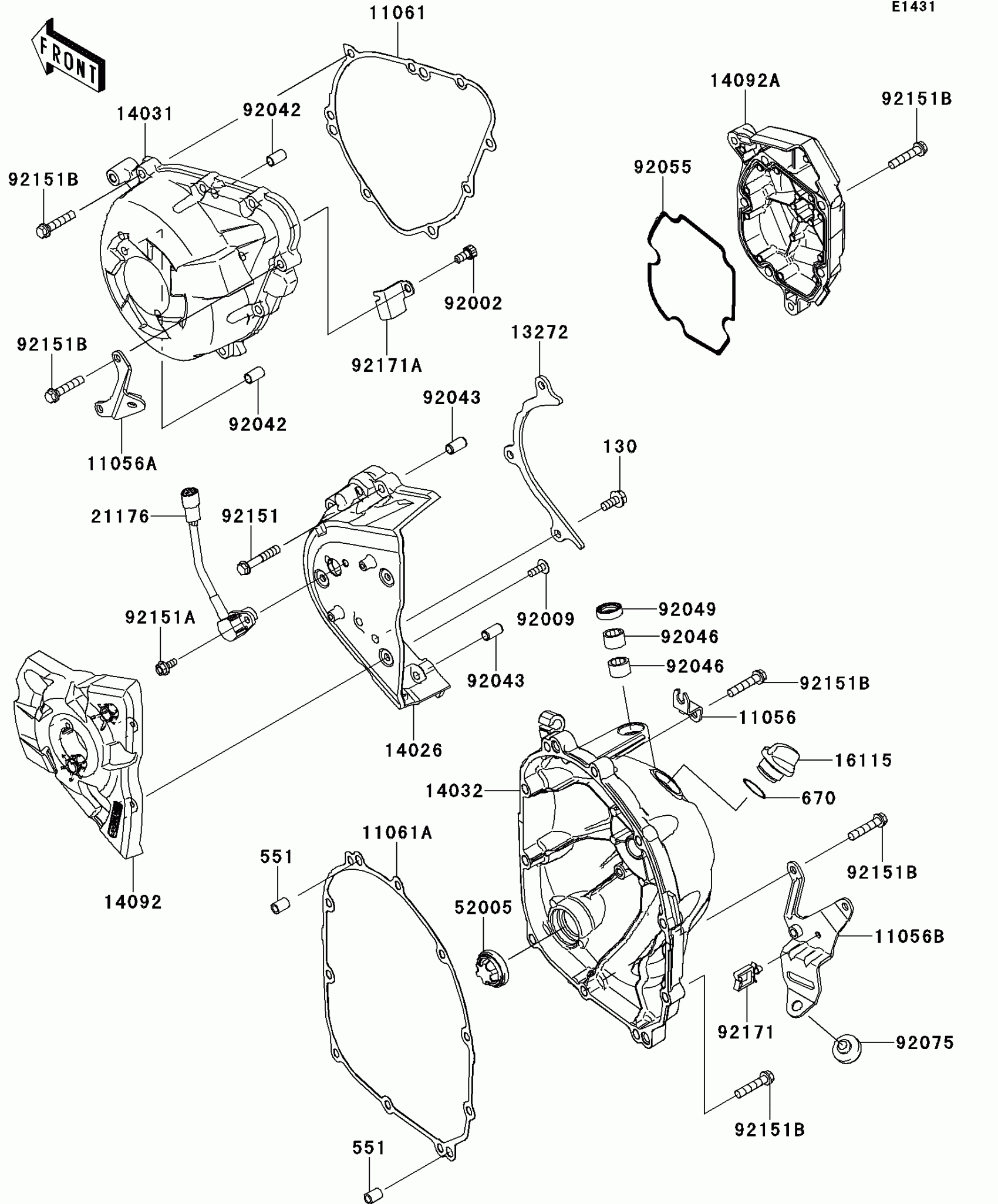

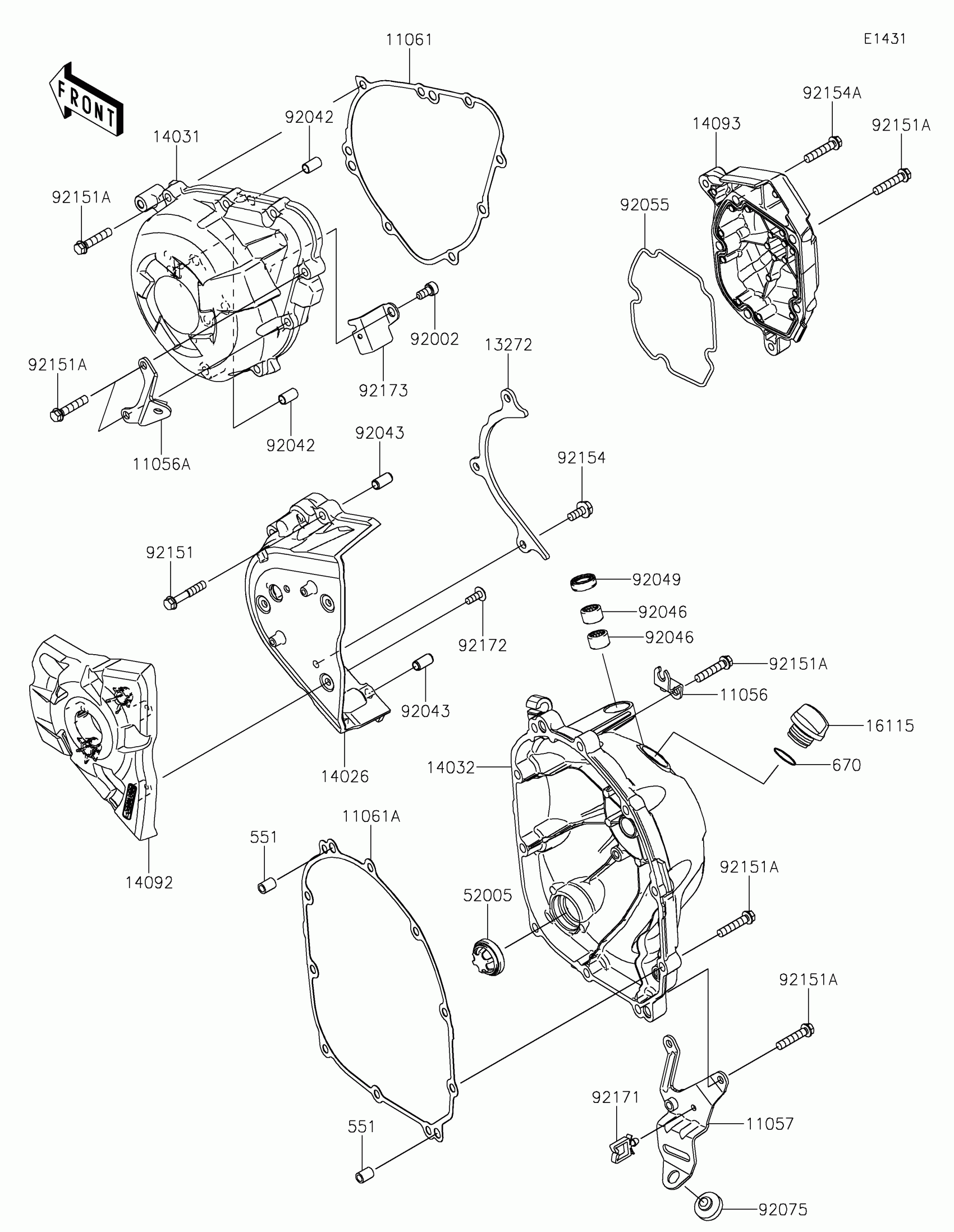

Kawasaki NINJA® 1000 ABS Engine Cover(s) Diagram

#

Description
Price

11056

BRACKET

11056-0787

$3.49

11056A

BRACKET

11056-0788

$5.97

11056B

BRACKET

11056-1091

$10.63

11061

GASKET,GENERATOR COVER

11061-0403

$13.29

11061A

GASKET,CLUTCH COVER

11061-0404

$21.15

13272

PLATE

13272-0859

$14.78

14026

COVER-CHAIN

14026-0080

$171.82

14031

COVER-GENERATOR

14031-0131

Unavailable

14032

COVER-CLUTCH

14032-0140

Unavailable

14092

COVER,OUTER

14092-0032

$14.64

14092A

COVER,PULSER

14092-0175

$60.46

16115

CAP-OIL FILLER

16115-1053

$9.28

21176

SENSOR,SPEED

21176-0045

$134.28

52005

GAUGE

52005-1120

$18.41

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92055

RING-O,PULSER COVER

92055-0199

$7.30

92075

DAMPER RUBB MAIN STND

92075-005

$3.29

92151

BOLT,6X35

92151-1135

$3.19

92151A

BOLT,FLANGED,5X12

92151-1305

$1.20

92151B

BOLT,6X30

92151-1873

$3.55

92171

CLAMP

92171-0290

$3.29

92171A

CLAMP

92171-0708

$3.66

130

BOLT-FLANGED,6X14

130BA0614

$0.97

551

PIN-DOWEL,8X14

551A0814

$0.93

670

O RING,20MM

670B2020

$0.97
