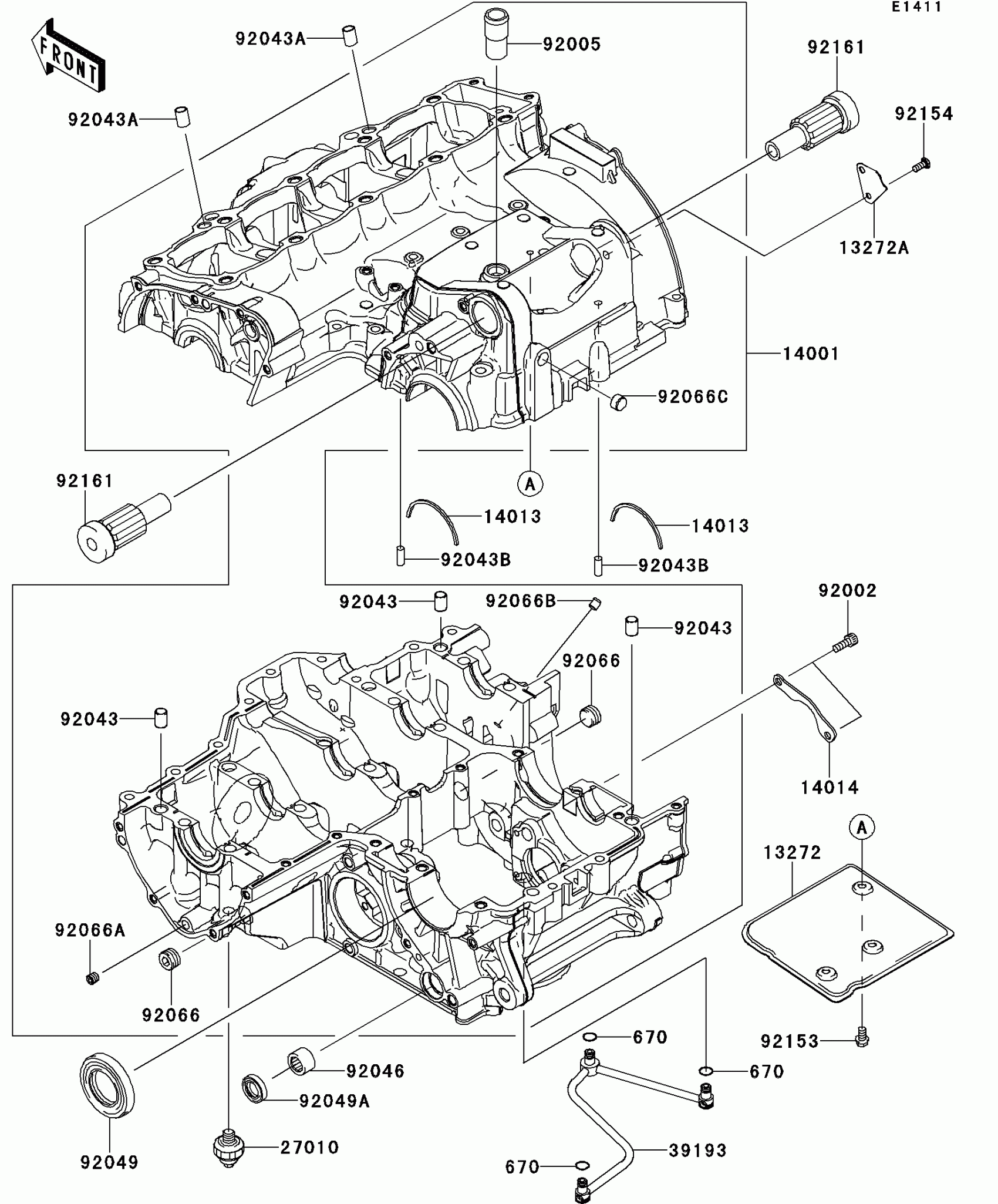

Kawasaki NINJA® 1000 ABS Crankcase Diagram

Description

Price

13272

PLATE,BREATHER,UPP

13272-0698

$9.58

13272A

PLATE,BREATHER,SIDE

13272-0699

$3.99

14001A

SET-CRANKCASE

14001-0708

$1,860.50

14013

RING-POSITION

14013-1051

$3.96

14014

PLATE-POSITION

14014-0036

$5.95

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

39193

PIPE-OIL

39193-0054

$50.95

670

O RING

670D1505

$4.31

92005

FITTING,BREATHER

92005-1238

$11.29

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,8.2X10X14

92043-1264

$0.64

92043B

PIN,6X16

92043-1690

$5.00

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL,TC32578

92049-1474

$18.44

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92062

NOZZLE

92062-0046

$5.23

92066

PLUG

92066-0836

$4.87

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG

92066-1110

$6.51

92153

BOLT,6X10

92153-0381

$2.80

92154

BOLT,TORX,5X12

92154-0299

$2.06

92154A

BOLT,SOCKET,6X16

92154-0484

$1.63

92161

DAMPER

92161-0801

$26.98
