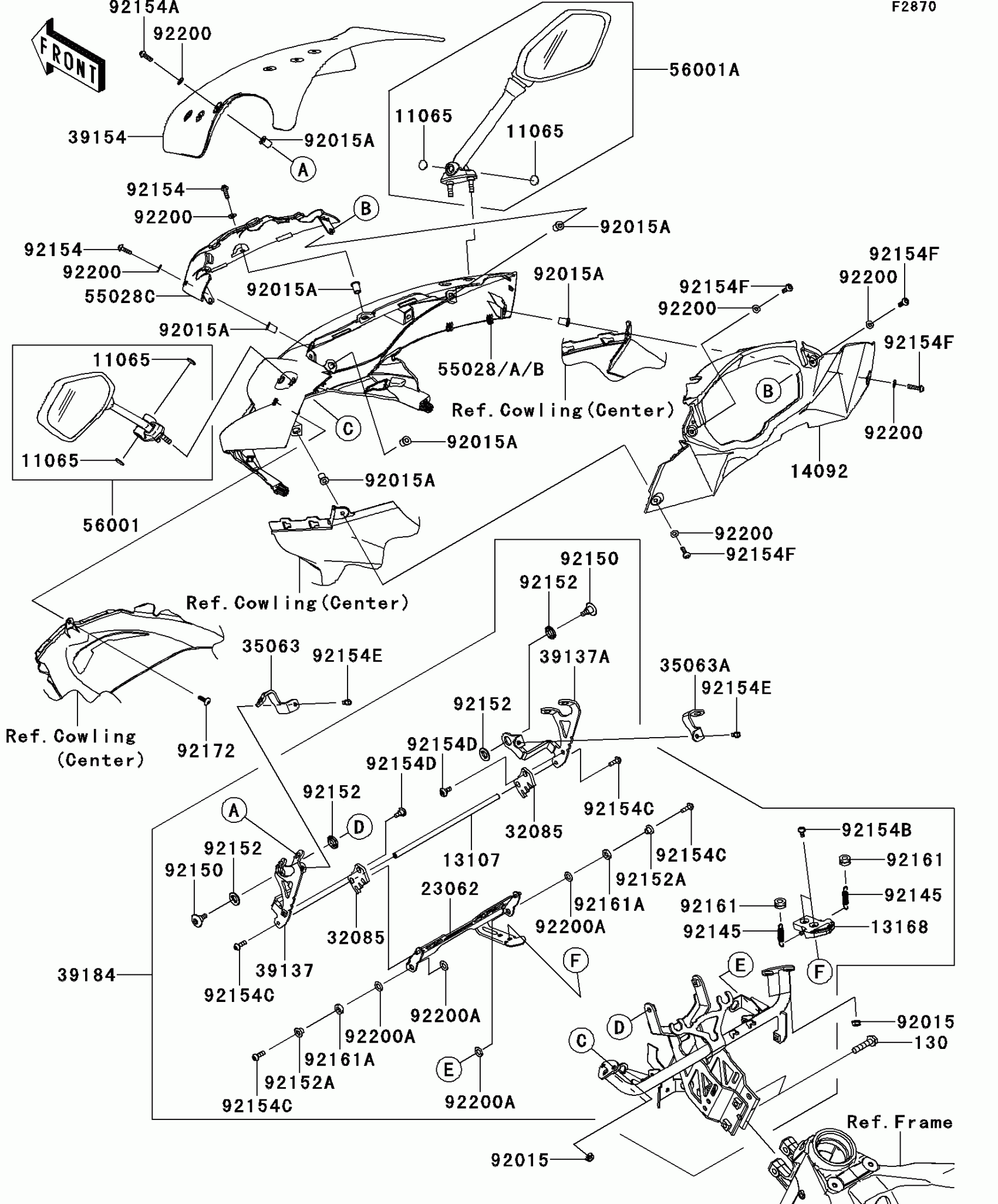

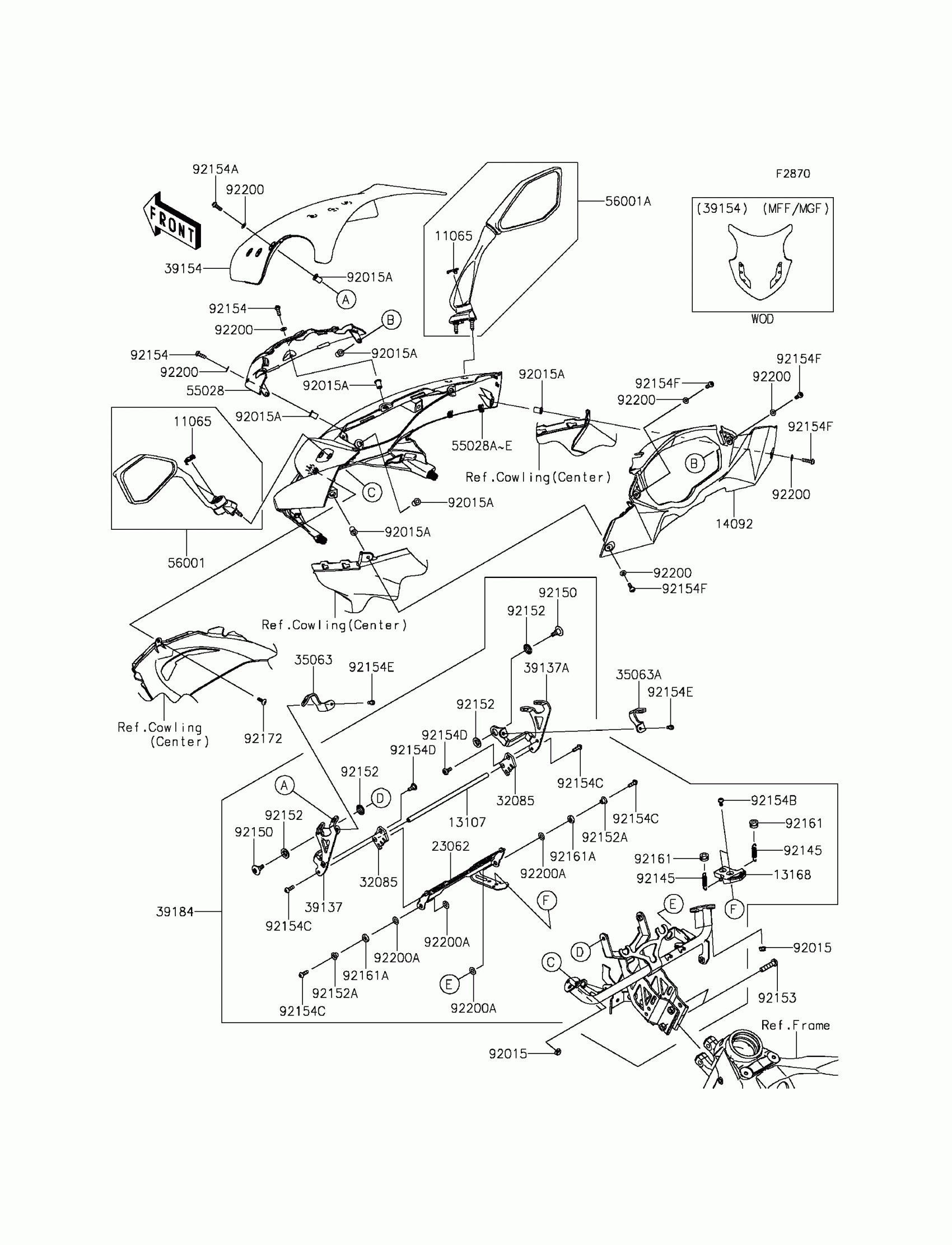

Kawasaki NINJA® 1000 ABS Cowling(Upper) Diagram

#

Description
Price

11065

CAP

11065-0787

$2.34

13107

SHAFT

13107-0241

$66.73

13168

LEVER,ADJUST

13168-0211

$15.61

14092

COVER,METER,F.BLACK

14092-0792-6Z

$136.86

23062

BRACKET-COMP

23062-0136

$54.62

32085

STOPPER

32085-0201

$15.04

35063

STAY,LH

35063-0738

$12.77

35063A

STAY,RH

35063-0739

$12.77

39137

STAY-COMP,LH

39137-0064

$42.92

39137A

STAY-COMP,RH

39137-0065

$42.92

39154

WINDSHIELD

39154-0052

$181.62

39184

BRACKET-ASSY,WINDSHIELD

39184-0703

Unavailable

55028A

COWLING,UPP,P.S.WHITE

55028-0343-25Y

Unavailable

55028B

COWLING,UPP,M.S.BLACK

55028-0343-660

Unavailable

55028C

COWLING,CNT,F.BLACK

55028-0353-6Z

$64.55

56001

MIRROR-ASSY,LH

56001-0231

$73.54

56001A

MIRROR-ASSY,RH

56001-0232

$73.54

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92145

SPRING

92145-0805

$3.32

92150

BOLT,SOCKET,6MM

92150-1154

$7.84

92152

COLLAR,10X20X3.75

92152-0913

$17.91

92152A

COLLAR,5.6X8X7.8

92152-1506

$1.19

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,SOCKET,5X10

92154-0211

$2.12

92154C

BOLT,SOCKET,5X16

92154-0287

$2.41

92154D

BOLT,SOCKET,5X14

92154-0427

$3.35

92154E

BOLT,SOCKET,5X12

92154-0503

$1.63

92154F

BOLT,SOCKET,5X20

92154-0829

$2.67

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER,8.2X15X3

92161-0998

$1.19

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,8.2X15X1

92200-0742

$1.63

130

BOLT-FLANGED,8X35

130CB0835

$4.49
