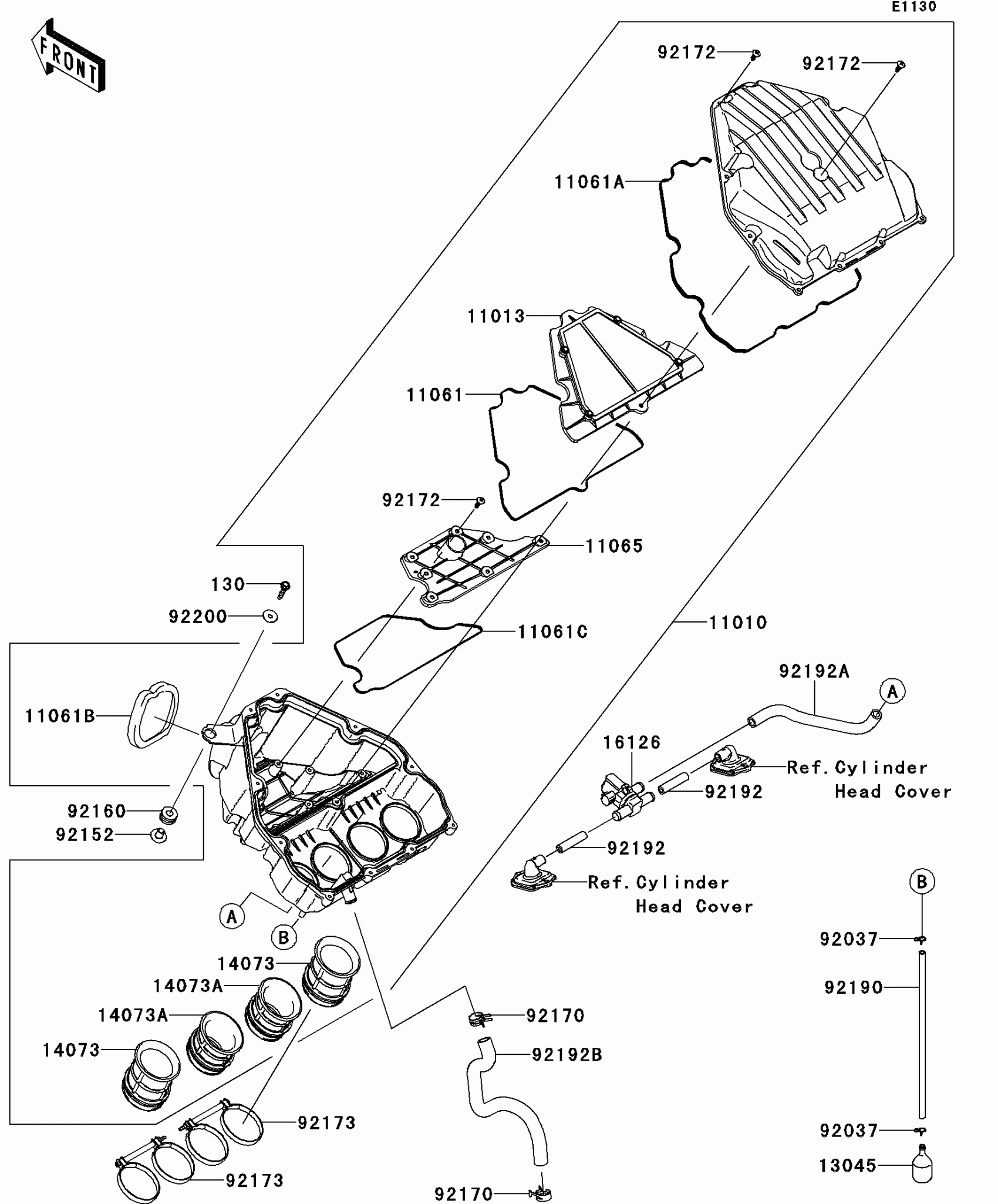

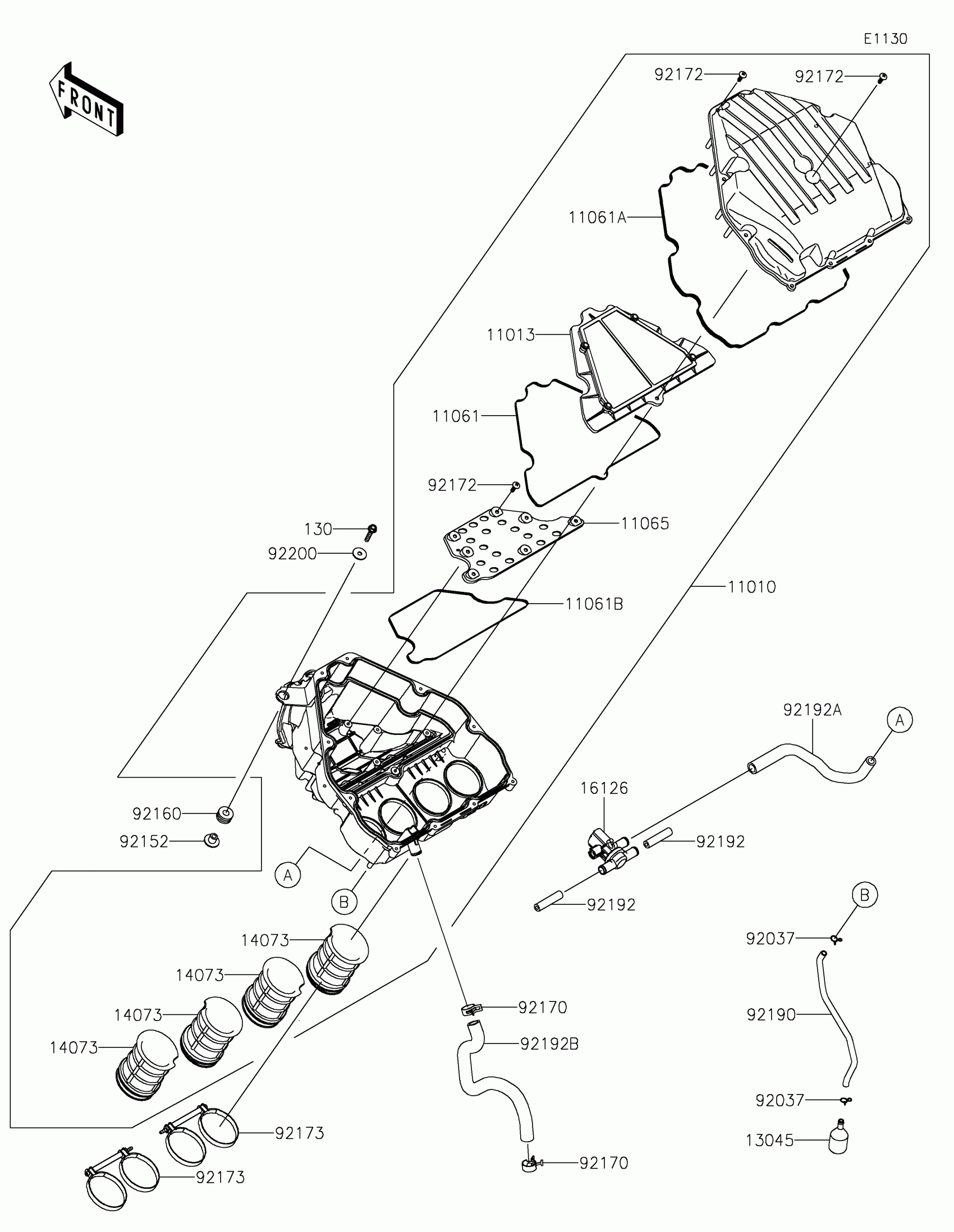

Kawasaki NINJA® 1000 ABS Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0214

$315.80

11013

ELEMENT-AIR FILTER

11013-0712

$46.45

11061

GASKET,ELEMENT

11061-0405

$6.89

11061A

GASKET,CASE

11061-0406

$9.50

11061B

GASKET,FRAME

11061-0407

$9.95

11061C

GASKET

11061-0424

$6.89

11065

CAP

11065-0366

$43.92

13045

RECEIVER-OIL

13045-1057

$9.82

14073

DUCT,#1

14073-0278

$15.18

14073A

DUCT,#2

14073-0279

$15.18

16126

VALVE,AIR SWITCHING

16126-1437

$185.64

92037

CLAMP

92037-1712

$5.00

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92170

CLAMP

92170-1060

$8.10

92172

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0115

$22.59

92190

TUBE,6X9X300

92190-1253

$5.54

92192

TUBE,HEAD ASV

92192-0843

$2.76

92192A

TUBE,ASV-A/C

92192-0844

$14.58

92192B

TUBE,BLOWBY

92192-0845

$21.13

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X30

130BB0630

$4.43
