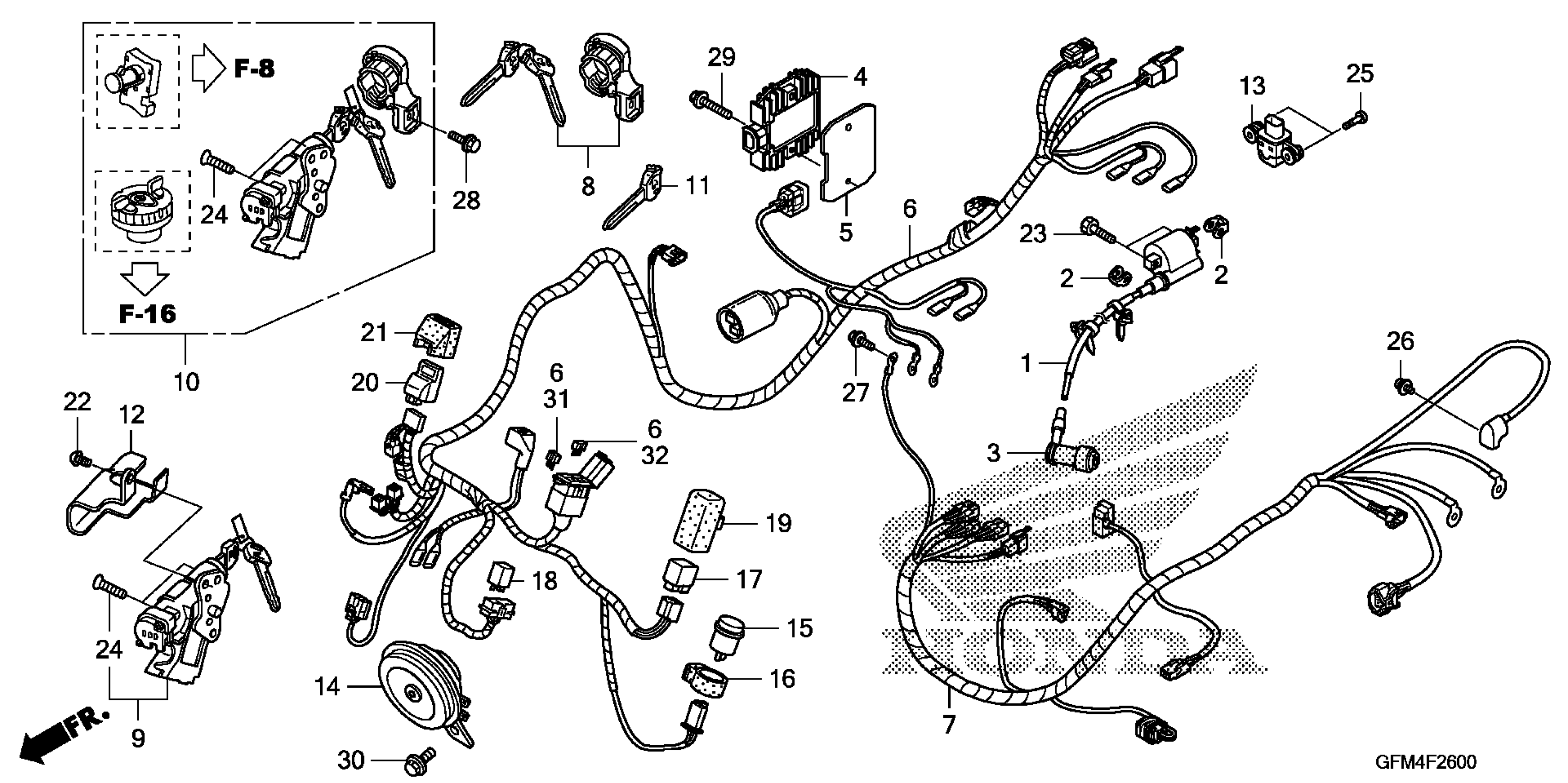

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION This part replaces 30510-GFM-890.

30510-GFM-901

$63.72

1

COIL, IGNITION

30510-GFM-901

$63.72

2

SPACER, IGNITION COIL

30520-GFM-900

$2.61

3

CAP ASSY., NOISE SUPPRESSOR

30700-GFM-891

$18.38

4

RECTIFIER ASSY., REGULATE This part replaces 31600-GFM-890.

31600-GFM-901

$180.80

4

RECTIFIER ASSY., REGULATE

31600-GFM-901

$180.80

5

PLATE, REGULATOR

31601-GFM-970

$3.75

6

WIRE HARNESS

32100-GFM-A00

$365.30

7

SUB-HARNESS, ENGINE

32101-GFM-K00

$138.20

8

SHUTTER SET, KEY (BREP KEYTOP 1REP 0) | (Optional).

35011-GFM-B10

$86.31

9

SWITCH ASSY. SET, COMBINATION & LOCK This part replaces 35012-GFM-B10.

35012-GFM-B11

$183.56

9

SWITCH ASSY. SET, COMBINATION & LOCK

35012-GFM-B11

$183.56

10

KEY & SCREW SET This part replaces 35014-GFM-A00.

35014-GFM-A02

$243.05

10

KEY & SCREW SET This part replaces 35014-GFM-A01.

35014-GFM-A02

$243.05

11

KEY, BLANK (B1KEYTOP2REPORDER) (NOT AVAILABLE) | (Optional).

35121-GFM-B10

Unavailable

12

PROTECTOR, COMBINATION SWITCH

35125-GFM-960

$11.59

13

SENSOR ASSY., BANK ANGLE

35160-GFM-K01

$72.82

14

HORN (HIGH)

38110-MBB-000

$67.33

15

RELAY, AUDIBLE PILOT & TURN SIGNAL

38301-KVJ-840

Unavailable

16

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

17

RELAY, STARTER This part replaces 38501-GFM-890.

38501-GFM-901

$30.43

17

RELAY, STARTER

38501-GFM-901

$30.43

18

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

18

RELAY, POWER (MICRO ISO 4P) This part replaces 38502-GFM-890.

38501-MCS-G01

$10.76

19

SUSPENSION, STARTER RELAY

38506-GFM-890

$2.34

20

PGM-FI UNIT

38770-GFM-A01

$249.67

21

SUSPENSION, ENGINE CONTROL UNIT

38771-GFM-900

$2.51

22

BOLT, ONE-WAY (6X10)

90103-GFM-960

$2.67

23

BOLT, HEX. (6X22)

90106-GFM-900

$2.05

24

SCREW, FLAT (6X22)

90164-GEE-003

$1.49

24

SCREW, FLAT (6X22)

90164-GFC-890

$1.49

25

SCREW, PAN (4X20)

93500-04020-0H

$1.49

26

SCREW-WASHER (4X6)

93892-04006-08

$1.49

27

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

28

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

31

FUSE, MINI (10A)

98200-41000

$1.49

32

FUSE, MINI (20A)

98200-42000

$1.49
