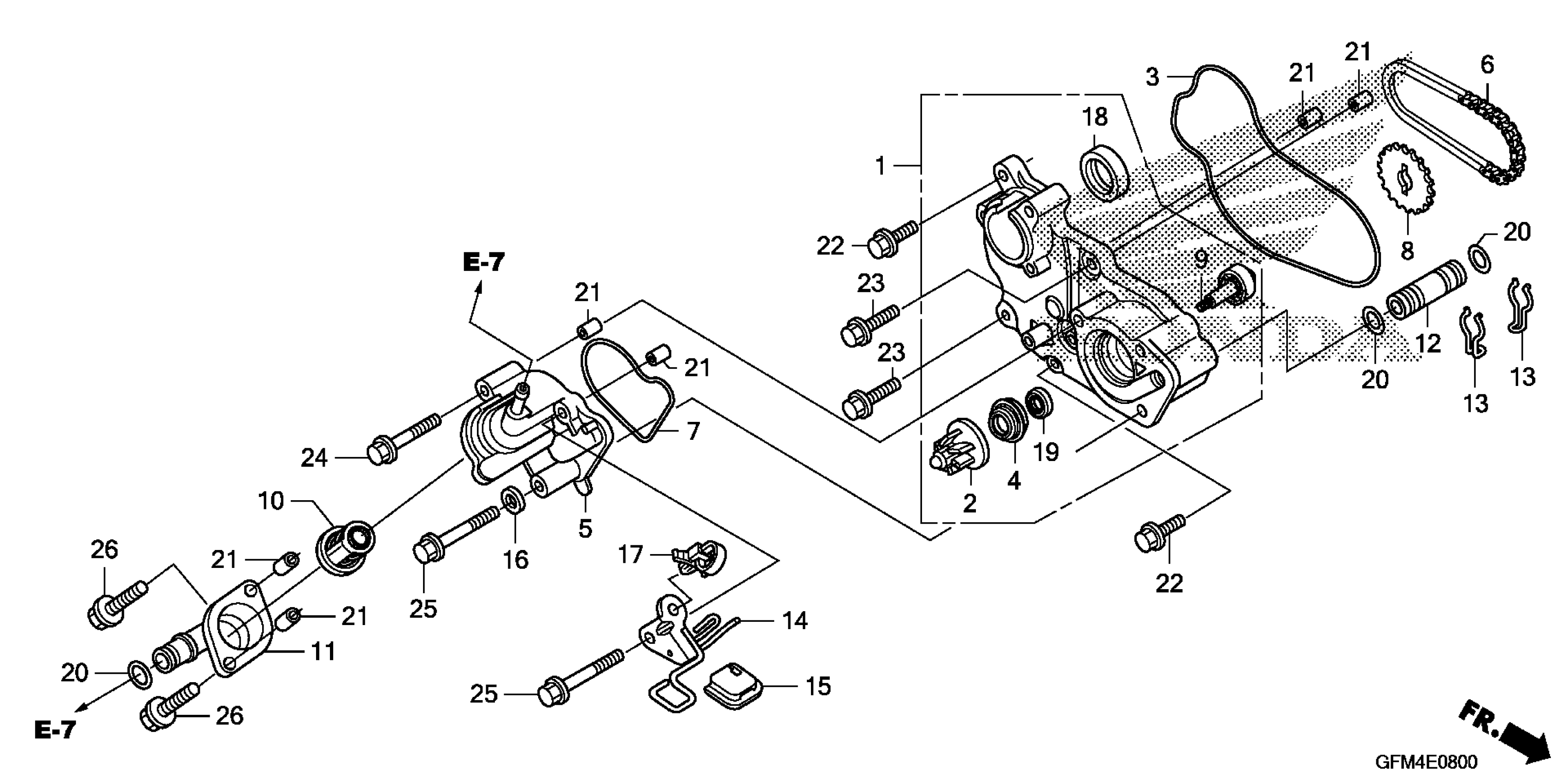

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 WATER PUMP Diagram

#

Description
Price

1

PUMP COMP,WATER This part replaces 19210-GFM-B20.

19210-GFM-890

$173.33

2

IMPELLER, WATER PUMP

19215-GFM-900

$37.13

3

GASKET, STATOR BASE

19216-GFM-970

$7.50

4

SEAL, MECHANICAL

19217-MZ0-760

$50.55

5

COVER, WATER PUMP

19221-GFM-900

$77.28

6

CHAIN, WATER PUMP DRIVE (DID25) (40L) (DAIDO)

19225-GFM-971

$28.36

7

GASKET, WATER PUMP COVER

19226-GFM-970

$4.51

8

SPROCKET, WATER PUMP DRIVEN (19T)

19232-GFM-900

$21.93

9

SHAFT, WATER PUMP

19240-GFM-B20

$59.78

10

THERMOSTAT

19300-GEE-003

$39.78

11

COVER, THERMOSTAT

19315-GFM-900

$27.83

12

PIPE, WATER

19422-GFM-900

$14.58

13

CLIP, RING

19505-GFM-970

$1.17

14

STAY, OXYGEN SENSOR & CLAMP

31332-GFM-970

$11.38

15

GUARD, WIRE HARNESS

31333-GFM-900

$3.67

16

WASHER, SEALING (6.5MM)

90463-GFM-900

$1.23

17

CABLE, STRAP

90648-GFM-971

$2.09

18

OIL SEAL (19.8X30X7)

91201-KCW-880

$4.09

19

OIL SEAL (12X24X5)

91203-GFM-890

$4.33

20

O-RING (12.5X2.4)

91301-KVB-900

$0.59

21

PIN, DOWEL (8X10)

94301-08100

$2.04

22

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

24

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

25

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

26

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
