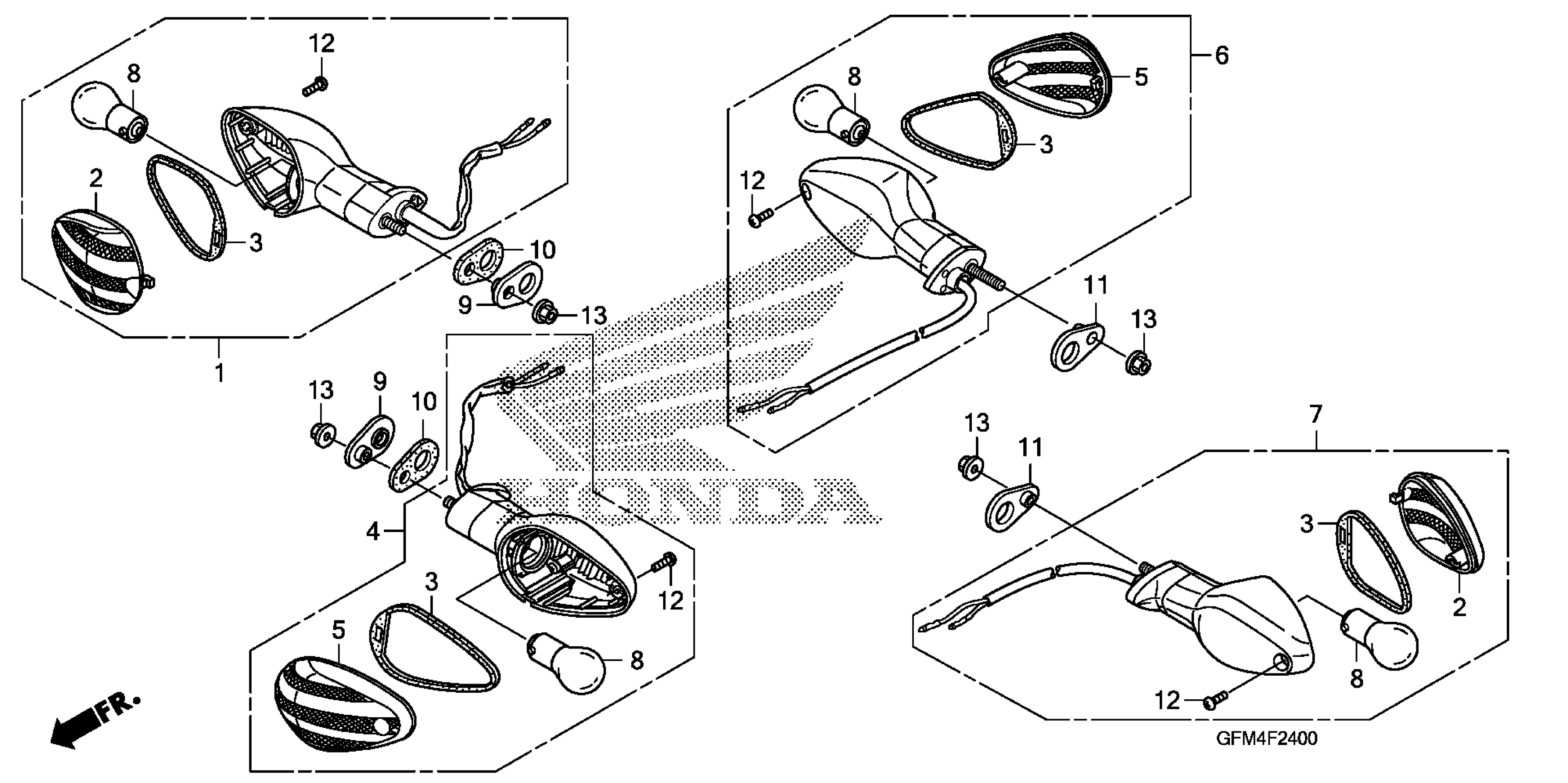

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (COO) This part replaces 33400-GFM-305.

33400-GFM-325

$113.56

1

TURN SIGNAL ASSY., R. FR. (COO) This part replaces 33400-GFM-315.

33400-GFM-325

$113.56

1

TURN SIGNAL ASSY., R. FR. (COO)

33400-GFM-325

$113.56

2

LENS, R. TURN SIGNAL (R. FR./L. RR.) This part replaces 33402-KTG-305.

33402-MFJ-A41

$12.06

2

LENS, R. TURN SIGNAL (R. FR./L. RR.)

33402-MFJ-A41

$12.06

3

GASKET, LENS

33407-MFJ-A41

$3.13

4

TURN SIGNAL ASSY., L. FR. (COO) This part replaces 33450-GFM-305.

33450-GFM-325

$113.56

4

TURN SIGNAL ASSY., L. FR. (COO) This part replaces 33450-GFM-315.

33450-GFM-325

$113.56

4

TURN SIGNAL ASSY., L. FR. (COO)

33450-GFM-325

$113.56

5

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)

33452-KTG-305

$12.80

5

LENS, L. TURN SIGNAL (L. FR./R. RR.)

33452-MFJ-A41

$10.69

6

TURN SIGNAL, R. RR. This part replaces 33600-GFM-305.

33600-GFM-325

$113.56

6

TURN SIGNAL, R. RR. This part replaces 33600-GFM-315.

33600-GFM-325

$113.56

7

TURN SIGNAL ASSY., L. RR. (COO) This part replaces 33650-GFM-305.

33650-GFM-325

$113.56

7

TURN SIGNAL ASSY., L. RR. (COO) This part replaces 33650-GFM-315.

33650-GFM-325

$113.56

7

TURN SIGNAL ASSY., L. RR. (COO)

33650-GFM-325

$113.56

8

BULB, TURN SIGNAL (12V 21W)

34905-MAS-601

$3.17

9

PLATE, FR. TURN SIGNAL SETTING

53215-GFM-A00

$9.54

10

RUBBER, FR. TURN SIGNAL SETTING

53216-GFM-A00

$8.34

11

PLATE, RR. TURN SIGNAL SETTING

80115-GFM-A00

$8.34

12

SCREW, TAPPING (4X16)

93901-34480

$1.49

13

NUT, FLANGE (6MM)

94050-06070

$1.49
