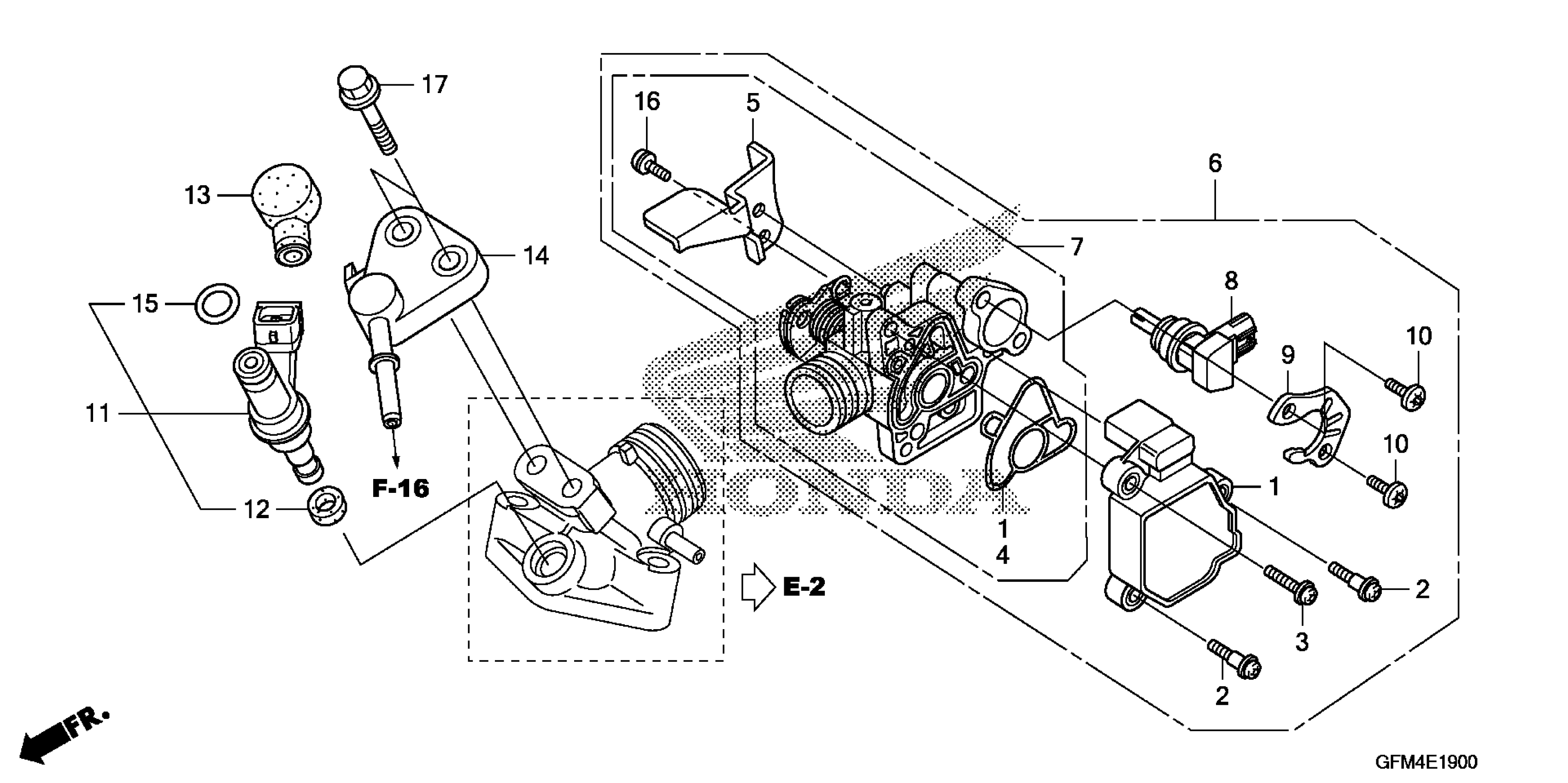

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 THROTTLE BODY Diagram

SENSOR SET

16060-GFZ-003

$90.96

SCREW, TORX (5X8.7)

16081-KPH-701

$2.89

SCREW, TORX (5X17)

16082-KPH-701

$4.87

O-RING, THROTTLE BODY

16083-KTR-941

$1.21

PLATE, STAY

16169-GFM-901

$8.87

BODY ASSY. (GQQ6A A) This part replaces 16400-GFM-K01.

16400-GFM-K02

$223.49

BODY SET

16410-GFM-K01

$136.60

VALVE ASSY., IDLE AIR CONTROL This part replaces 16430-GFM-901.

16430-GFM-902

$71.72

VALVE ASSY., IDLE AIR CONTROL

16430-GFM-902

$71.72

PLATE, IDLE AIR CONTROL VALVE

16432-GFM-901

$5.15

SCREW, TORX

16433-HN8-A61

$0.34

INJECTOR ASSY., FUEL

16450-GFM-K01

$97.28

RING, SEAL

16472-KPH-701

$4.32

DAMPER A, CONNECTOR

16718-GFM-900

$3.24

JOINT, INJECTOR

17565-GFM-900

$6.21

O-RING (7.3X2.2)

91301-GFM-K01

$4.99

SCREW-WASHER (5X12)

93892-05012-08

$1.13

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.13

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
