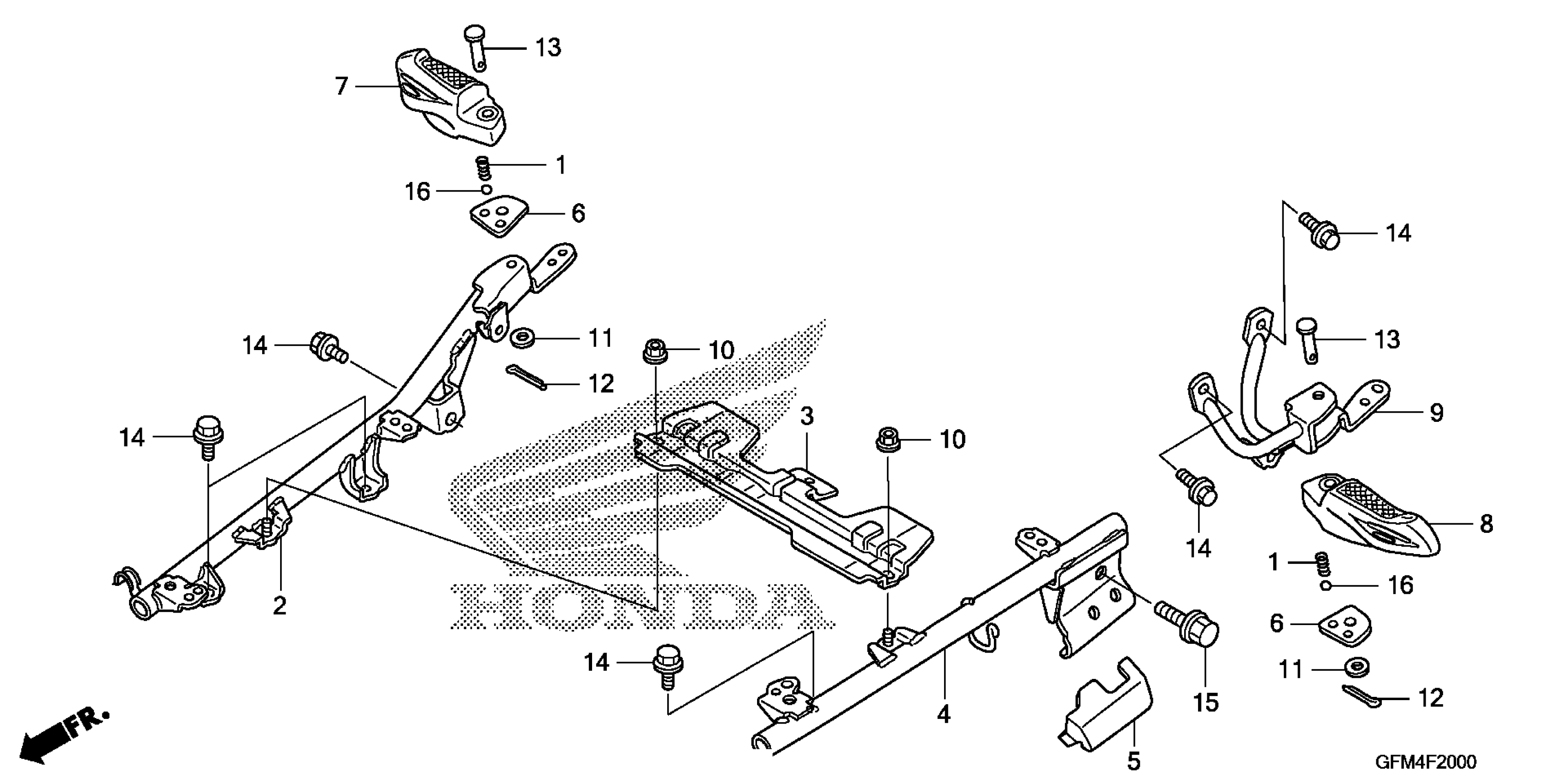

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

STAY, R. FLOOR

50610-GFM-K00

$53.13

3

PLATE, FUEL PUMP GUARD

50616-GFM-970

$18.72

4

STAY, L. FLOOR

50620-GFM-970

$49.71

5

BLIND, FLOOR STAY

50622-GFM-970

$4.78

6

PLATE, PILLION STEP CLICK

50718-GFM-900

$2.90

7

ARM, R. PILLION STEP (COO)

50720-GFM-305

$59.25

8

ARM, L. PILLION STEP (COO)

50730-GFM-305

$60.40

9

BRACKET, L. PILLION STEP

50760-GFM-970

$49.71

10

NUT, FLANGE (6MM)

94050-06080

$0.60

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

11

WASHER, PLAIN (6MM)

94101-06800

Unavailable

12

PIN, SPLIT (1.6X12)

94201-16120

$1.04

13

PIN A, PILLION STEP

95015-81000

$2.04

14

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

15

BOLT, FLANGE (10X25)

95801-10025-07

$3.13

16

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
