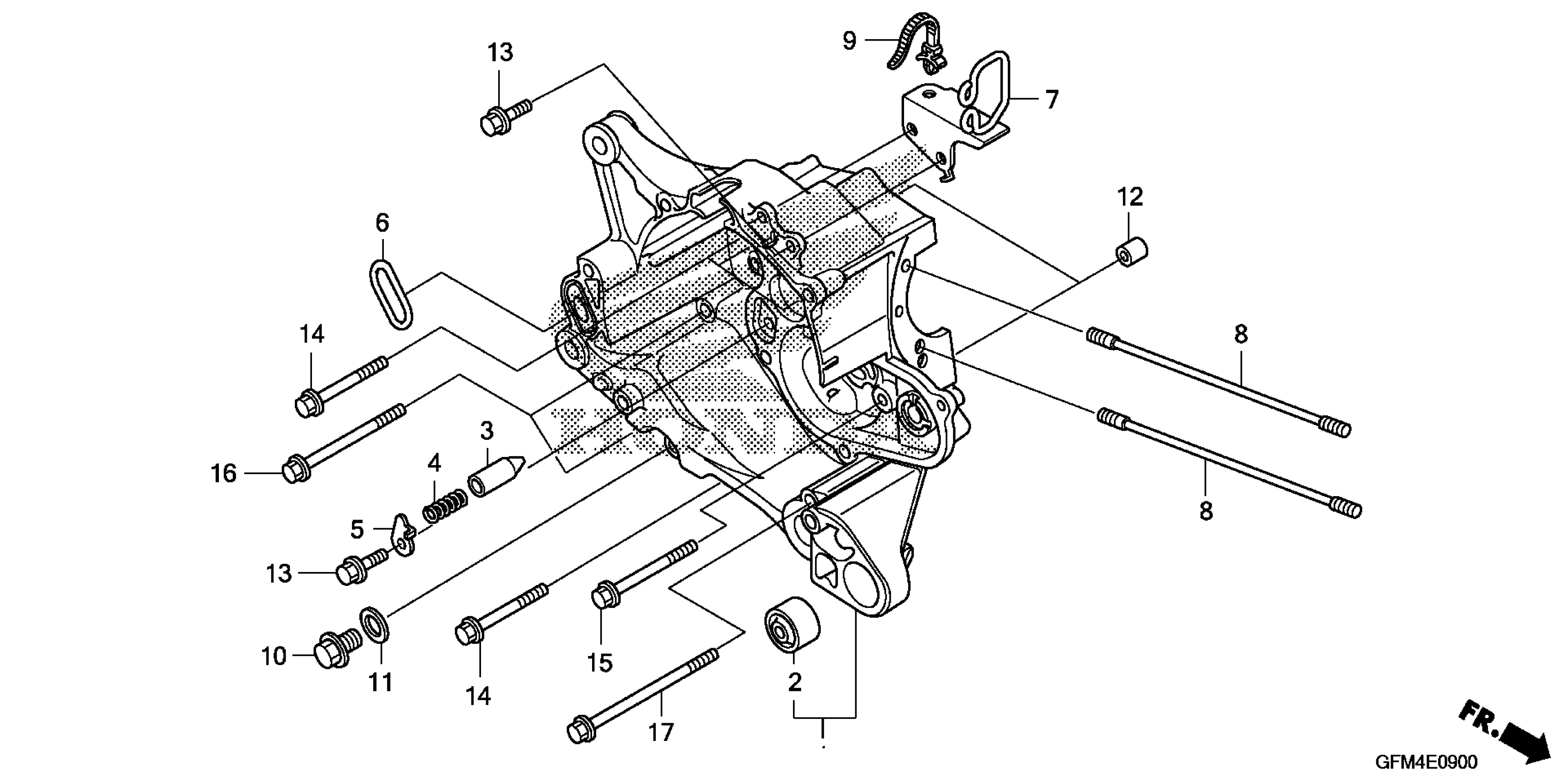

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 RIGHT CRANKCASE Diagram

CRANKCASE, R.

11100-GFM-B20

$209.33

CRANKCASE, R.

11100-GFM-970

$243.00

BUSH, ENGINE HANGER RUBBER This part replaces 11102-GT8-B00.

11102-187-003

$14.82

BUSH, ENGINE HANGER RUBBER

11102-187-003

$14.82

BUSH, ENGINE HANGER RUBBER (HOKUSHIN) This part replaces 11216-GGC-900.

11103-KVB-901

$3.67

PLUG, BEARING PUSH

11115-GFM-900

$4.49

SPRING, BEARING PUSH

11116-GFM-900

$2.08

PLATE, BEARING PUSH

11117-GFM-900

$1.79

GASKET, R. COVER

11336-GFM-900

$3.13

STAY, CONNECTOR & CLAMP

31331-GFM-970

$12.67

BOLT A, STUD (7X193.5)

90031-GFM-970

$10.33

CABLE, STRAP

90648-GFM-971

$2.30

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X20)

94301-08200

$2.25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
