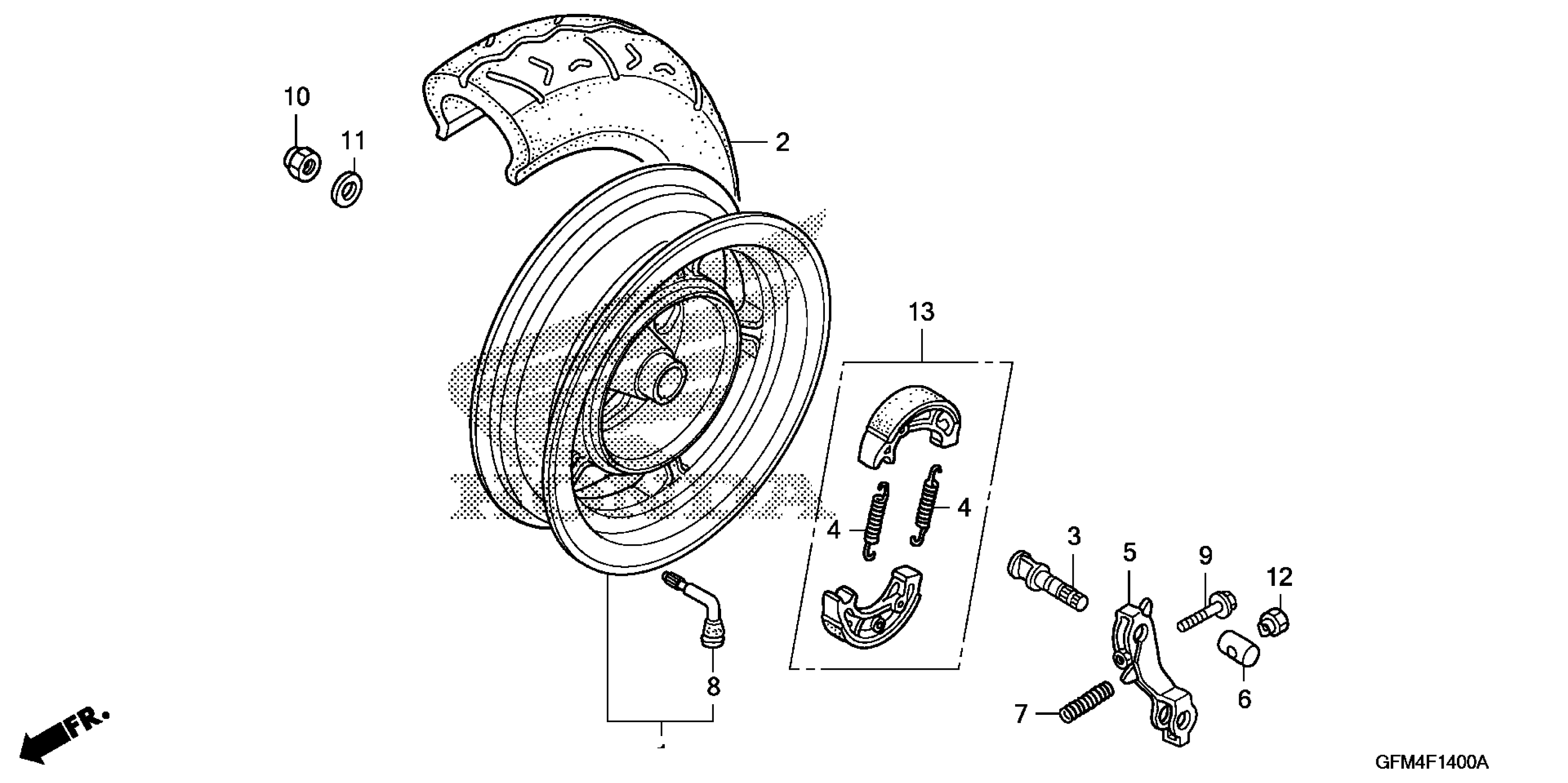

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 REAR WHEEL Diagram

WHEEL SUB-ASSY., RR. *NH295M* (COO) (SPARKLING SILVER METALLIC)

42650-GFM-306ZA

Unavailable

TIRE, RR. (100/90-10 56J) (CHENG SHIN)

42711-GFM-970

$122.05

CAM, RR. BRAKE

43141-GFM-900

$32.19

CAM, RR. BRAKE This part replaces 43141-GFM-970.

43141-GFM-900

$32.19

SPRING, BRAKE SHOE

43151-GFM-970

Unavailable

SPRING, BRAKE SHOE

43151-KCW-870

$2.03

ARM, RR. BRAKE

43410-GFM-970

Unavailable

JOINT B, BRAKE ARM

43453-GFM-970

Unavailable

SPRING, RR. BRAKE ARM

43472-GFM-970

Unavailable

VALVE, RIM (CHENG SHIN)

44753-GFM-970

$6.91

BOLT, FLANGE (6X32)

90112-KVB-900

$0.70

BOLT, FLANGE (6X32) This part replaces 90114-GFM-970.

90112-KVB-900

$0.70

NUT, U (16MM)

90305-KBN-901

$18.07

WASHER (16MM)

90501-KBN-900

$11.15

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

SHOE SET, BRAKE (JB) This part replaces 06430-KRF-B80.

06430-KRF-B90

$31.42

SHOE SET, BRAKE (JB)

06430-KRF-B90

$31.42
