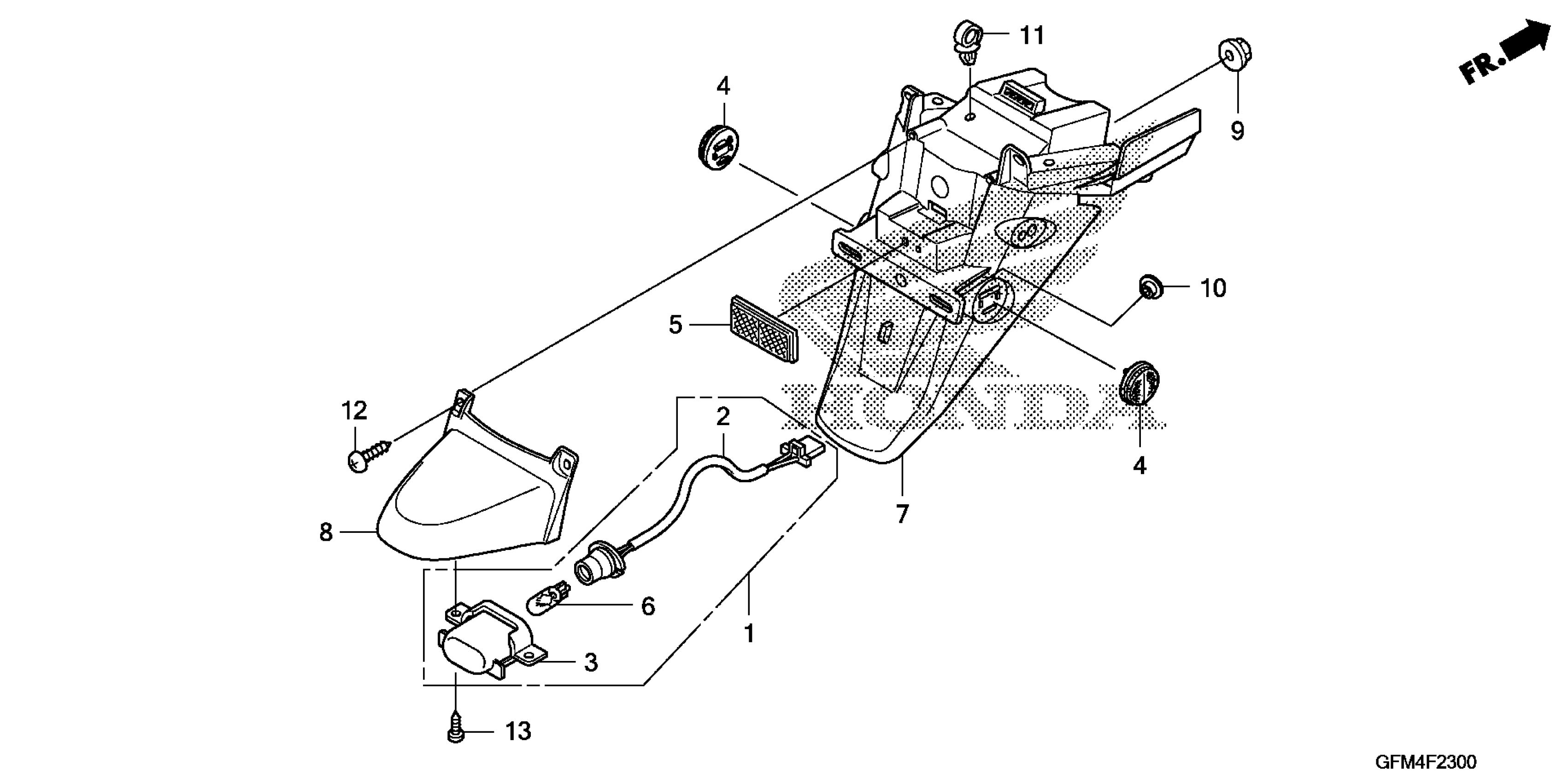

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 REAR FENDER Diagram

#

Description
Price

1

LIGHT ASSY., LICENSE (COO)

33720-GFM-305

$9.75

2

WIRE

33736-GFM-971

$30.33

3

LIGHT, LICENSE

33737-GFM-A01

$6.70

4

REFLECTOR, RR. REFLEX

33741-GS7-671

$14.17

5

REFLECTOR, REFLEX

33742-GFM-971

$21.01

6

BULB, LICENSE LIGHT (12V 5W)

34907-GFM-971

$2.32

7

FENDER, RR.

80105-GFM-A00

$45.96

8

COVER, LICENSE

80121-GFM-900

$12.55

9

NUT, SPECIAL (5MM)

90301-GFM-890

$2.19

10

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

11

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.04

12

SCREW, TAPPING (5X16)

93903-25380

$0.83

13

SCREW, TAPPING (4X12)

93903-34380

$1.93
