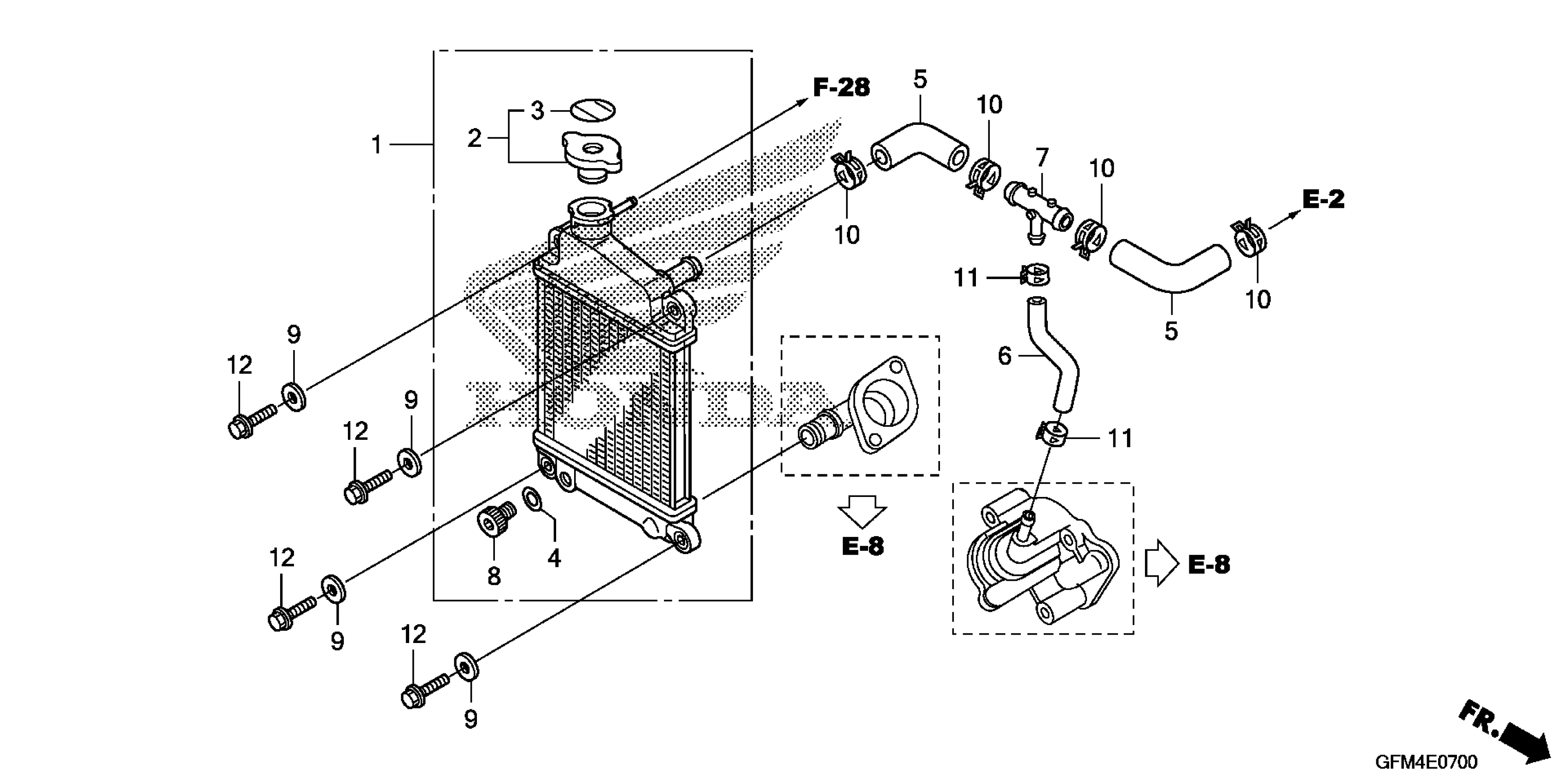

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO)

19010-GFM-305

$161.46

2

CAP, RADIATOR

19037-GEE-710

$27.19

3

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

4

SEAL, DRAIN

19109-GFM-890

$2.54

5

HOSE, WATER

19501-GFM-900

$7.80

6

HOSE, BYPASS

19503-GFM-900

$6.12

7

JOINT, HOSE (THREE-WAY)

19507-GFM-900

$7.52

8

BOLT, DRAIN

90103-GFM-890

$12.10

9

WASHER (6.5X15X1.5)

90403-GFM-970

$1.68

10

CLAMP, WATER HOSE (21MM)

90702-GFM-970

$4.09

11

CLAMP, TUBE (D12.5)

95002-41250-08

$2.30

12

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
