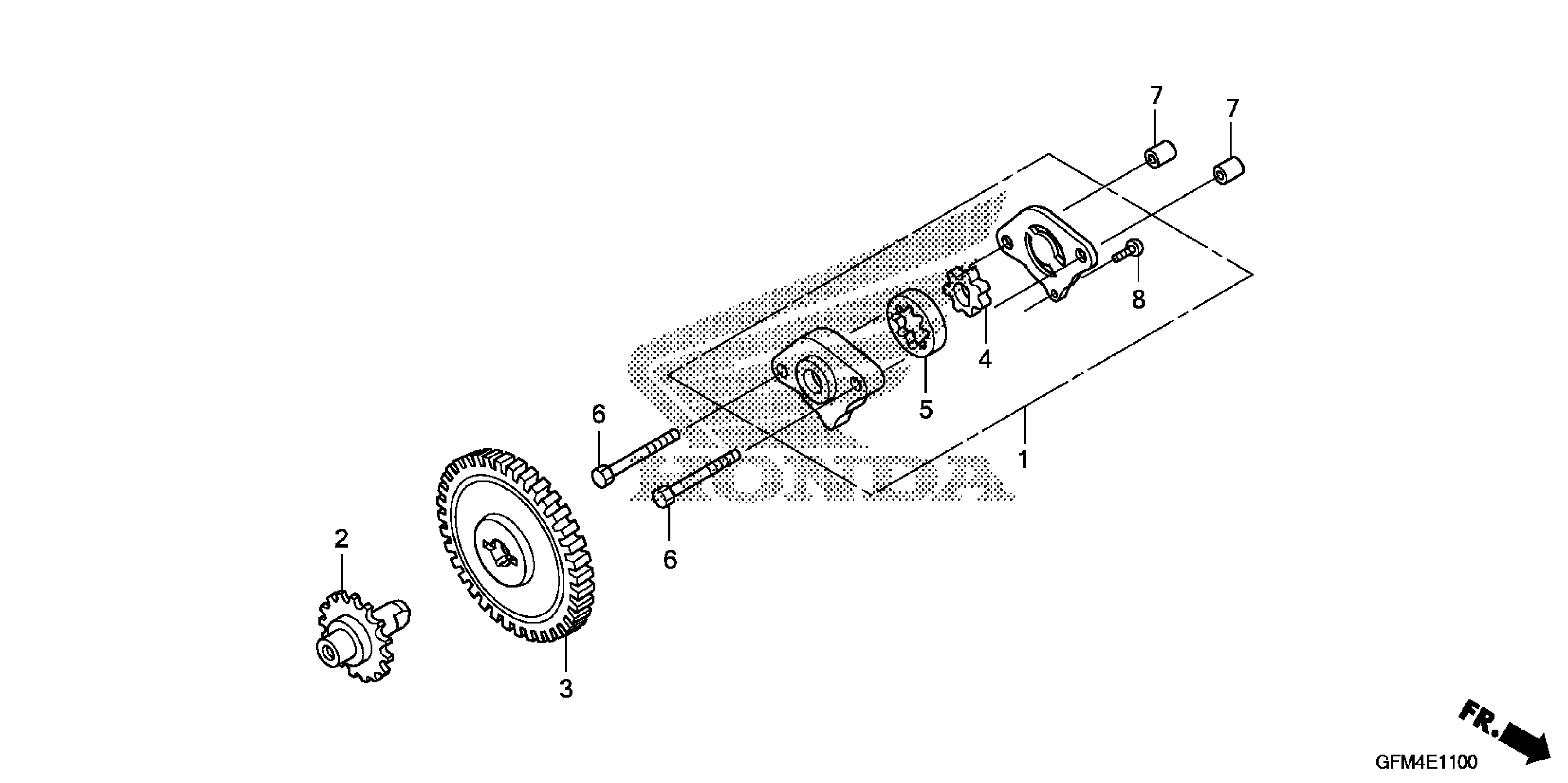

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-GFC-900

$30.69

2

SHAFT, OIL PUMP (17T)

15130-GFM-900

$77.43

3

GEAR, OIL PUMP DRIVEN (33T)

15133-GFM-970

$27.80

4

ROTOR, OIL PUMP (INNER)

15331-GFC-900

$10.64

5

ROTOR, OIL PUMP (OUTER)

15332-GFC-900

$12.80

6

BOLT, HEX. (6X30)

90002-GFM-970

$1.49

7

PIN, DOWEL (8X14)

90701-GF6-000

$4.17

8

SCREW, TAPPING (4X8)

93901-34120

$1.49
