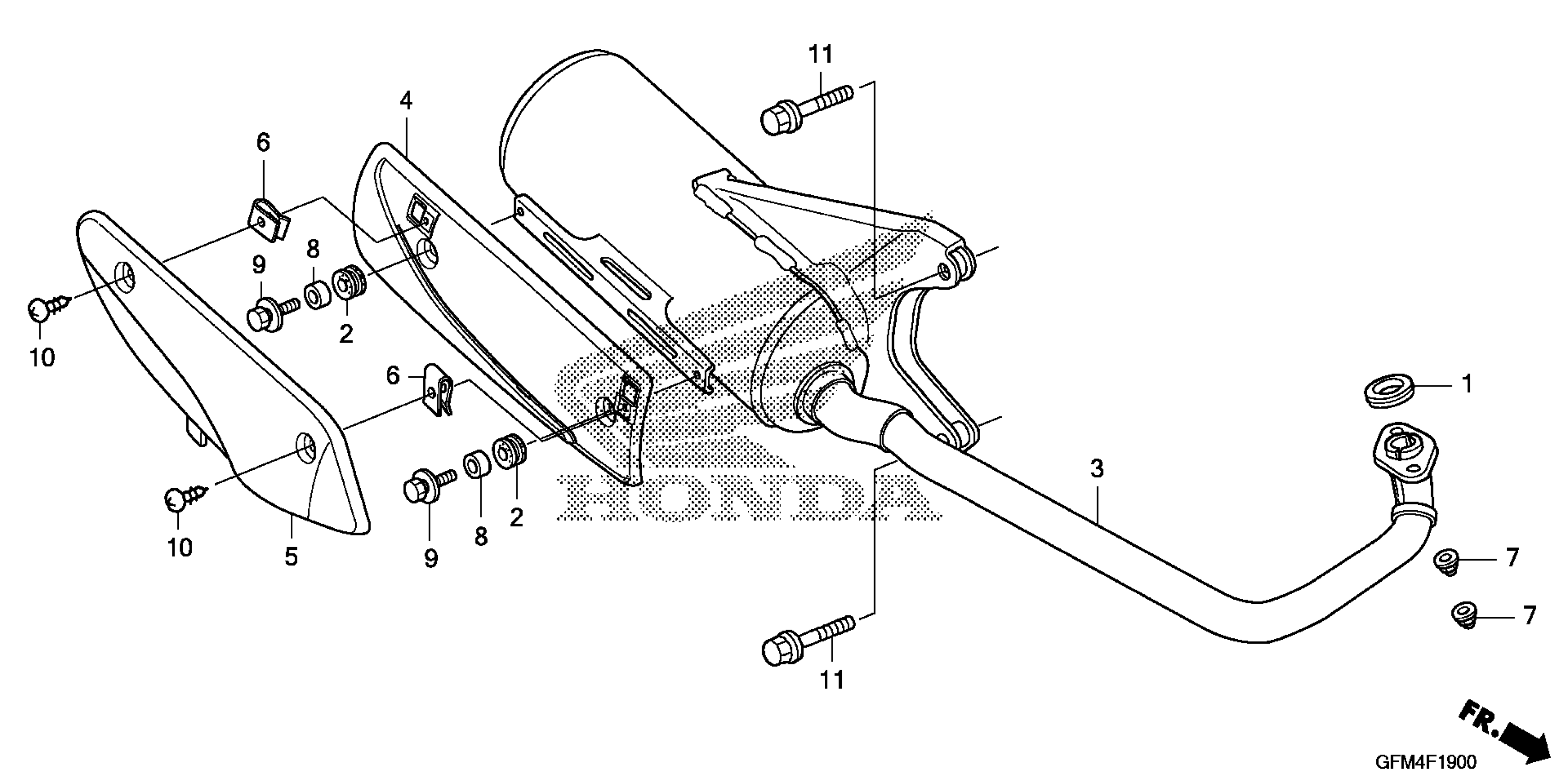

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KVB-900

$0.71

2

RUBBER, PROTECTOR GASKET

18293-GFM-970

$1.44

3

MUFFLER, EX. (COO)

18300-GFM-305

$644.14

4

PROTECTOR A, MUFFLER

18318-GFM-970

$24.23

5

PROTECTOR B, MUFFLER

18319-GFM-970

$18.27

6

NUT, SPRING (5MM)

90302-GFM-970

$2.26

7

NUT, CAP (6MM)

90304-GFM-970

$2.80

8

COLLAR, BODY COVER

90312-GFM-970

$1.48

9

BOLT-WASHER (6X16)

93404-06016-08

$1.48

10

SCREW, TAPPING (5X16)

93903-253J0

$0.83

11

BOLT, FLANGE (10X40)

95801-10040-02

$2.62
