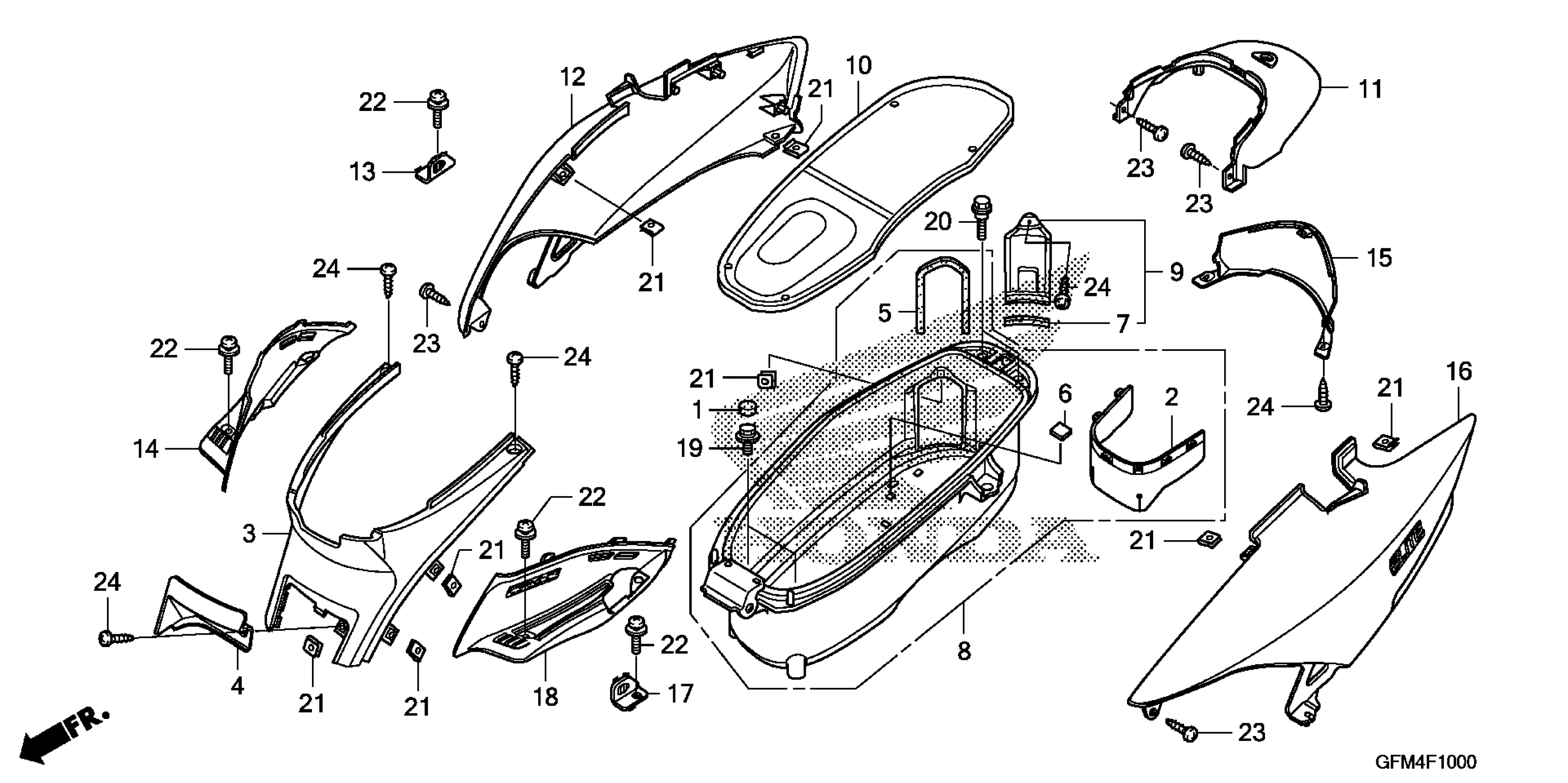

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 LUGGAGE BOX + BODY COVER Diagram

#

Description
Price

1

CAP, FLOOR STEP

64311-GFM-900

$3.26

2

PLATE, RR. FENDER SPLASH GUARD

80104-GFM-900

$19.62

3

COVER, CENTER *NH1* (BLACK)

80151-GFM-900ZA

$83.79

4

LID, PLUG MAINTENANCE *NH1* (BLACK)

80153-GFM-900ZA

$7.23

5

SEAL, LUGGAGE BOX LID

81254-GFM-970

$2.59

6

SEAL, SPLASH GUARD

81255-GFM-970

$1.01

7

SEAL B, LUGGAGE BOX LID

81256-GFM-970

$1.12

8

BOX ASSY., LUGGAGE

81260-GFM-971

$223.03

9

LID SET, LUGGAGE BOX

81270-GFM-970

$16.00

10

MAT, LUGGAGE BOX

81271-GFM-900

$78.38

11

COVER, RR. CENTER *NH1* (BLACK)

83502-GFM-900ZJ

$136.41

11

COVER, RR. CENTER *R264C* (CANDY LUCID RED)

83502-GFM-900ZK

$130.57

12

COVER SET, R. BODY *NH1* (WL) (BLACK)

83505-GFM-A00ZA

$203.91

12

COVER SET, R. BODY *R264C* (WL) (CANDY LUCID RED)

83505-GFM-A00ZB

Unavailable

13

LID, R. CENTER SIDE *NH1* (BLACK)

83521-GFM-900ZA

$6.88

14

COVER SET, R. CENTER SIDE *NH1* (WL) (BLACK)

83525-GFM-970ZA

$112.34

15

COVER SET, RR. COMBINATION LIGHT *NH1* (WL) (BLACK)

83603-GFM-970ZE

$28.74

15

COVER SET, RR. COMBINATION LIGHT *R264C* (WL) (CANDY LUCID RED)

83603-GFM-970ZF

$30.03

16

COVER SET, L. BODY *NH1* (WL) (BLACK)

83605-GFM-A00ZA

$191.34

16

COVER SET, L. BODY *R264C* (WL) (CANDY LUCID RED)

83605-GFM-A00ZB

Unavailable

17

LID, L. CENTER SIDE *NH1* (BLACK)

83621-GFM-900ZA

$6.88

18

COVER SET, L. CENTER SIDE *NH1* (WL) (BLACK)

83625-GFM-970ZA

$112.07

19

BOLT-WASHER (6X12) (BF)

90101-GFM-970

$2.96

20

BOLT, FLANGE (6MM)

90111-162-000

$2.66

21

NUT, SPRING (4MM)

90303-GFM-970

$2.28

22

SCREW-WASHER (5X14)

93891-05014-07

$1.00

23

SCREW, TAPPING (4X12)

93903-34320

$0.90

24

SCREW, TAPPING (4X12)

93903-34380

$2.12
