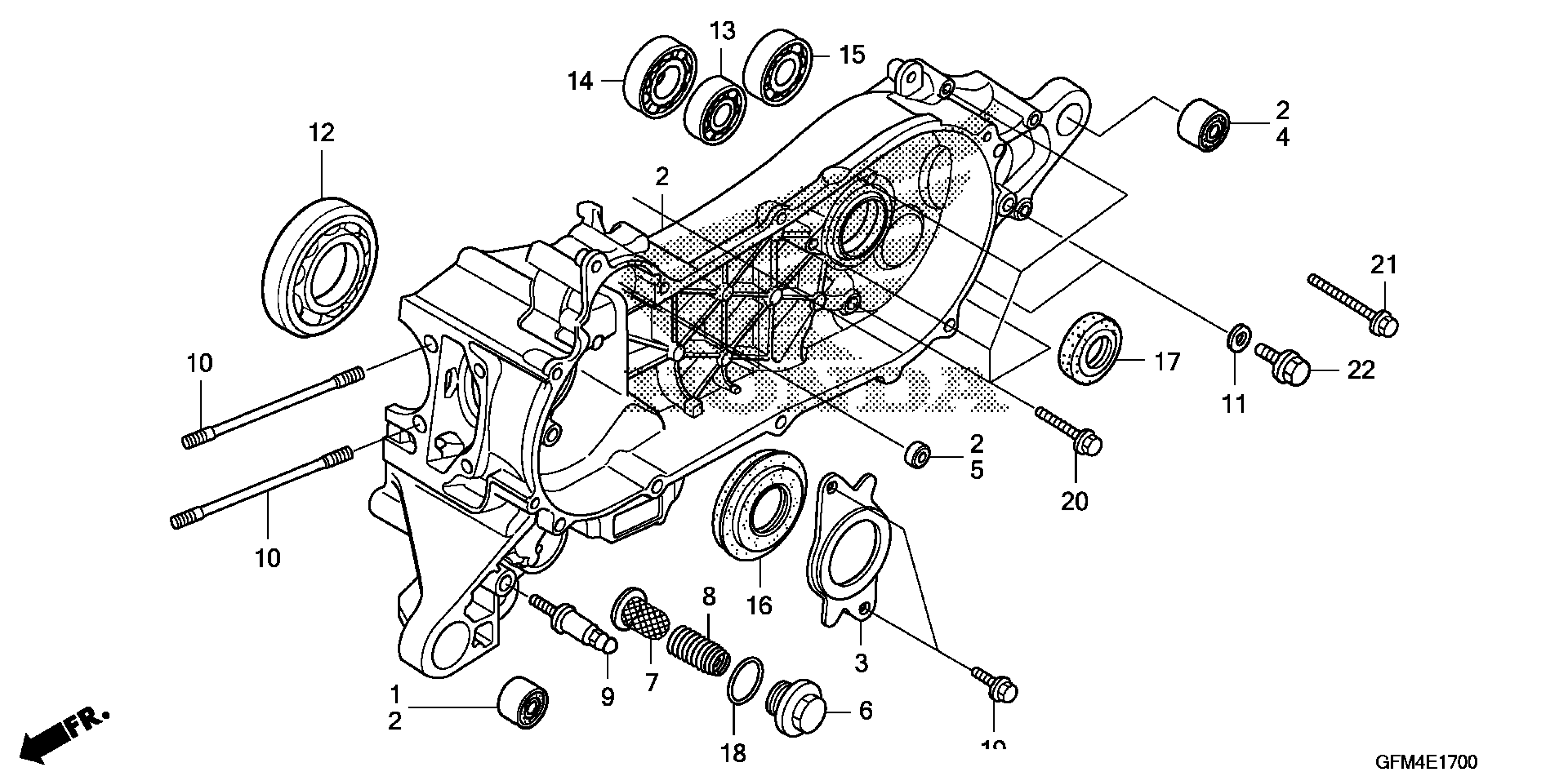

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 LEFT CRANKCASE Diagram

#

Description
Price

1

BUSH, ENGINE HANGER RUBBER This part replaces 11102-GT8-B00.

11102-187-003

$13.69

1

BUSH, ENGINE HANGER RUBBER

11102-187-003

$13.69

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN) This part replaces 11216-GGC-900.

11103-KVB-901

$3.29

2

CRANKCASE, L.

11200-GFM-B20

$261.78

2

CRANKCASE, L.

11200-GFM-970

$299.56

3

PLATE, OIL SEAL STOPPER

11202-GFM-970

$4.78

4

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GFC-770

$4.91

5

BUSH (8X12X6)

11205-GGC-900

$4.84

5

BUSH (8X12X6) This part replaces 11205-GW3-980.

11205-GW3-931

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

6

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

7

SCREEN, OIL FILTER

15421-107-000

$6.02

8

SPRING, OIL FILTER SCREEN

15426-KCW-880

$2.80

9

BOLT, MAIN STAND SPRING

90008-GFM-970

$10.57

10

BOLT B, STUD (7X198.5)

90032-GFM-970

$9.54

11

WASHER, SEALING (8MM)

90474-333-000

$4.15

12

BEARING, RADIAL BALL SPECIAL (6207)

91002-GFM-971

$36.81

13

BEARING, RADIAL BALL (6201) (NTN)

91005-GFM-971

$9.47

14

BEARING, RADIAL BALL (6204) (NTN)

91007-GFM-971

$21.84

15

BEARING, RADIAL BALL (6202) (NTN)

91008-GFM-971

$10.94

16

OIL SEAL (20.8X53X9) This part replaces 91202-GCC-000.

91202-GCC-771

$7.35

16

OIL SEAL (20.8X53X9)

91202-GCC-771

$7.35

17

OIL SEAL (20X32X6)

91202-KJ9-003

$4.54

18

O-RING (30.8MM)

91302-001-020

$3.46

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

20

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

21

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

22

BOLT, FLANGE (8X12)

95701-08012-00

$1.04
