Description

Price

1

DAMPER B, CONNECTOR

16719-GFM-970

$3.51

2

PUMP SET, FUEL (MSDS) This part replaces 16800-GFM-K00.

16800-GFM-K01

$285.25

2

PUMP SET, FUEL (MSDS)

16800-GFM-K01

$285.25

3

TRAY, FUEL

17505-GFM-970

$19.62

4

TANK, FUEL

17510-GFM-K00

$291.70

5

GASKET A, FUEL PUMP

17515-GEV-761

$36.57

6

SEAL, FUEL TANK

17516-GFM-970

$5.62

7

PLATE, FUEL PUMP SETTING

17517-GFM-970

$9.26

8

JOINT, FUEL TUBE

17525-KBN-900

$3.87

9

HOSE ASSY., FUEL FEED

17528-GFM-K00

$157.79

10

CLAMP A, FUEL FEED HOSE

17568-GFM-K00

$3.51

11

CLAMP B, FUEL FEED HOSE

17569-GFM-K00

$5.02

12

CAP, FUEL FILLER

17620-GFM-A01

$96.54

13

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

$7.79

14

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

15

CLIP, HARNESS This part replaces 90659-MBC-680.

90659-734-K51

$2.13

15

CLIP, HARNESS

90659-734-K51

$2.13

16

NUT, FLANGE (6MM)

94050-06080

$1.49

17

BULK HOSE, VINYL (8X12X8000) (8X12X270)

95003-23008-60M

Unavailable

18

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

19

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

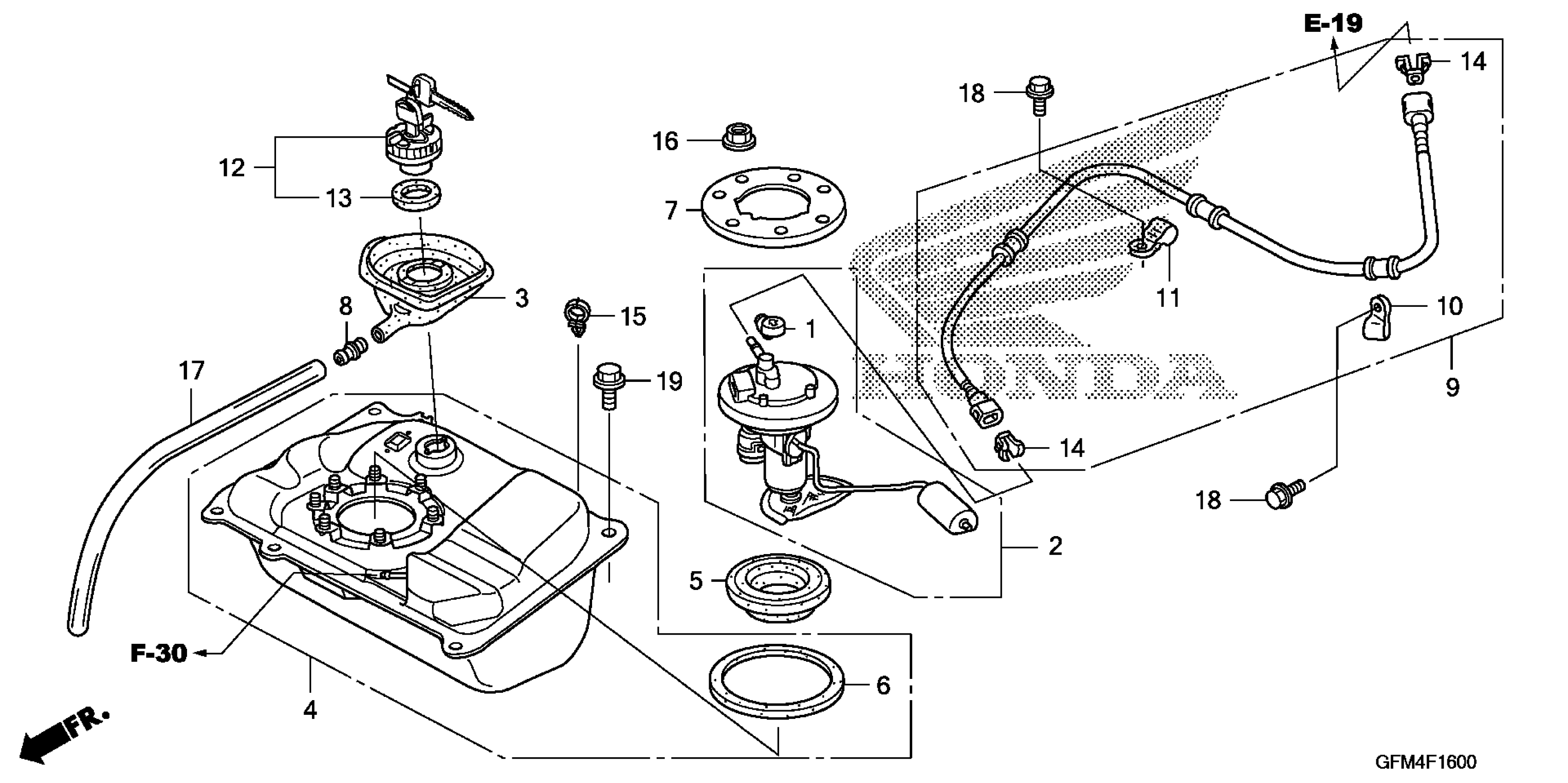

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 FUEL TANK Diagram
