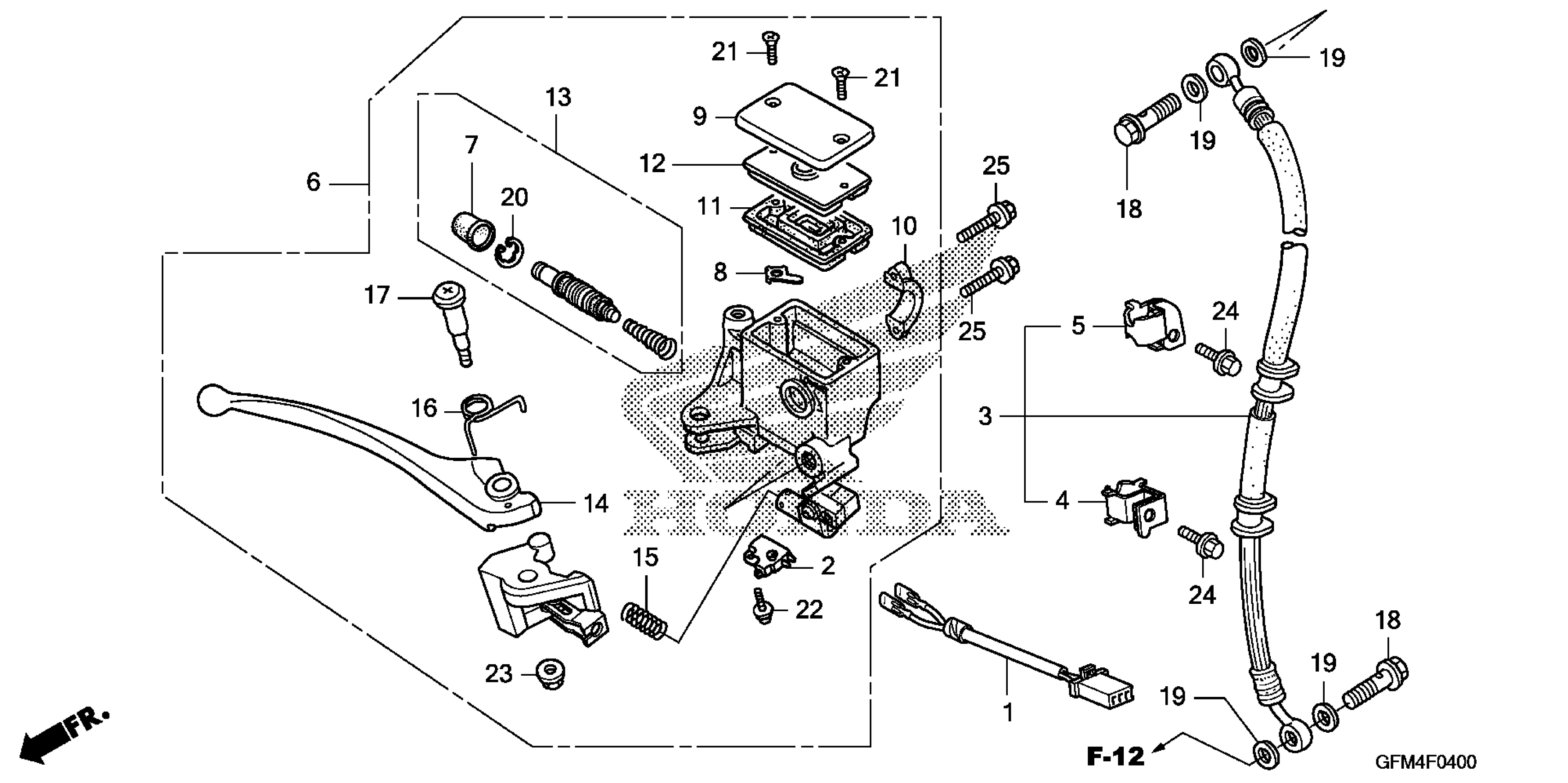

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SUB-WIRE, FR. STOP SWITCH

32102-GFM-890

$6.04

2

SWITCH ASSY., FR. STOP

35340-MA5-671

$22.48

3

HOSE, FR. BRAKE

45125-GFM-A01

Unavailable

4

CLAMP A, BRAKE HOSE

45127-GFM-900

$4.85

5

CLAMP B, BRAKE HOSE

45128-GFM-970

$4.12

6

MASTER CYLINDER ASSY., FR. BRAKE (COO)

45500-GFM-305

Unavailable

7

BOOT

45504-410-003

$11.17

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

DIAPHRAGM

45520-MG7-006

$9.73

12

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

13

MASTER CYLINDER SET

45530-471-831

$36.42

14

LEVER, R. HANDLEBAR (COO)

53175-GFM-305

$44.91

15

SPRING, RETURN

53198-GBL-870

$2.21

16

SPRING, BRAKE LEVER RETURN

53199-GCS-010

$2.35

17

BOLT, HANDLE LEVER

90114-GBL-871

$2.00

17

BOLT, HANDLE LEVER

90114-GFM-691

Unavailable

18

BOLT, OIL (10X22)

90145-GW3-981

Unavailable

19

WASHER, OIL BOLT

90545-KCW-880

$1.91

20

CIRCLIP

90651-MA5-671

$2.38

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

22

SCREW-WASHER (4X12)

93893-04012-07

$1.32

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

23

NUT, FLANGE (6MM)

94050-06000

$0.60

24

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
