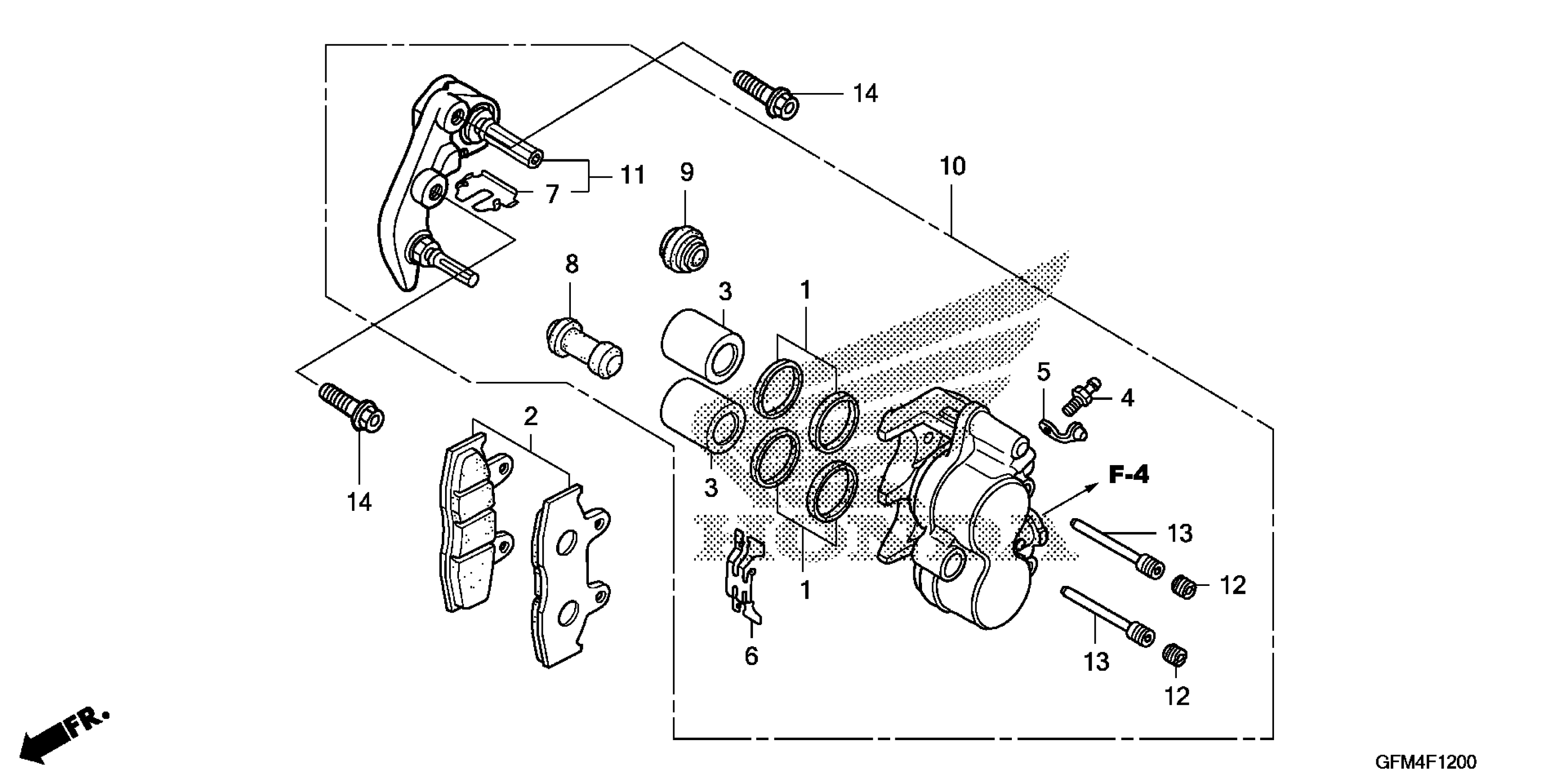

Honda NHX110A (10) ELITE 110, CHN, VIN# LWBJF190-A1000001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, FR.

06455-GCS-026

$49.56

PAD SET, FR. This part replaces 06455-GCS-405.

06455-GCS-026

$49.56

PISTON (27X31)

43107-MAJ-G41

$39.18

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-KCW-861

$11.75

RETAINER

45112-MG3-006

$7.27

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-KTZ-D01

Unavailable

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KPM-871

$78.72

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-KA3-732

$11.52

BOLT, FLANGE (8X35) This part replaces 90131-GFM-970.

90131-MY6-670

$2.61

BOLT, FLANGE (8X35)

90131-MY6-670

$2.61
